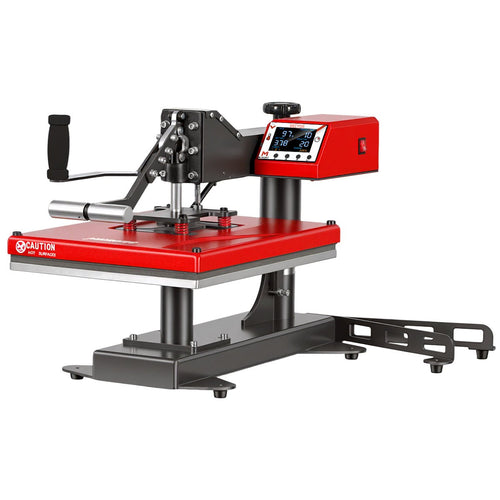

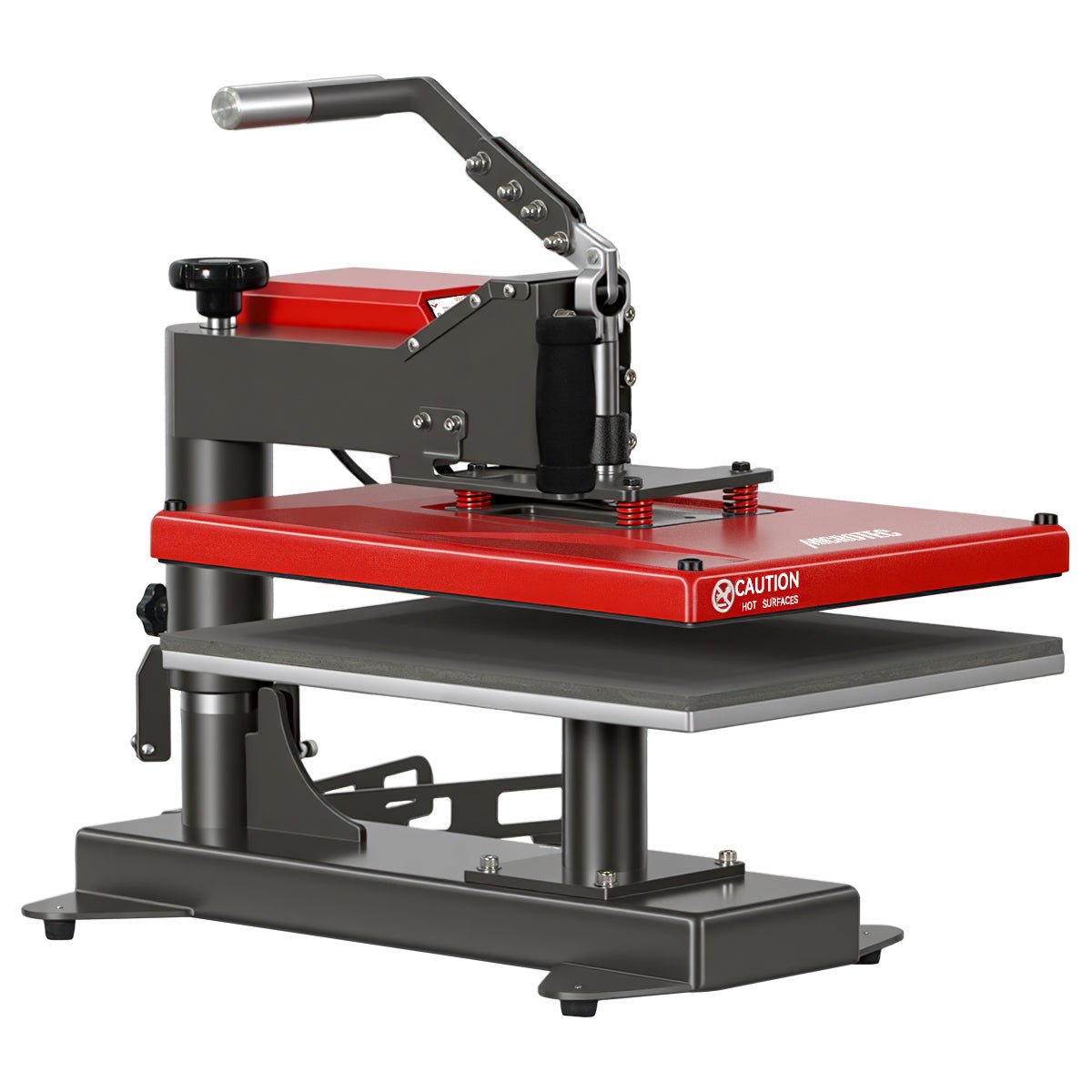

Vector 16" x 20" Swing Away Heat Press

Name: Vector 16" x 20" Swing Away Heat Press
Brand: MICROTEC USA
Price: 959.0 USD
Availability: InStock

MICROTEC USA Product Number: V1620-SW

$959.00 USD

Quantity: (In cart: 0)

Increments of 1 Minimum of 1 Maximum of

Shipping weight: 138.6 lb — freight delivery options apply.

Vector 16" x 20" Swing Away Heat Press

$959.00 USD

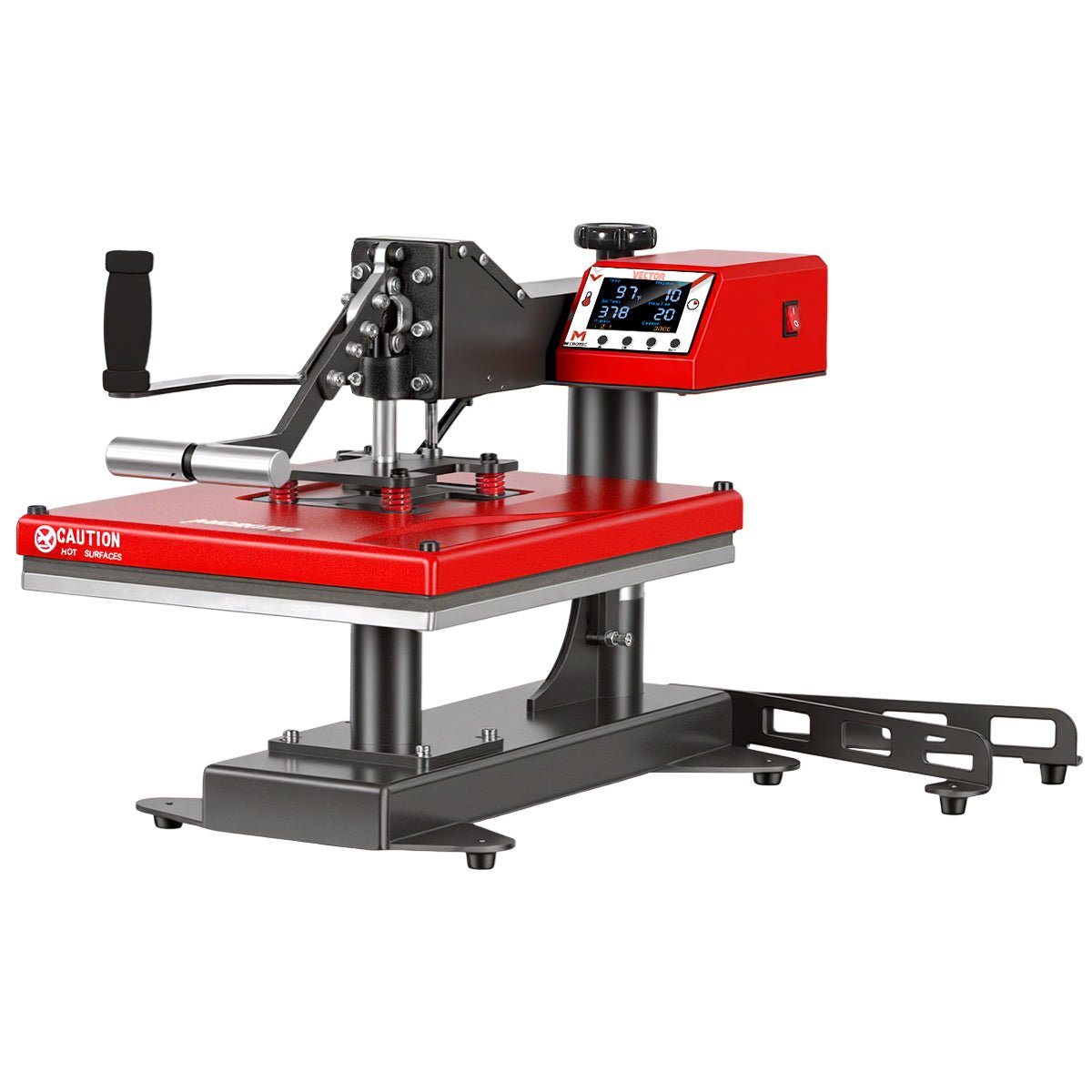

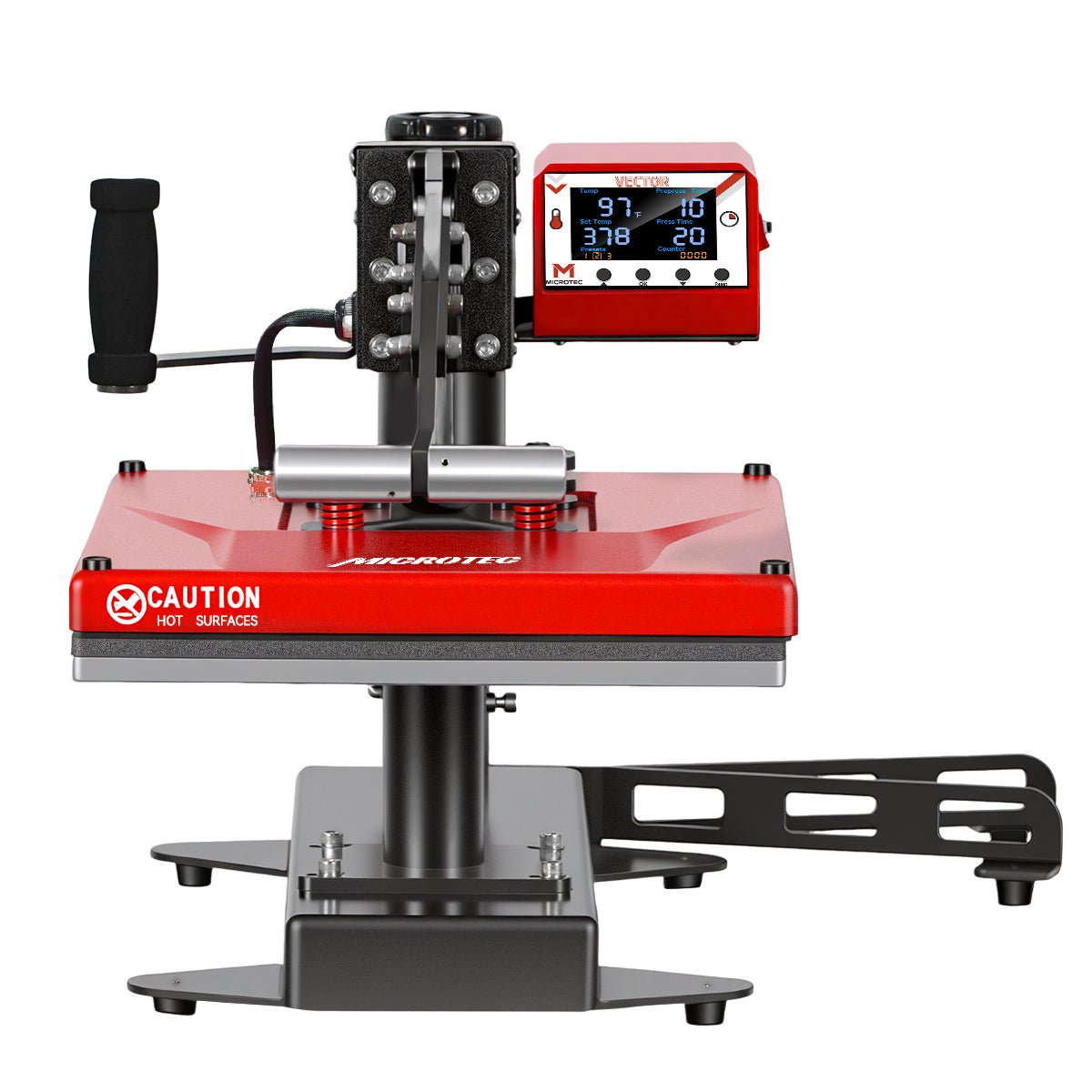

The VECTOR Swing-Away Heat Press is built for users who need more control, more versatility, and more reliable performance. Designed for business owners, decorators, and serious makers, it combines user-friendly operation with solid construction and professional results.

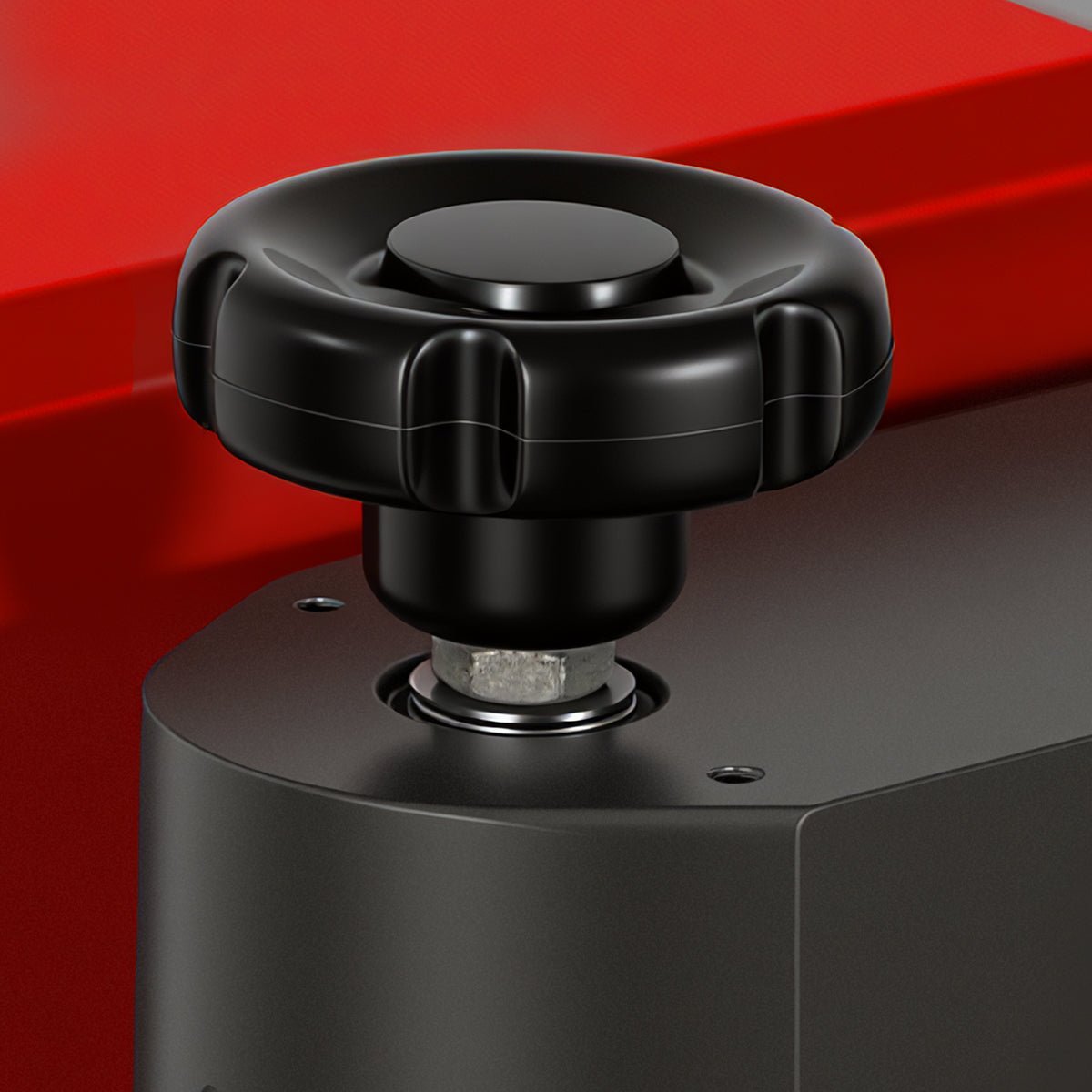

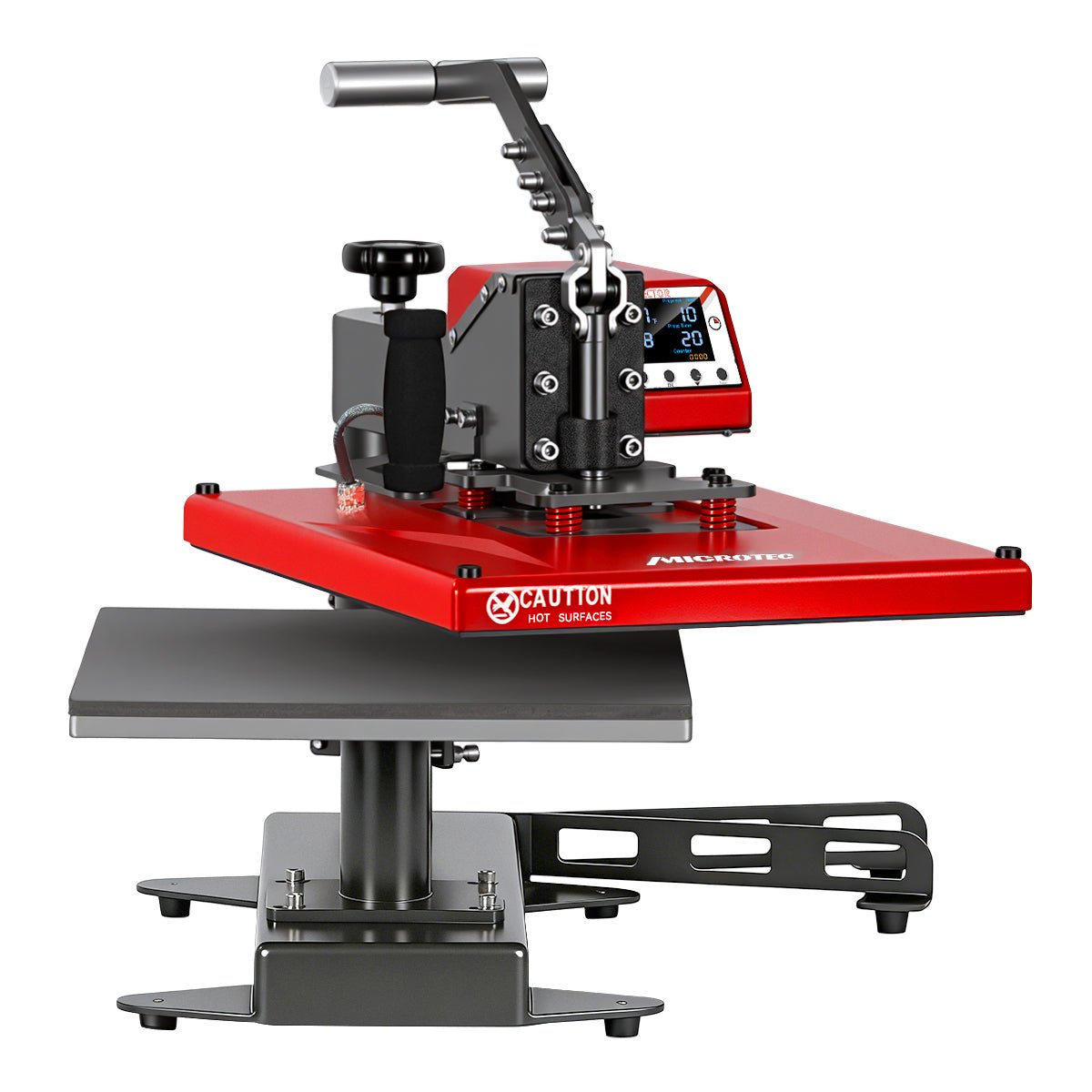

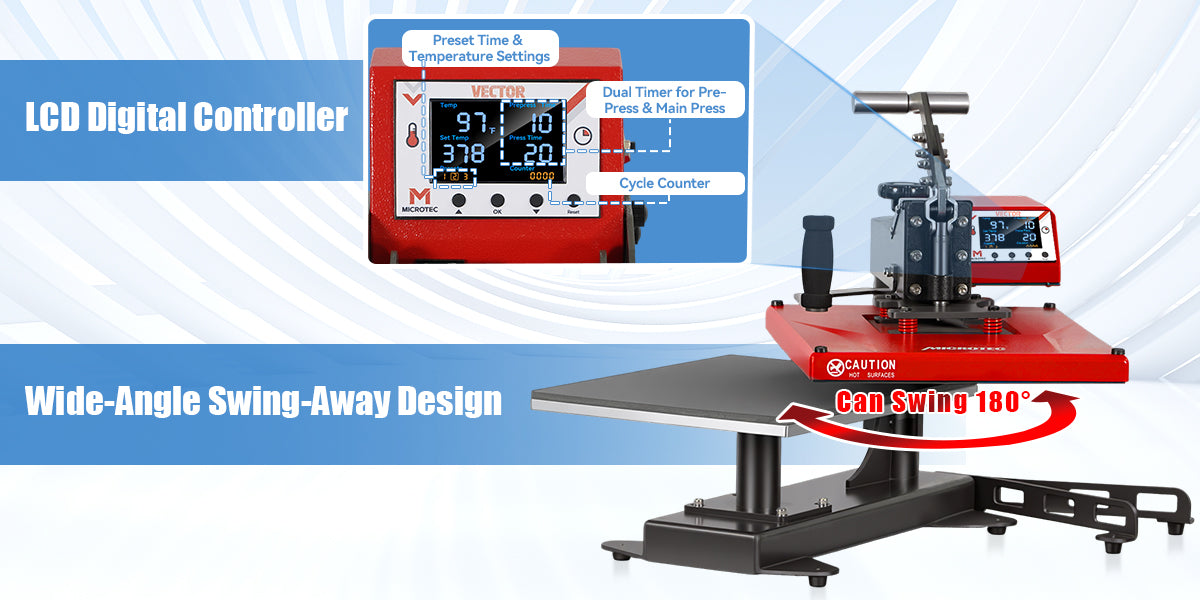

Its swing-away design creates a safer, more open workspace by moving the upper platen completely away from the loading area. This makes alignment easier and gives the platen the ability to hover directly above the garment, making the machine ideal not only for standard heat transfers, but also for screen print curing and DTG finishing. The adjustable pressure knob allows precise height adjustment for different materials and applications.

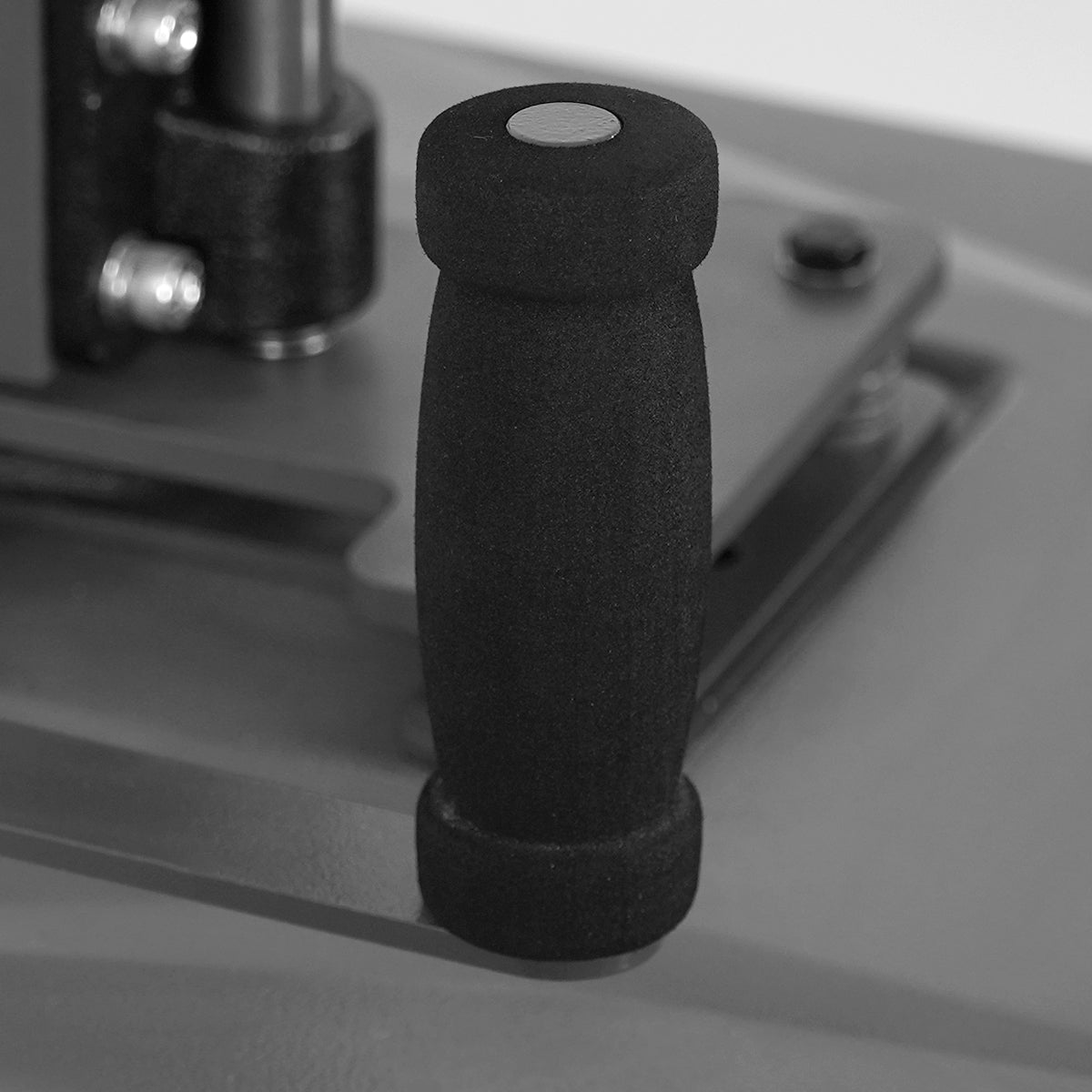

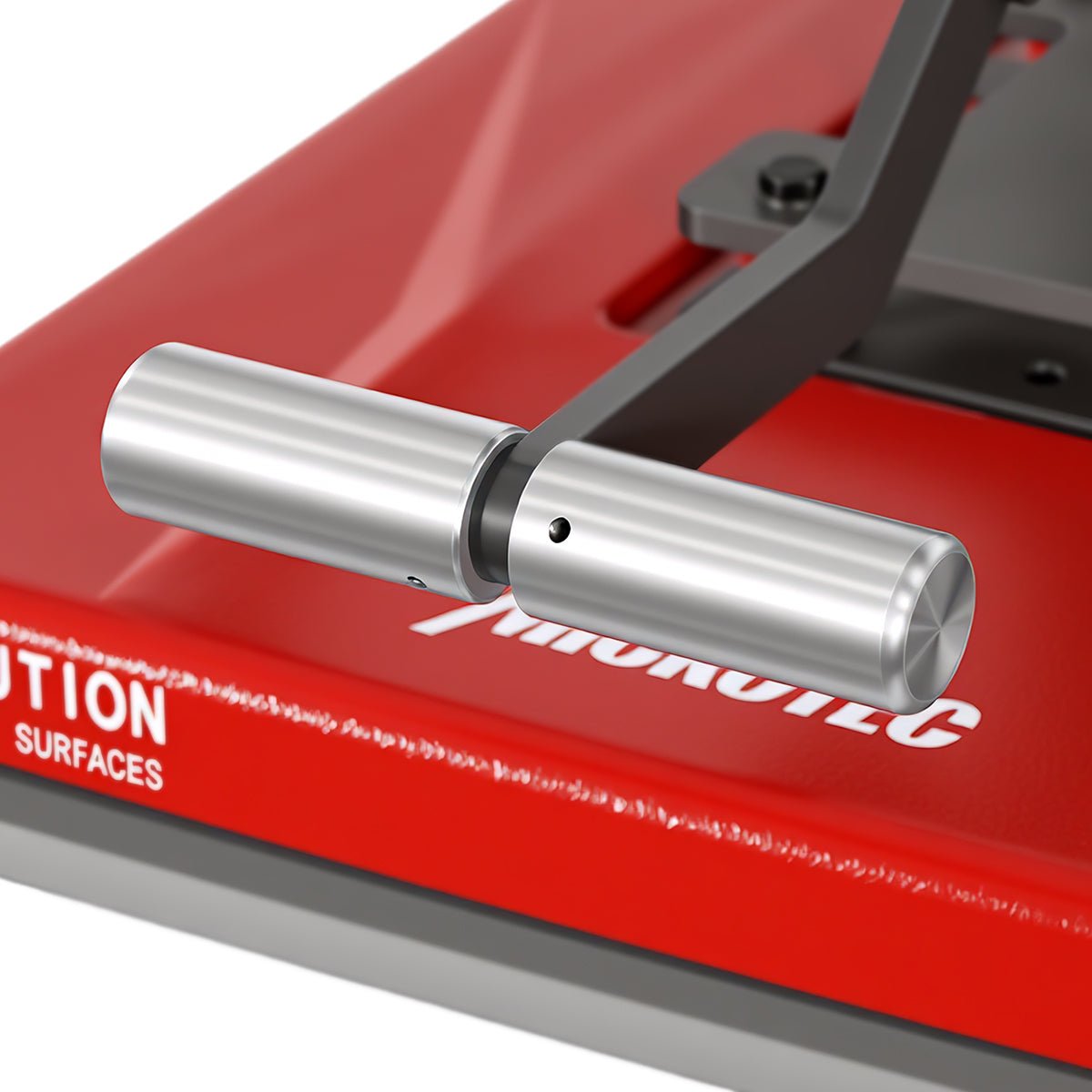

The machine also features an exclusive secondary leverage handle for smoother, safer operation, along with true vertical pressure and a 4-point spring-mounted heating element for even contact on thicker, harder, and more rigid substrates.

That makes the V1620-SW an excellent choice for hard goods sublimation, including ornaments, plaques, name plates, license plates, and other flat rigid items where clean, even pressure is essential.

Exclusive Offer

Talk to our team of experts to get 1-on-1 personalized information and have your questions answered in real time!

Schedule A Call

Specifications

Workstation Count	Single
Platen Size	15.7" x 19.7"
Production Capacity	Up To 120 Units/hour*
Temperature Range	0-437ºF
Time Range	0-999 Seconds
Shipping Size	35" x 20.7" x 24.2"
Air Requirements (CFM)	0.0 CFM
Power Consumption	1700w
Voltage	120v
Amps	14.2 Amps
Machine Dimensions	27.5" x 16.5" x 22"
Method of Operation	Manual & Swing-Away
Machine Line	Vector
Shipping Weight	138.6 lb
Net Weight	123 lb
Color	Red and Gray

* Calculated using DTF film

Download product manual for Vector 16" x 20" Swing Away Heat Press

PDF document

Vector 16" x 20" Swing Away Heat Press

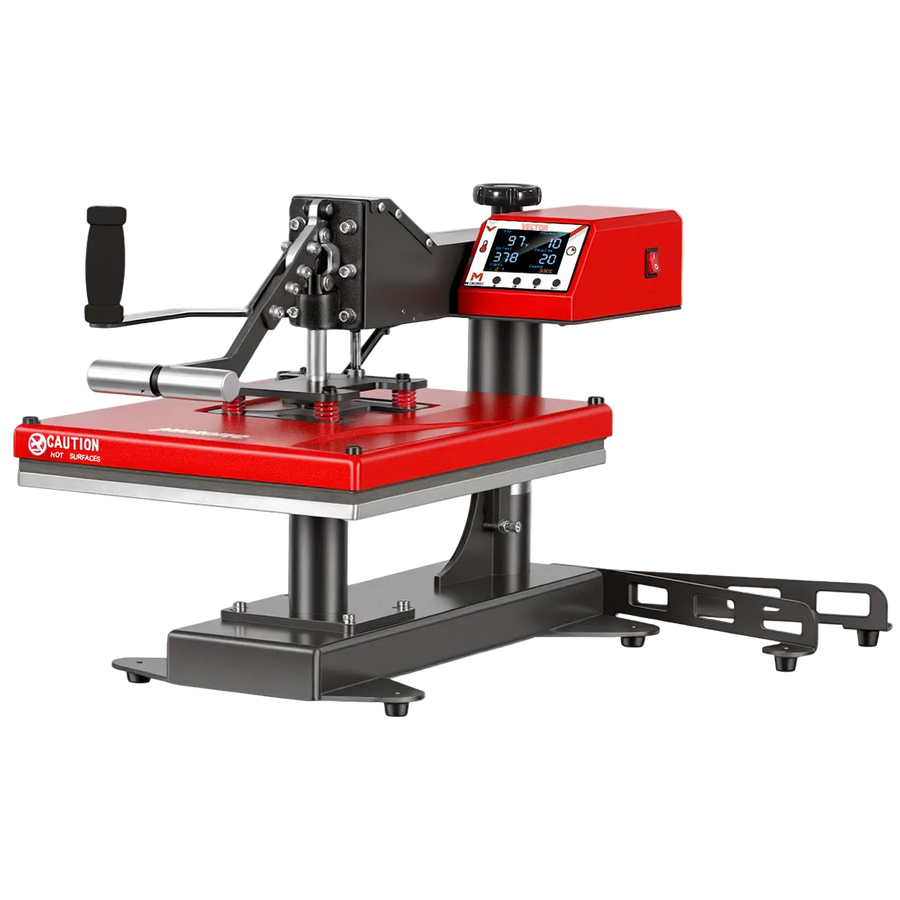

Single Workstation Heat Press

MICROTEC USA

0-437ºFMax Temperature
Manual & Swing-AwayOperation
Up to 120Units an Hour

Buy Vector 16" x 20" Swing Away Heat Press

Calculate Your Return on Investment

Vector 16" x 20" Swing Away Heat Press

Input Parameters

Number of Presses

Items to Produce

Item Sale Price ($)

Cost of Goods ($)

Labor Cost ($/hr)

Work Hours per Day

ROI Analysis

Total Revenue

$0

Total Costs

$0

Days to Produce

0

Hours to Produce

0

Net Profit

$0

Profit Margin

0%

Time to ROI

0 Days

Daily Profit After ROI

$0

Key Features

Built for Years of Daily Use：A reinforced structural design gives the press the strength and stability needed for long-term production use.

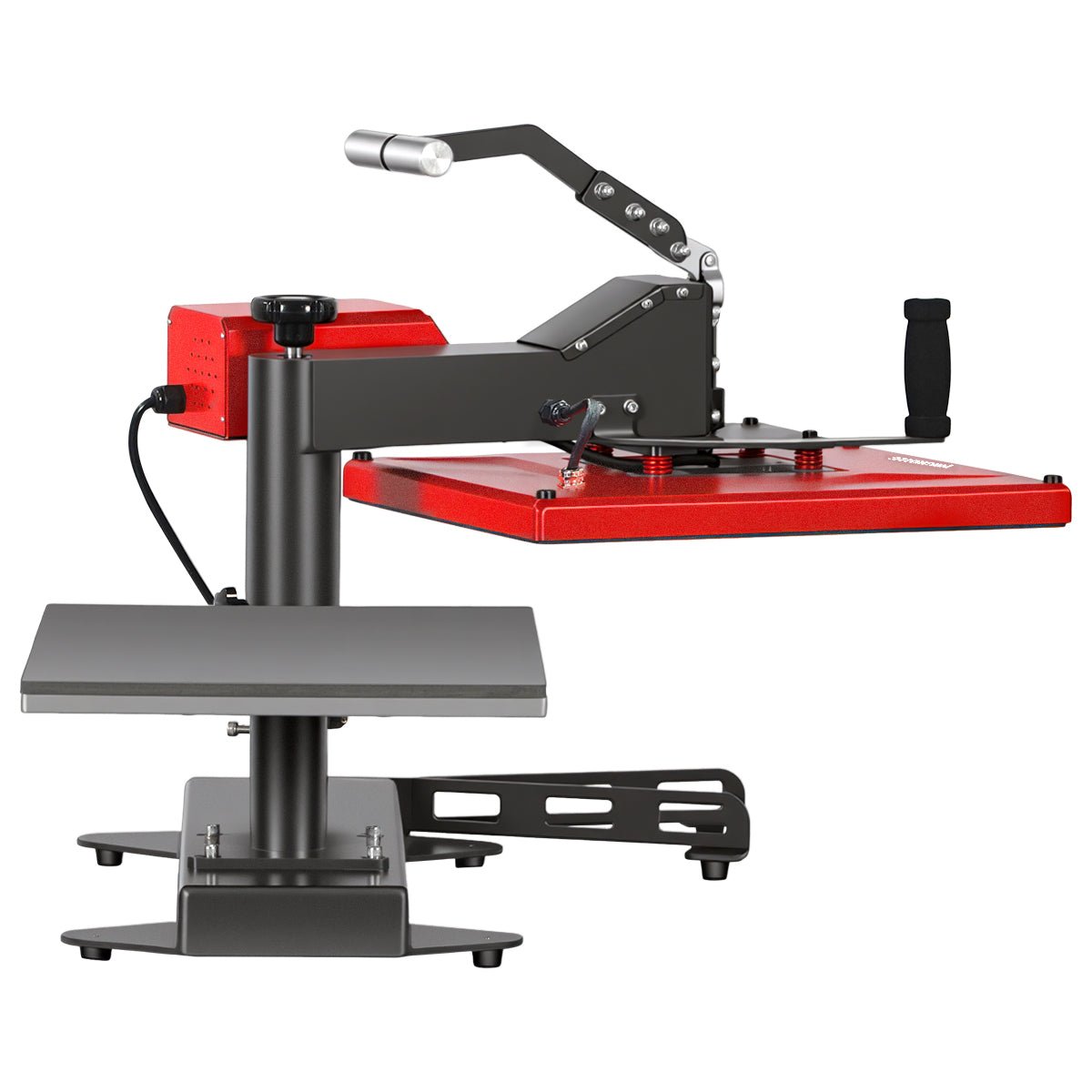

Over 100° Swing-Away Opening for Safer Loading：The wide swing-away design opens more than 100°, giving you extra room to place and align items safely without working directly under the heated platen.

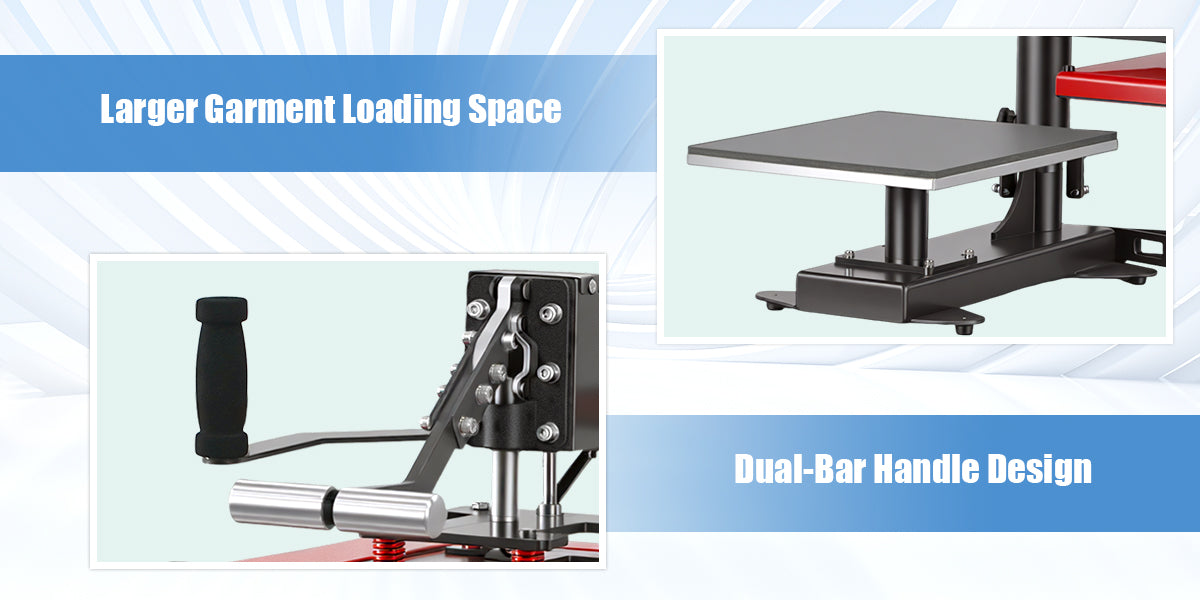

More Garment Clearance for Better Alignment：The expanded threadable workspace gives you more room to position garments and align DTF transfers accurately before pressing.

Vertical Pressing Motion for More Stable Pressure：The straight up-and-down platen movement applies pressure more evenly, making it ideal for thicker substrates such as wood, ceramic tiles, crystal, and other rigid materials.

Lifetime technical support from Microtec USA

3 Year warranty on the heating plate
