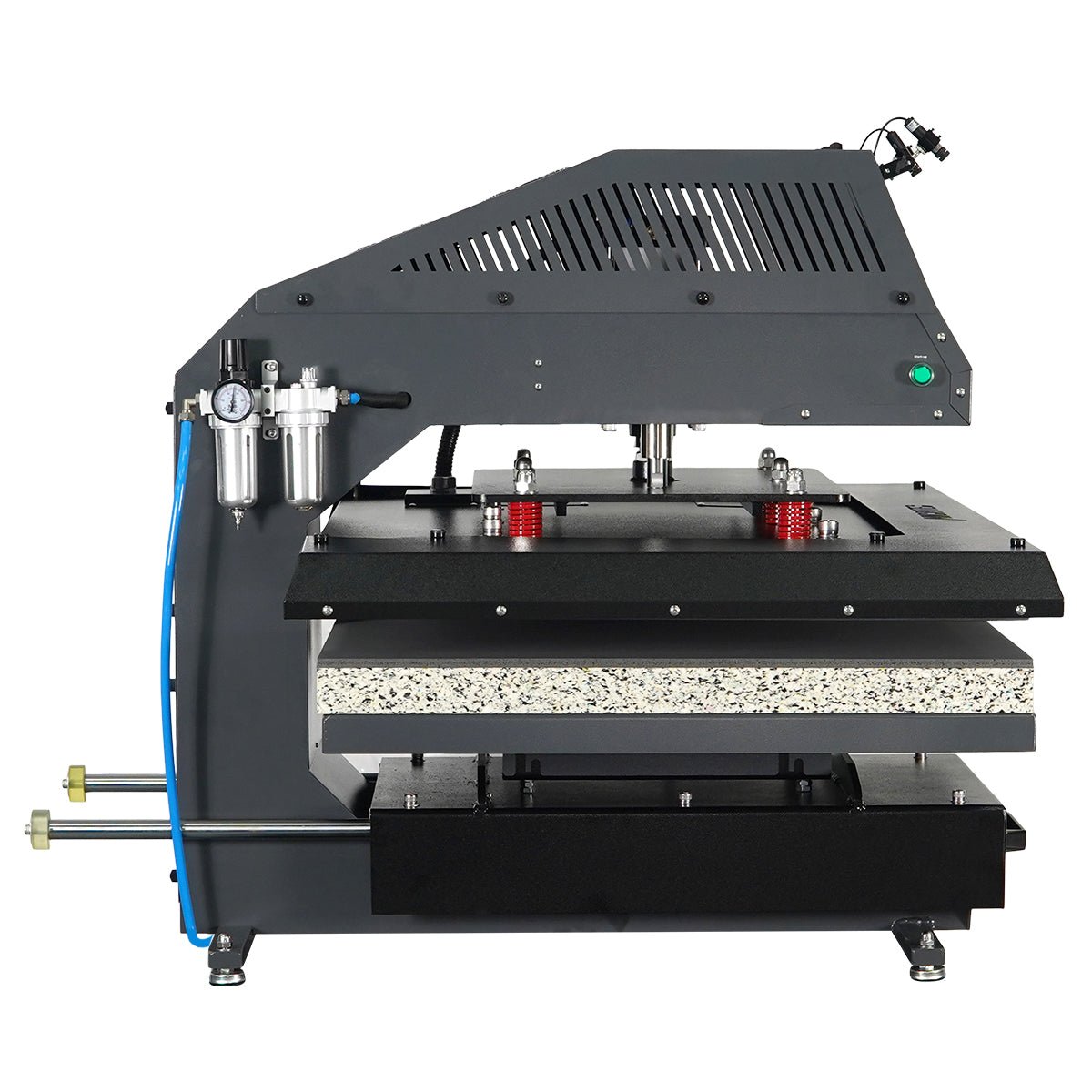

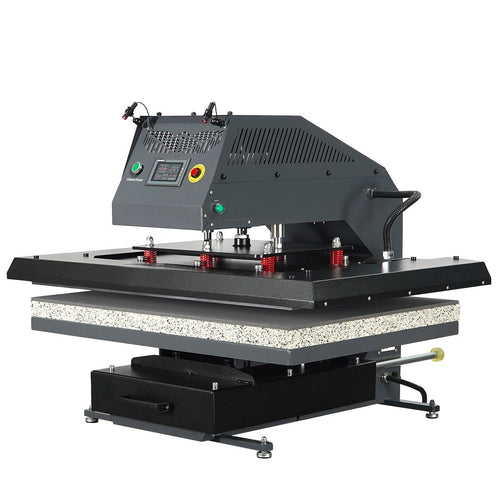

ATLAS ULTRA 32" x 43" Pneumatic Slide Out Heat Press

Name: ATLAS ULTRA 32" x 43" Pneumatic Slide Out Heat Press
Brand: MICROTEC USA
SKU: AT43-APS
Price: 7799.0 USD
Availability: InStock

MICROTEC USA Product Number: AT43-APS

$7,799.00 USD

Quantity: (In cart: 0)

Increments of 1 Minimum of 1 Maximum of

Description:

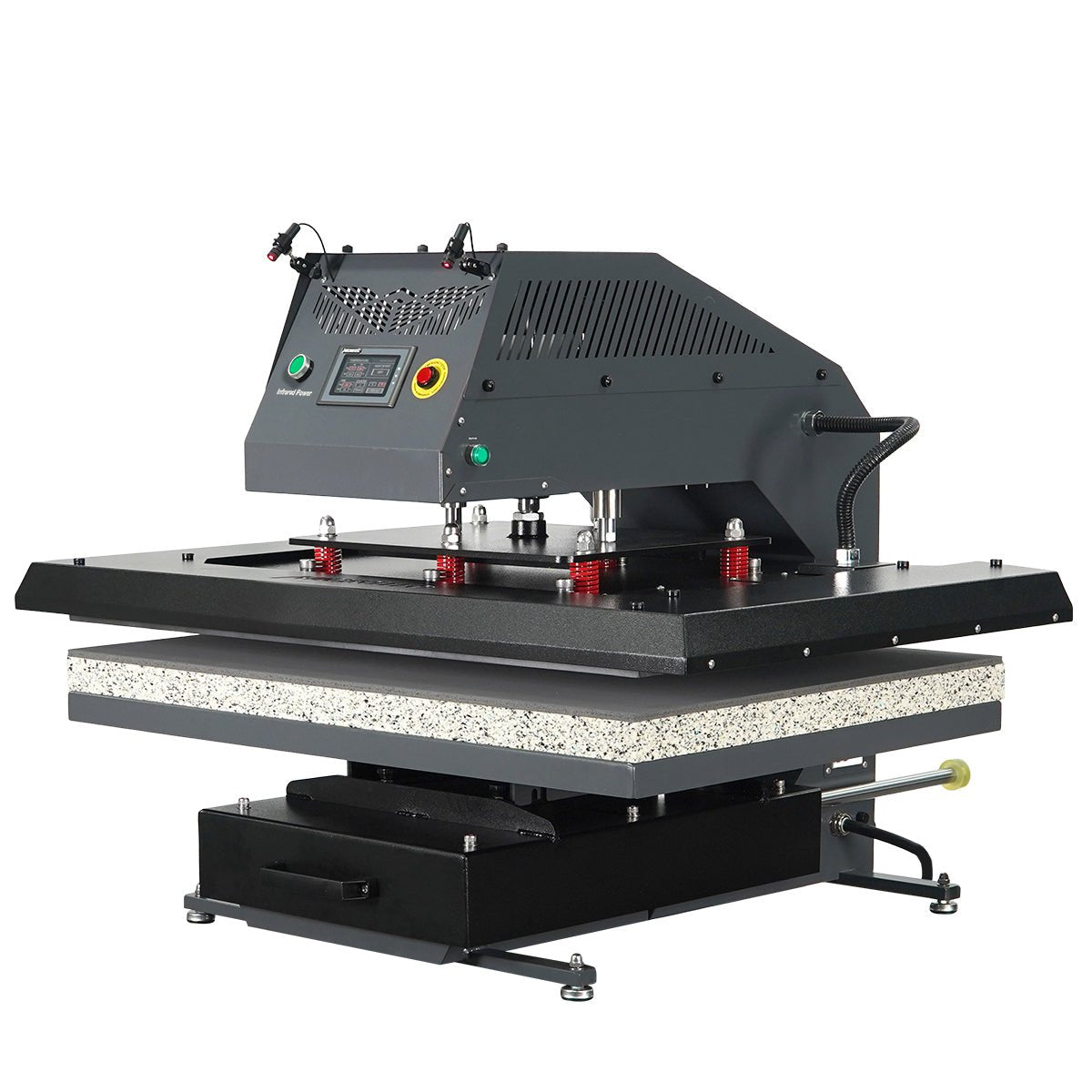

The ATLAS Series Pneumatic Large Heat Press (Model No. AT43-APS) is a premium high-pressure heat press machine from Microtec, designed to deliver exceptional results in large-scale production environments. Known for its efficiency, versatility, and user-friendly design, this heat press combines powerful pressure, advanced automation, and reliable performance at an attractive price point.

The AT43-APS is built for large-format and high-precision transfer work. With a 31.5" x 43.3" work area, it is ideal for flags, bed linens, textile dividers, rigid panels, and especially for high-precision aluminum panel transfer applications.

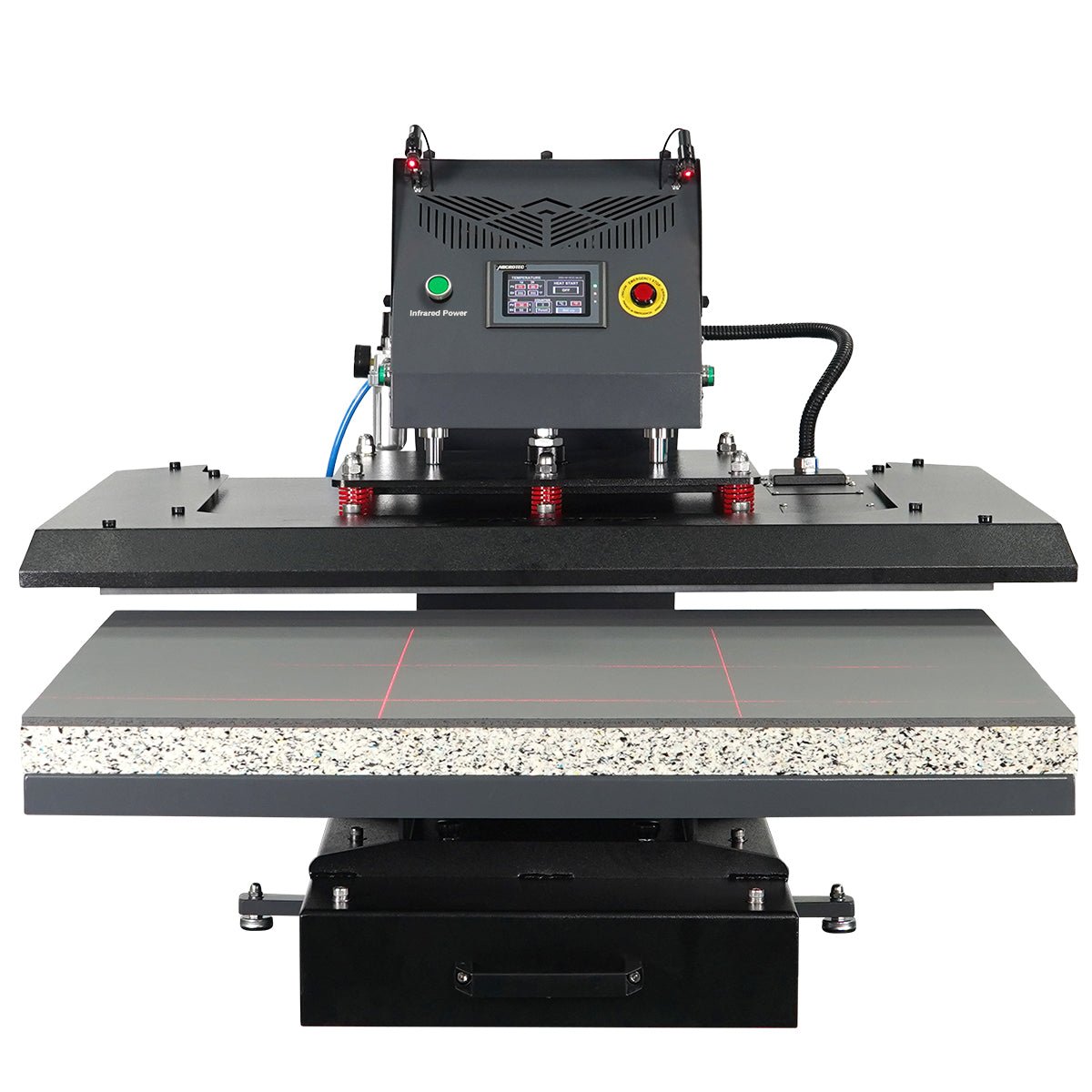

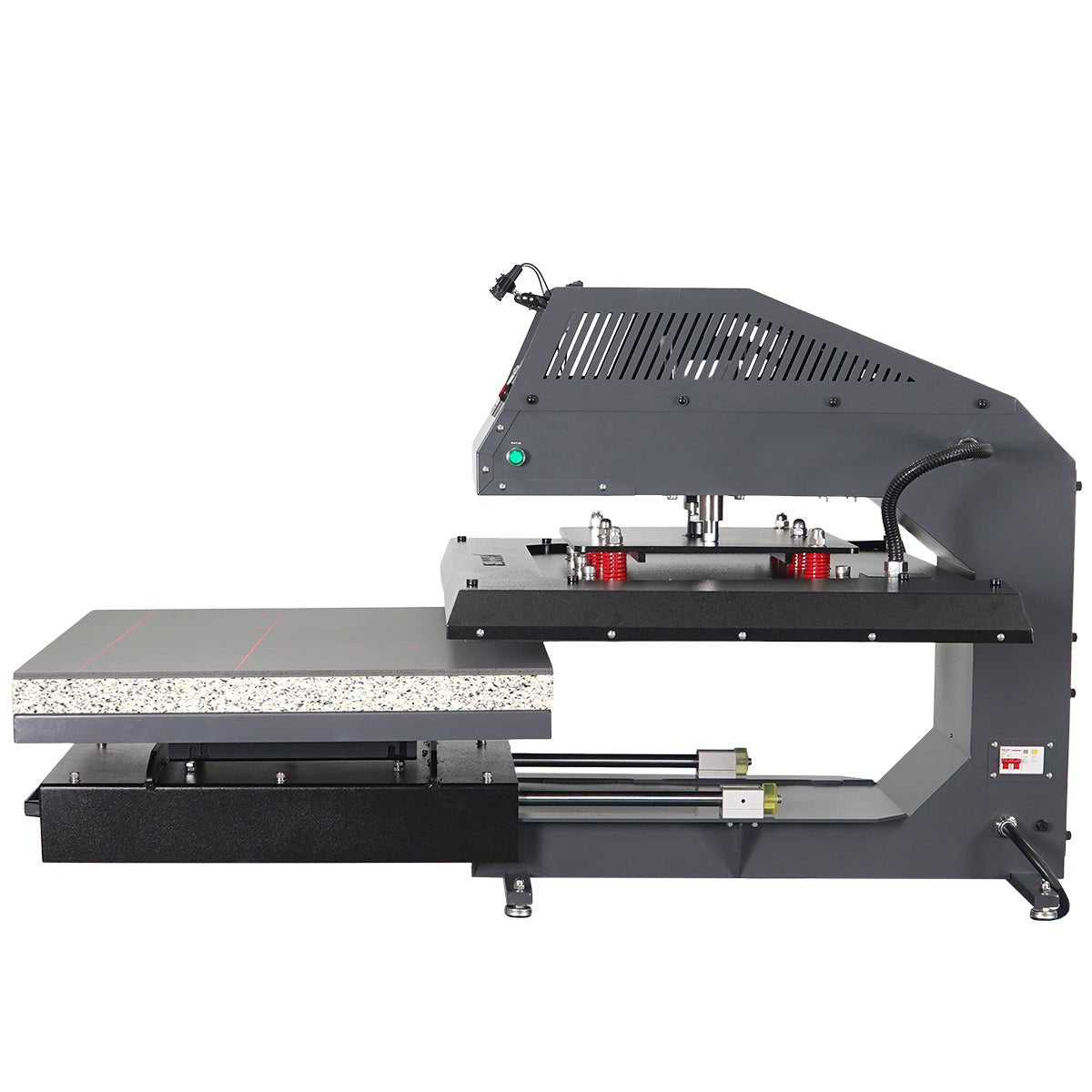

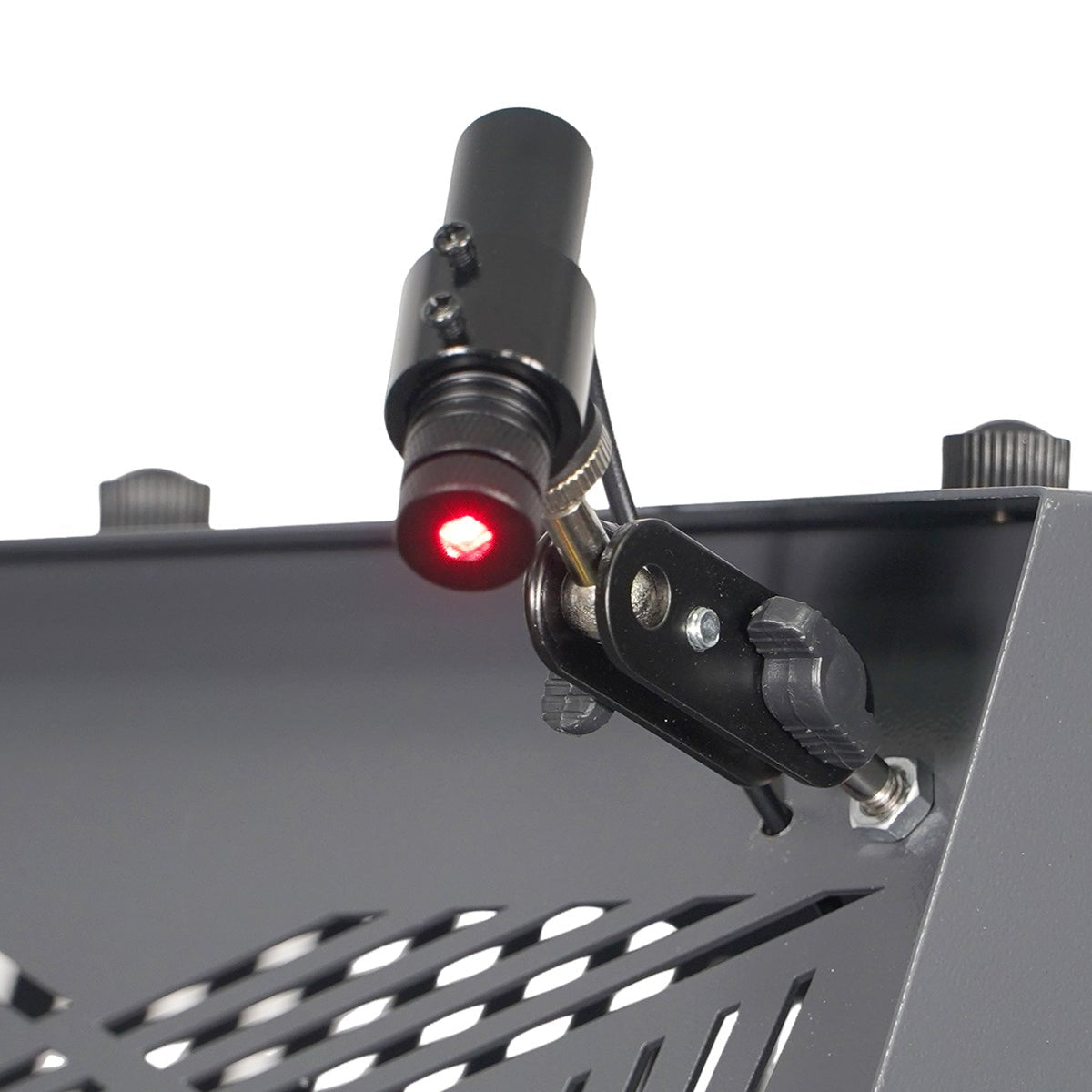

Its drawer-style lower platen makes loading and positioning easier, while the pneumatic system delivers smooth, stable, and even pressure across the entire surface for clean, repeatable results.ATLAS is equipped with laser positioning, helping operators place garments more precisely and achieve more consistent alignment during setup

The touchscreen PLC control system provides more precise temperature control and easier operation. In addition, the exclusive replaceable heating tube design allows simple and fast maintenance when service is needed, reducing downtime.

With direct vertical pressure and 5.8 KW heating capacity, the AT43-APS is a reliable solution for demanding professional transfer applications.

ATLAS ULTRA 32" x 43" Pneumatic Slide Out Heat Press

$7,799.00 USD

Exclusive Offer

Talk to our team of experts to get 1-on-1 personalized information and have your questions answered in real time!

Schedule A Call

Specifications

Workstation Count	1
Platen Size	31.5" x 43.3"
Production Capacity	Up To 120 Units/hour*
Temperature Range	0-450°F
Time Range	0-999 Seconds
Shipping Size	54" X 59.5" X 50"
Air Requirements (CFM)	4.2 CFM
Power Consumption	5.8KW
Voltage	220v 1 Phase
Amps	26 Amps
Machine Dimensions	50" x 48" x 40"
Method of Operation	Fully Automatic (Pneumatic)
Machine Line	Atlas
Shipping Weight	1086 lb
Net Weight	847 lb
Color	Gray and Black

* Calculated using DTF film

ATLAS ULTRA 32" x 43" Pneumatic Slide Out Heat Press

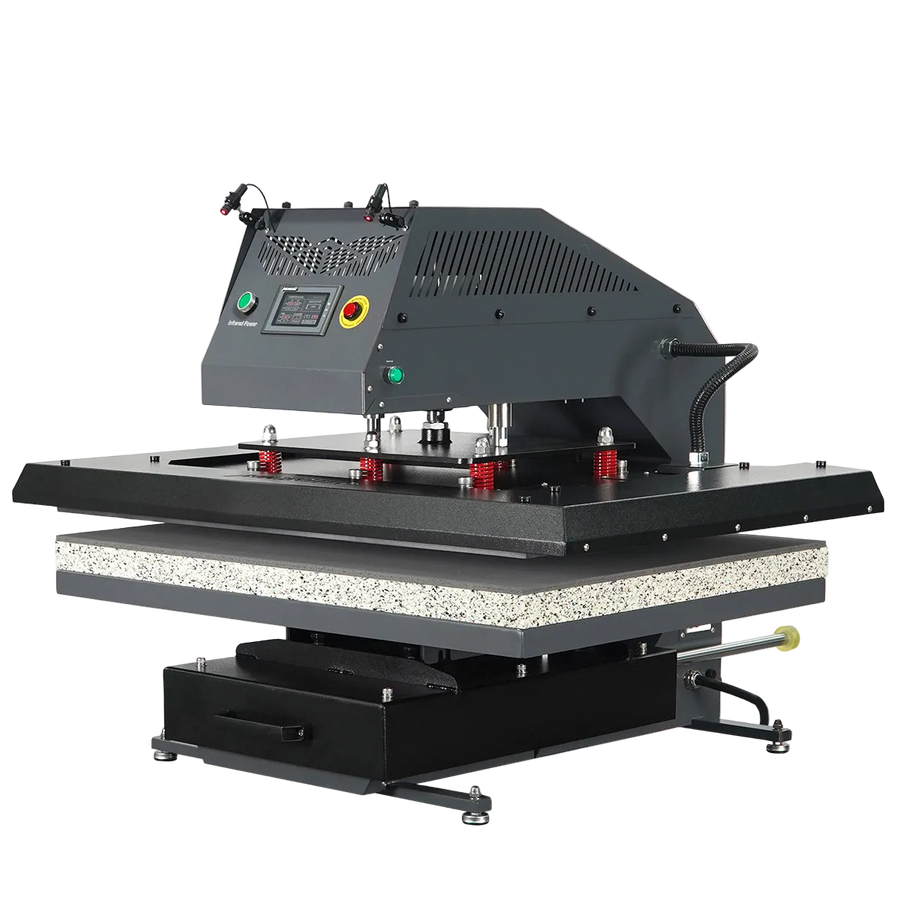

1 Workstation Heat Press

MICROTEC USA

Buy ATLAS ULTRA 32" x 43" Pneumatic Slide Out Heat Press

0-450°F

Max Temperature

Fully Automatic (Pneumatic)

Operation

Up to 120

Units an Hour

Calculate Your Return on Investment

ATLAS ULTRA 32" x 43" Pneumatic Slide Out Heat Press

Input Parameters

Number of Presses

Items to Produce

Item Sale Price ($)

Cost of Goods ($)

Labor Cost ($/hr)

Work Hours per Day

ROI Analysis

Total Revenue

$0

Total Costs

$0

Days to Produce

0

Hours to Produce

0

Net Profit

$0

Profit Margin

0%

Time to ROI

0 Days

Daily Profit After ROI

$0

Features

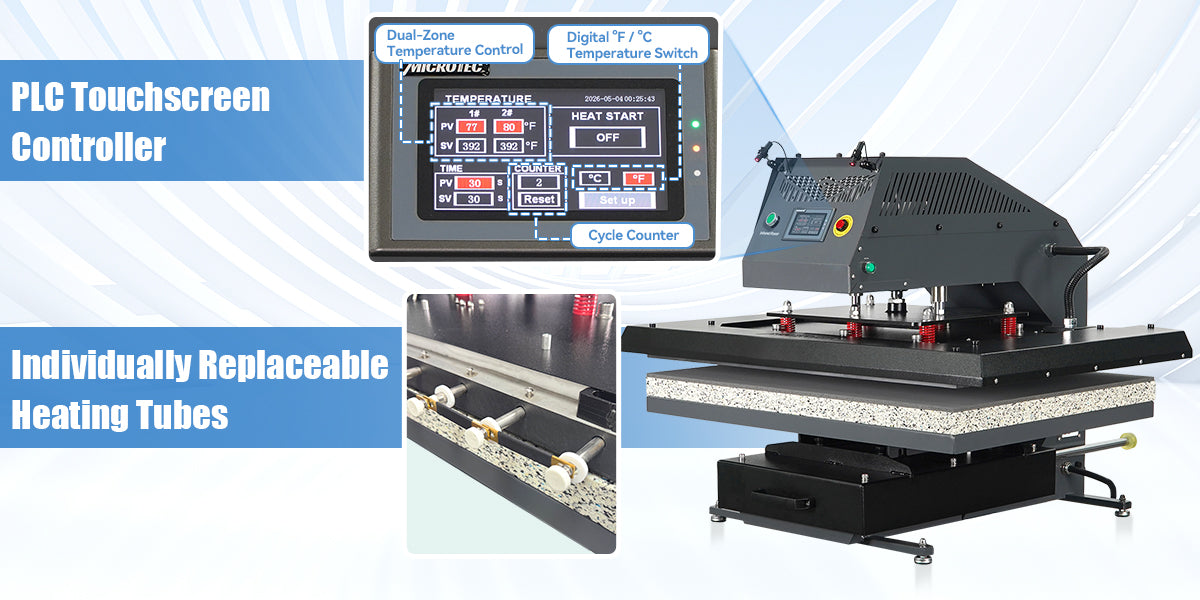

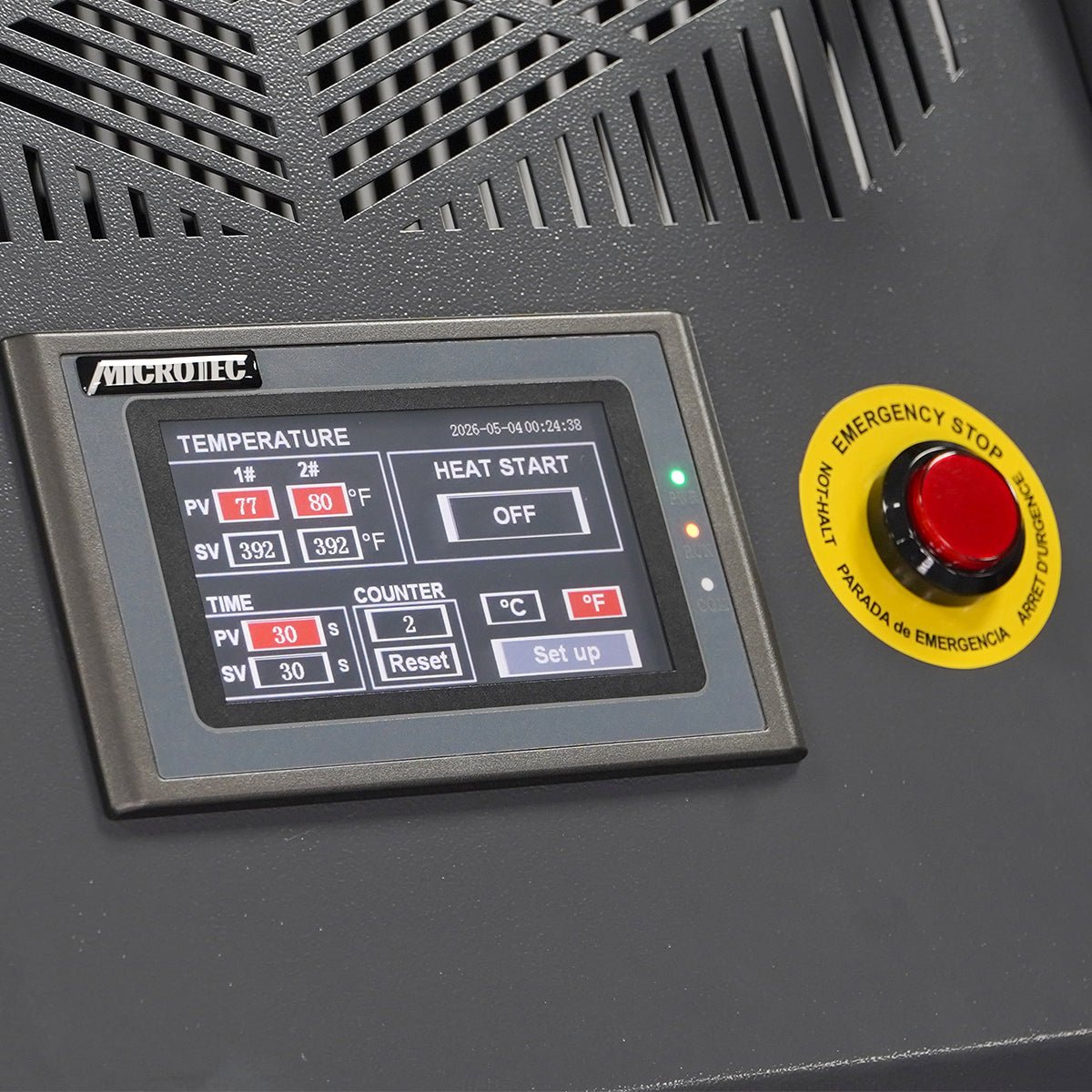

PLC Touchscreen Controller with Dual-Zone Temperature Control：The advanced PLC touchscreen controller allows independent dual-zone temperature control across the heating platen, giving operators more precise heat management for demanding transfer applications such as aluminum panels.

Built for Years of Daily Use：A reinforced structural design gives the press the strength and stability needed for long-term production use.

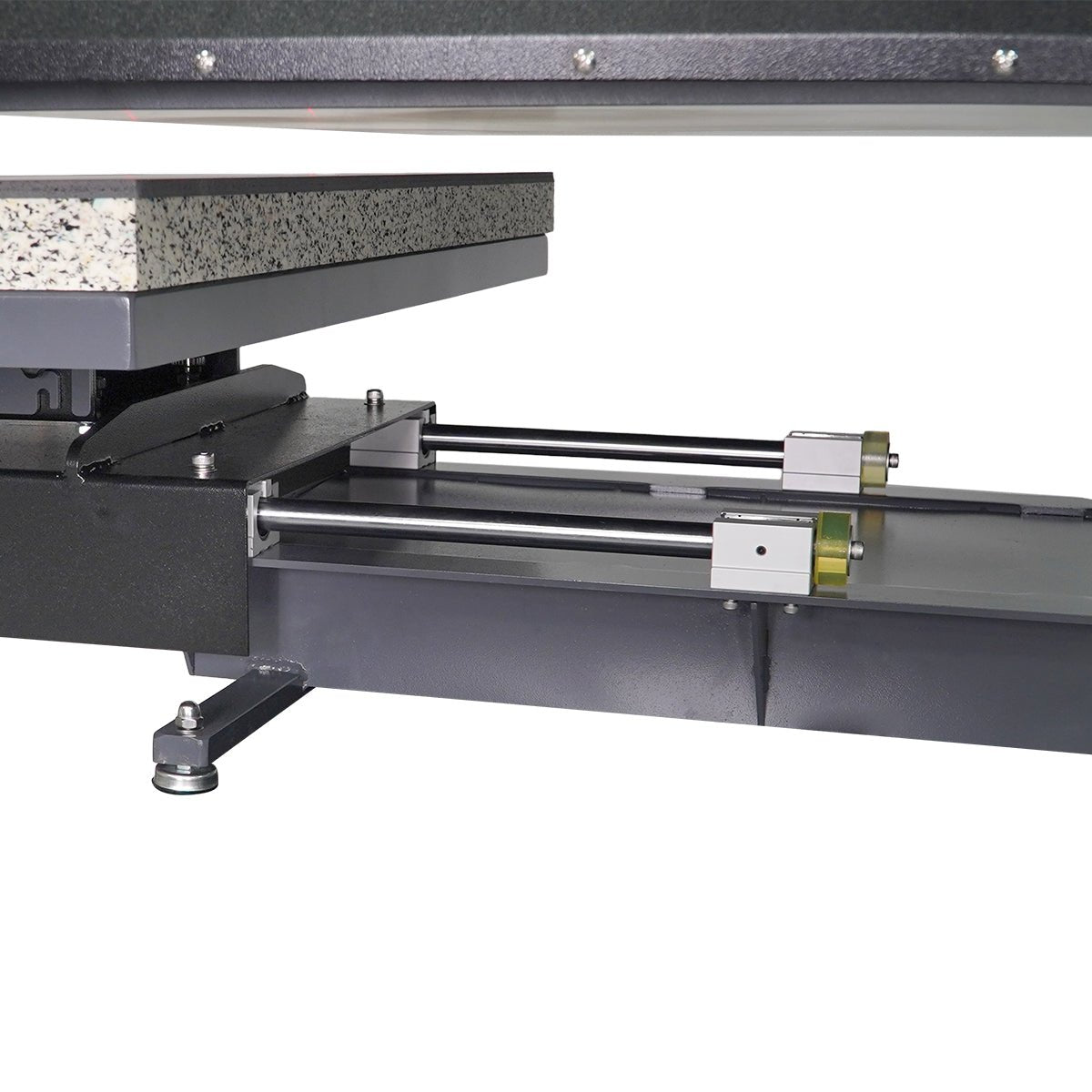

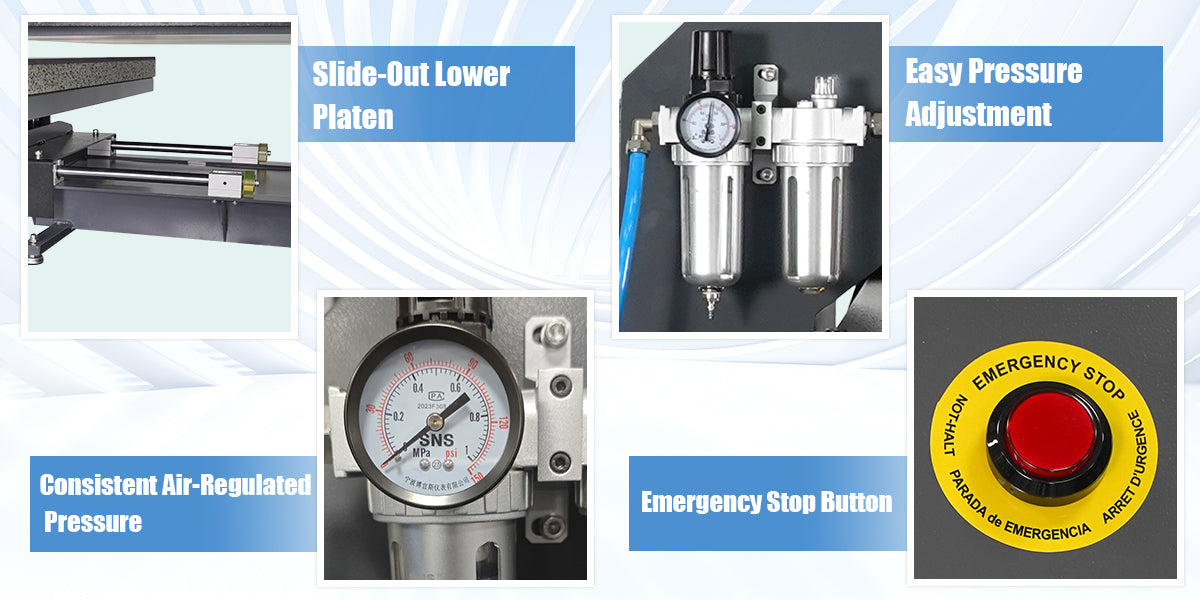

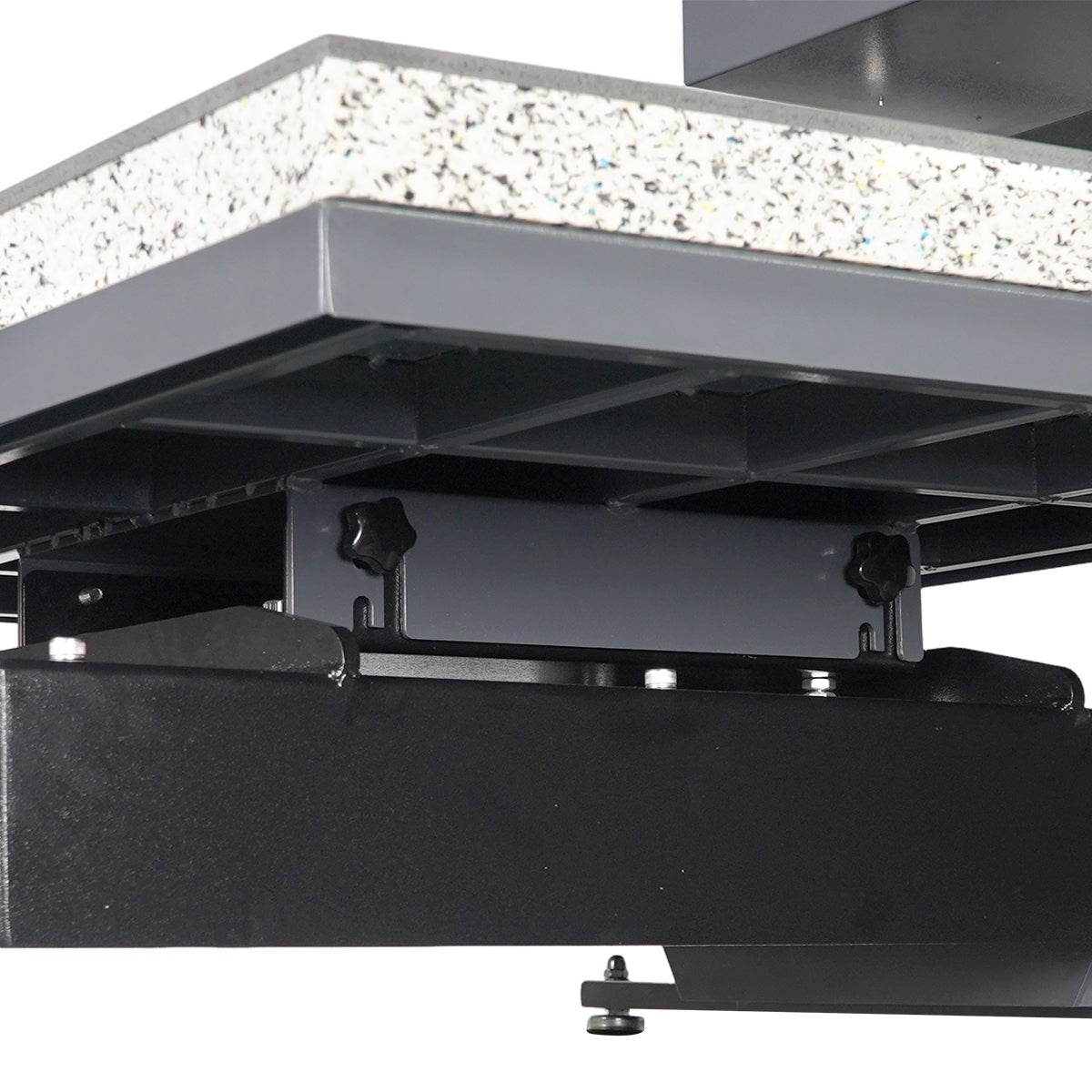

Slide-Out Lower Platen for Safer Loading：The pull-out platen design lets you load and position items away from the heated upper platen, helping reduce the risk of accidental burns.

Vertical Pressing Motion for More Stable Pressure：The straight up-and-down platen movement applies pressure more evenly, making it ideal for thicker substrates such as wood, ceramic tiles, crystal, and other rigid materials.

Lifetime technical support from Microtec USA

3 Year warranty on the heating plate
