ATLAS ULTRA 40" x 48" Pneumatic Sublimation Double Station Heat Press

Name: ATLAS ULTRA 40" x 48" Pneumatic Sublimation Double Station Heat Press
Brand: MICROTEC USA
SKU: AT48-APS
Price: 13990.0 USD
Availability: InStock

MICROTEC USA Product Number: AT48-APS

$13,990.00 USD

Quantity: (In cart: 0)

Increments of 1 Minimum of 1 Maximum of

Description:

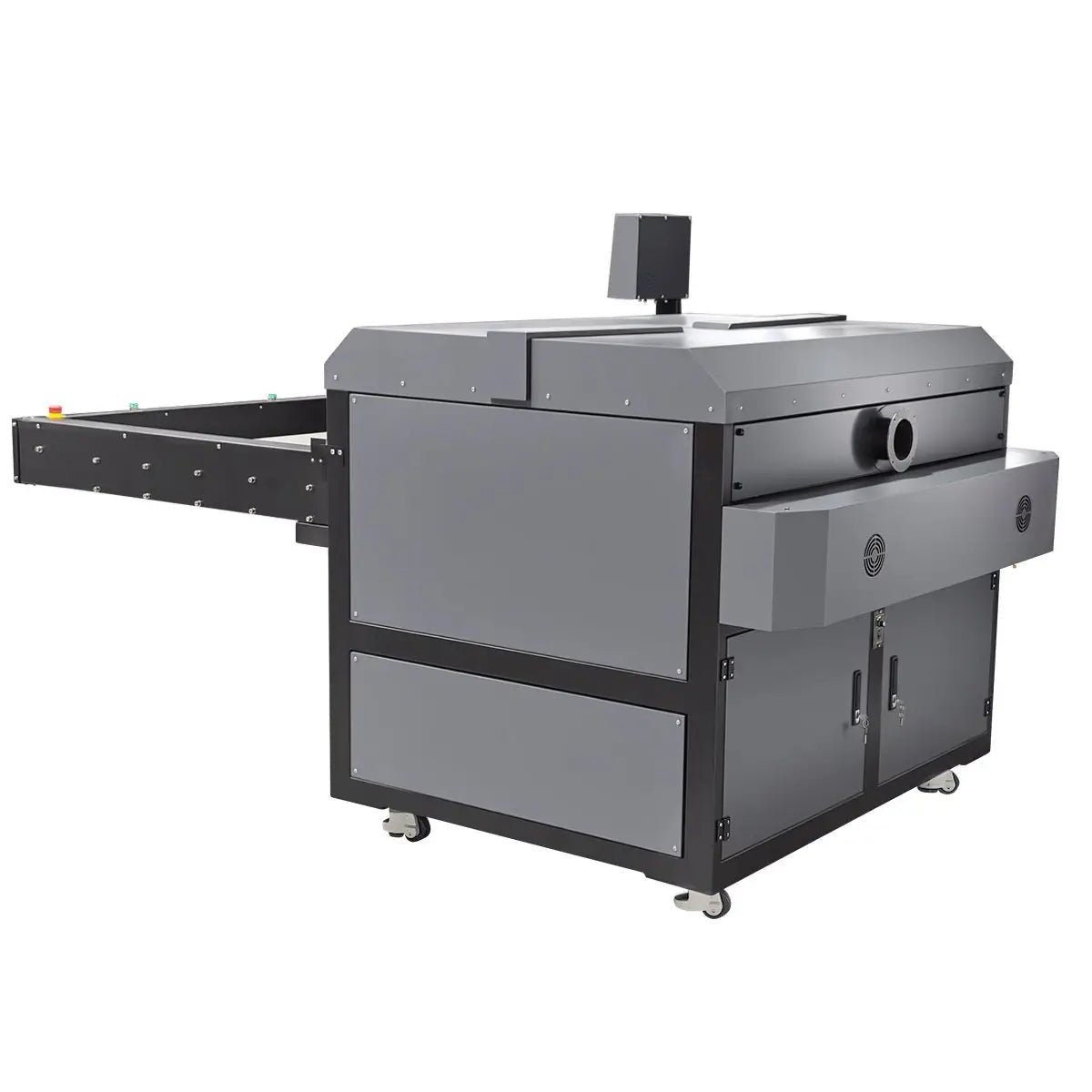

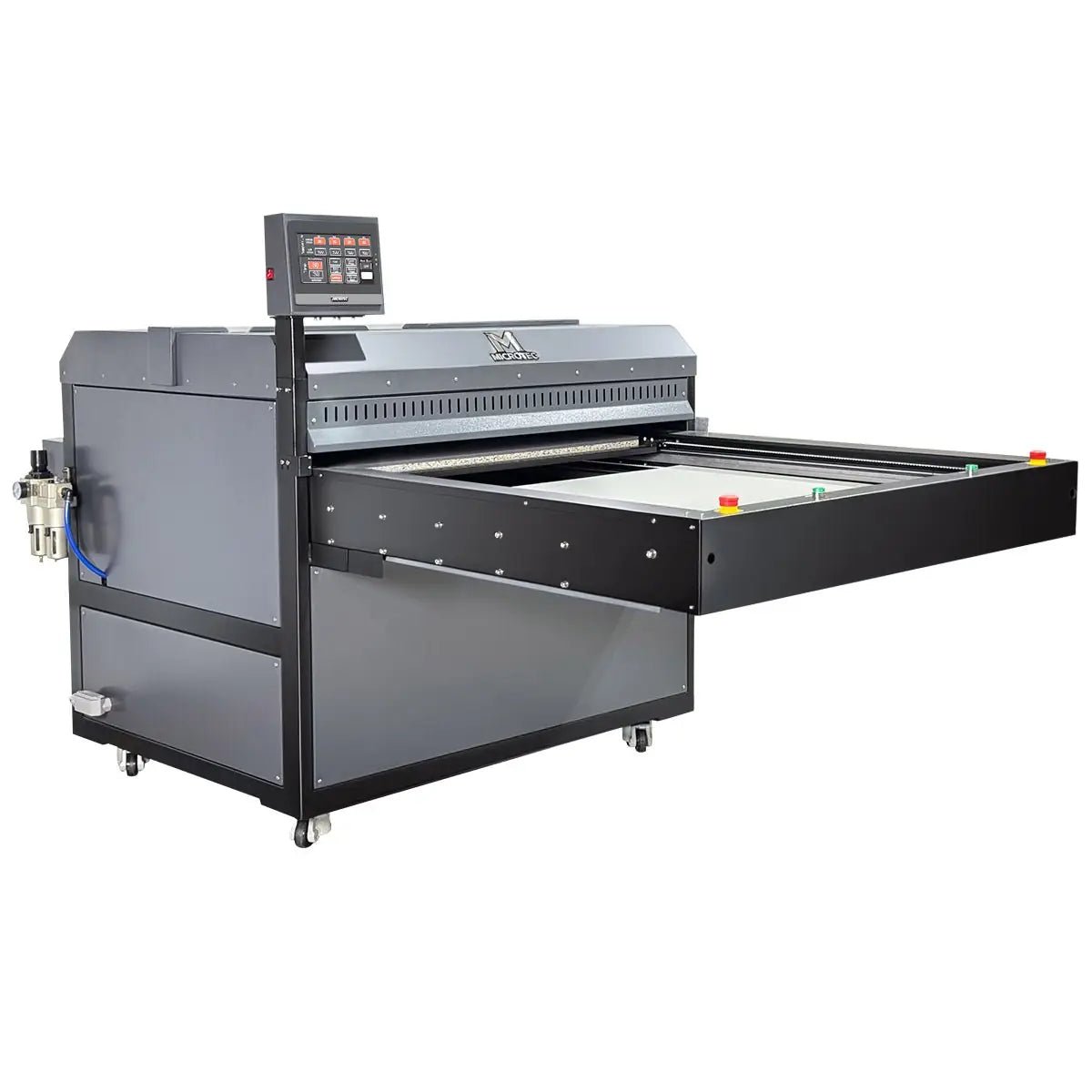

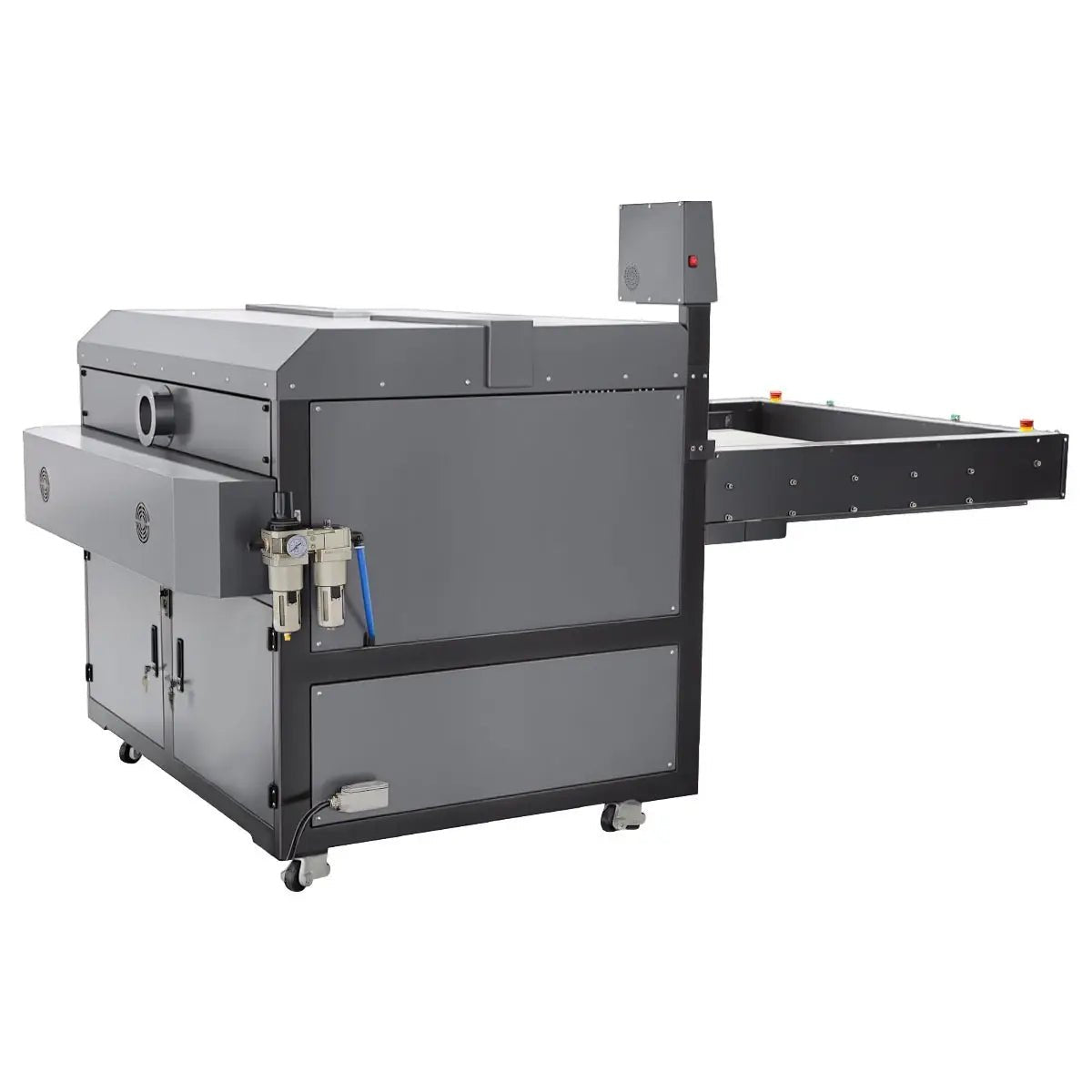

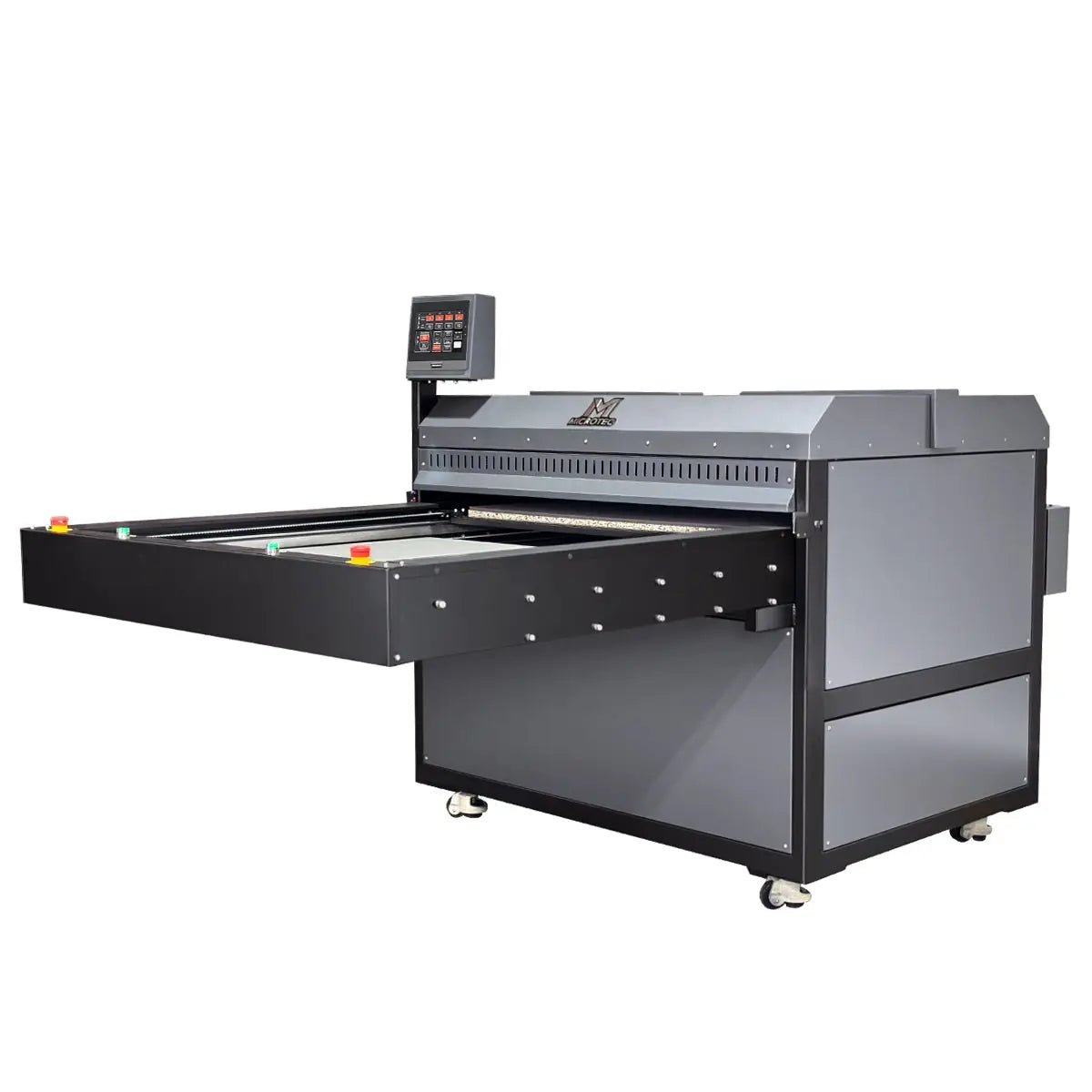

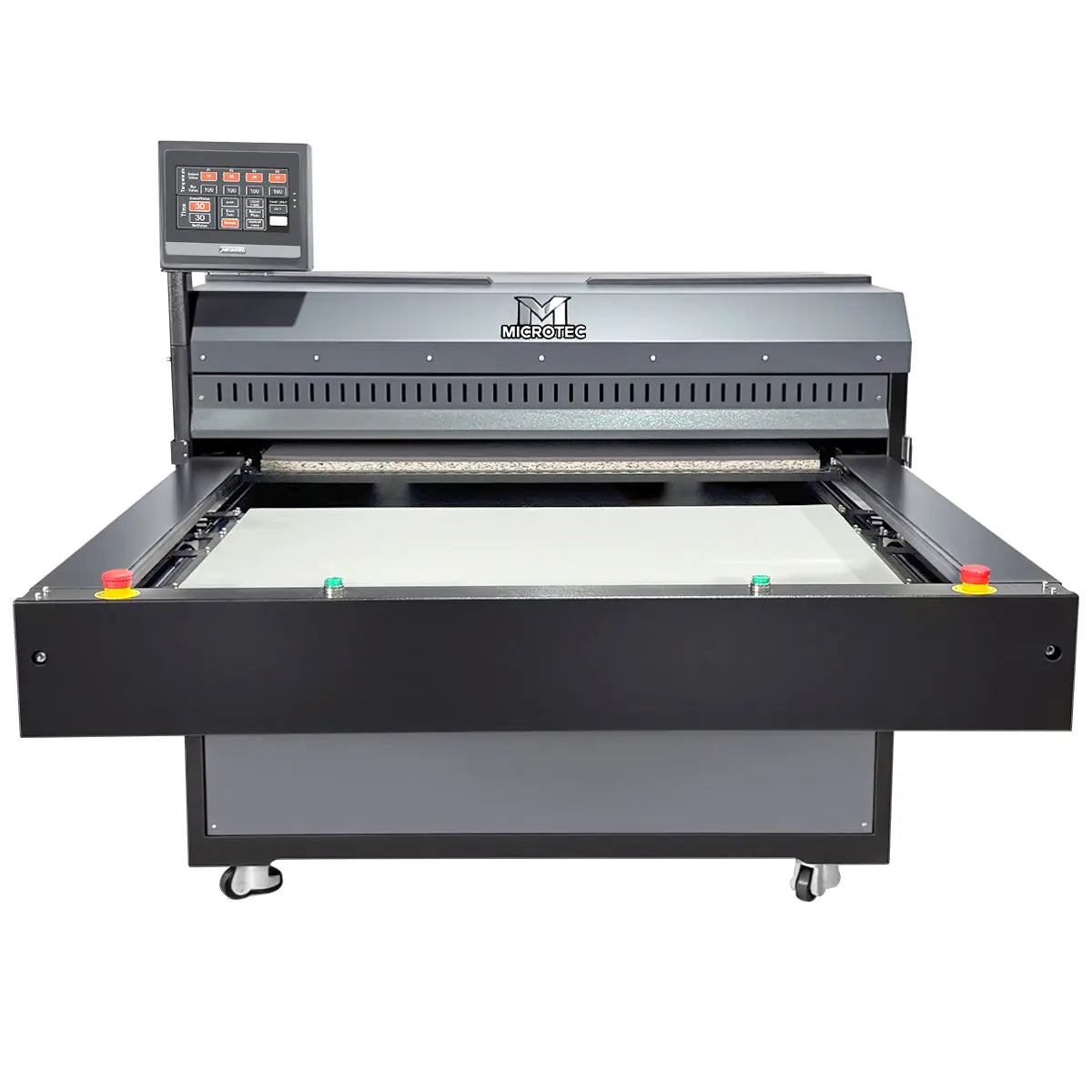

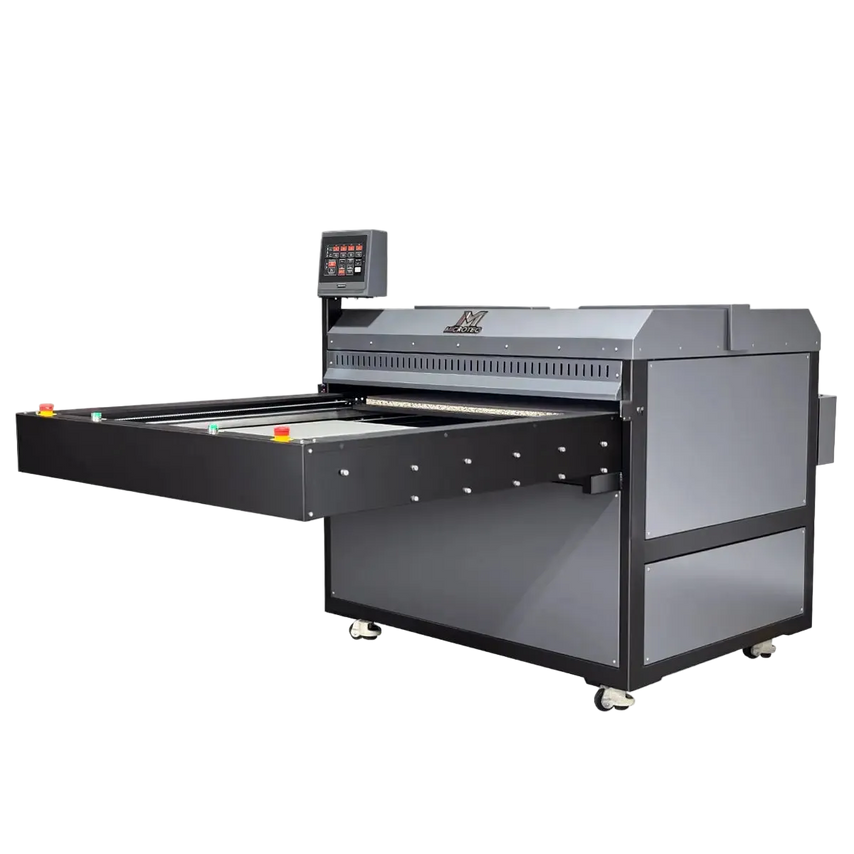

The Atlas Ultra AT48-APS Large Format Automatic Heat Press is built for high-output production environments that demand both scale and consistency. Equipped with a 39.4" x 47.2" upper platen, an automatic reciprocating dual-station tray system, and dual pneumatic cylinders, this machine is engineered to deliver reliable pressure, efficient workflow, and repeatable large-format results.

Its expanded platen size makes the Atlas Ultra AT48-APS especially well suited for all-over sublimation, oversized graphics, and full-panel garment applications. The combination of a broad heating surface, powerful internal heating system, and synchronized air pressure allows operators to achieve clean, even transfers across large areas with greater consistency. With its automated shuttle workflow, a single operator can maintain faster production speeds and more uniform results than with a conventional manual press.

Features include a large-format upper platen, automatic dual-station shuttle trays, dual air cylinders for even pressure, consistent edge-to-edge heat coverage, digital time and temperature controls, manual or automatic operation modes, and a space-efficient industrial design suited for demanding production environments.

ATLAS ULTRA 40" x 48" Pneumatic Sublimation Double Station Heat Press

$13,990.00 USD

Exclusive Offer

Talk to our team of experts to get 1-on-1 personalized information and have your questions answered in real time!

Schedule A Call

Specifications

Workstation Count	2
Platen Size	39.4" x 47.2"
Production Capacity	Up To 175 Units/hour*
Temperature Range	50-437°F
Time Range	0-999 Seconds
Shipping Size	76" x 73.6" x 73.8"

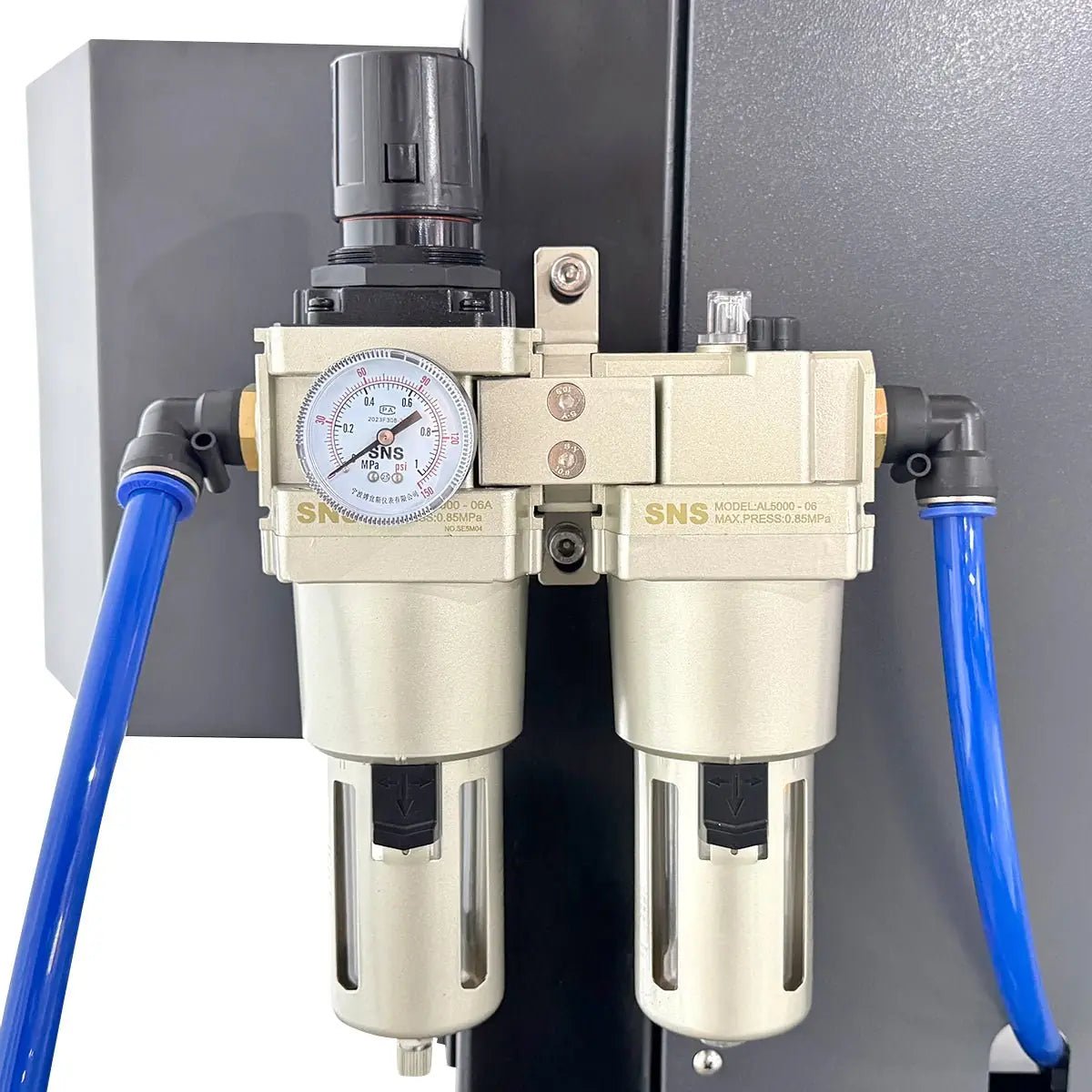

Air Requirements (CFM)	38 CFM
Power Consumption	9000
Voltage	240v 3 Phase
Amps	30A
Machine Dimensions	60.5" x 55" x 107"
Method of Operation	Fully Automatic (Pneumatic)
Machine Line	Atlas
Shipping Weight	2643 lb
Net Weight	1961 lb
Color	Gray and Black

* Calculated using DTF film

ATLAS ULTRA 40" x 48" Pneumatic Sublimation Double Station Heat Press

2 Workstation Heat Press

MICROTEC USA

Buy ATLAS ULTRA 40" x 48" Pneumatic Sublimation Double Station Heat Press

50-437°F

Max Temperature

Fully Automatic (Pneumatic)

Operation

Up to 175

Units an Hour

Calculate Your Return on Investment

ATLAS ULTRA 40" x 48" Pneumatic Sublimation Double Station Heat Press

Input Parameters

Number of Presses

Items to Produce

Item Sale Price ($)

Cost of Goods ($)

Labor Cost ($/hr)

Work Hours per Day

ROI Analysis

Total Revenue

$0

Total Costs

$0

Days to Produce

0

Hours to Produce

0

Net Profit

$0

Profit Margin

0%

Time to ROI

0 Days

Daily Profit After ROI

$0

Features

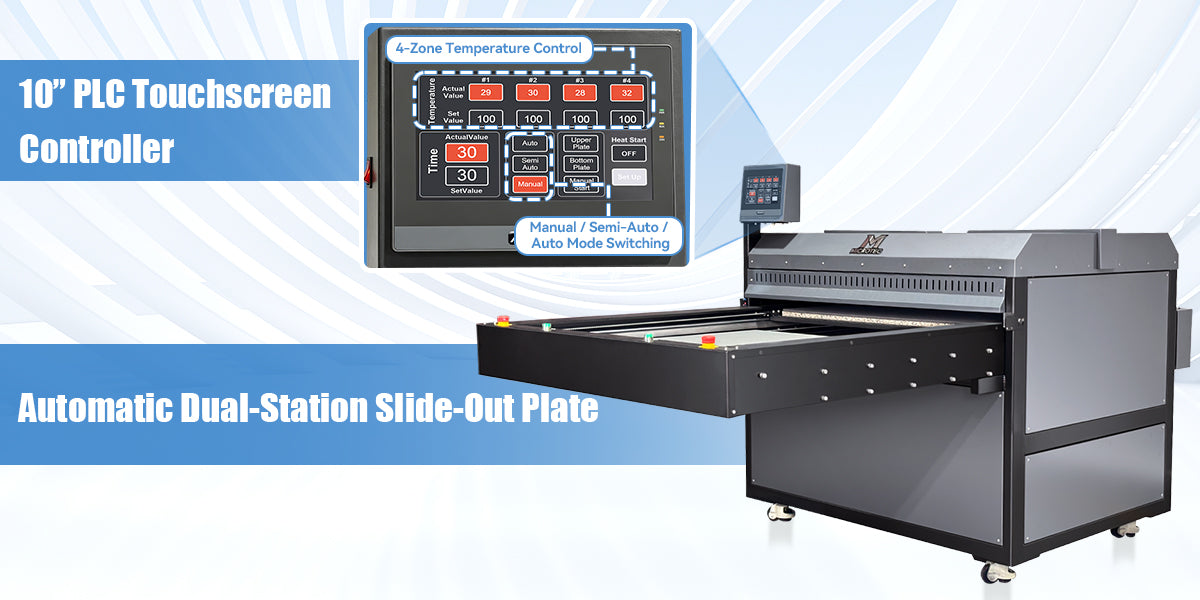

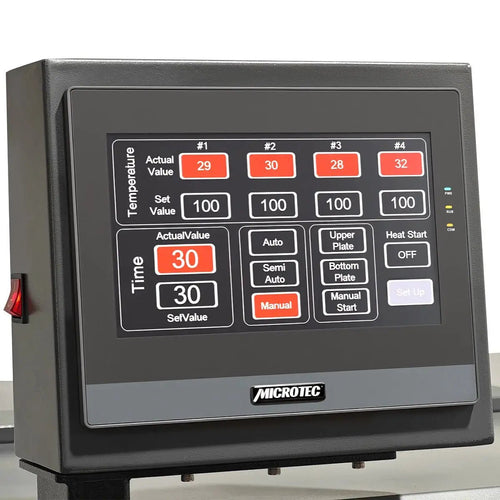

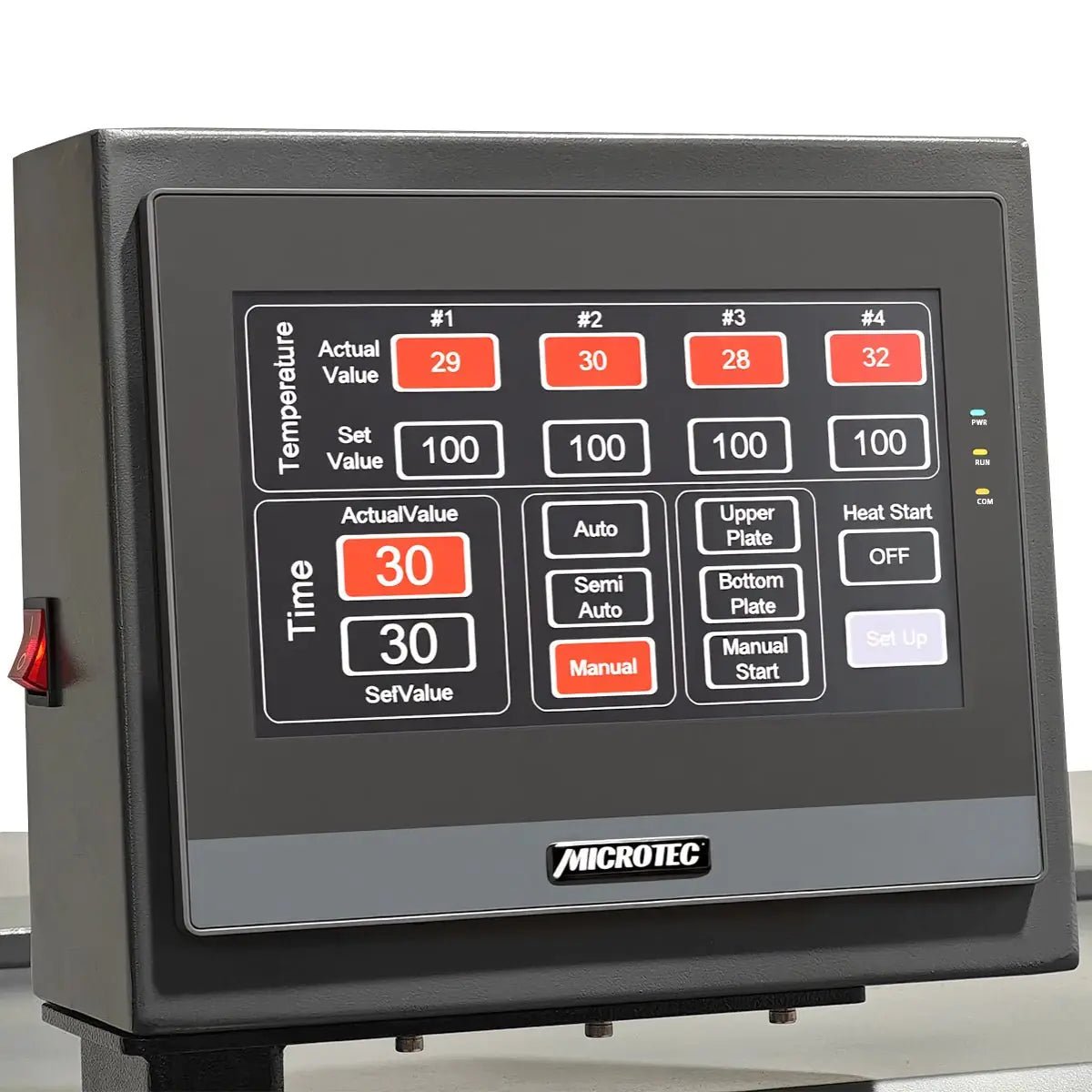

PLC Touchscreen Controller with 4-Zone Temperature Control：The advanced PLC touchscreen controller allows independent 4-zone temperature control across the heating platen, giving operators more precise heat management for demanding transfer applications such as aluminum panels.

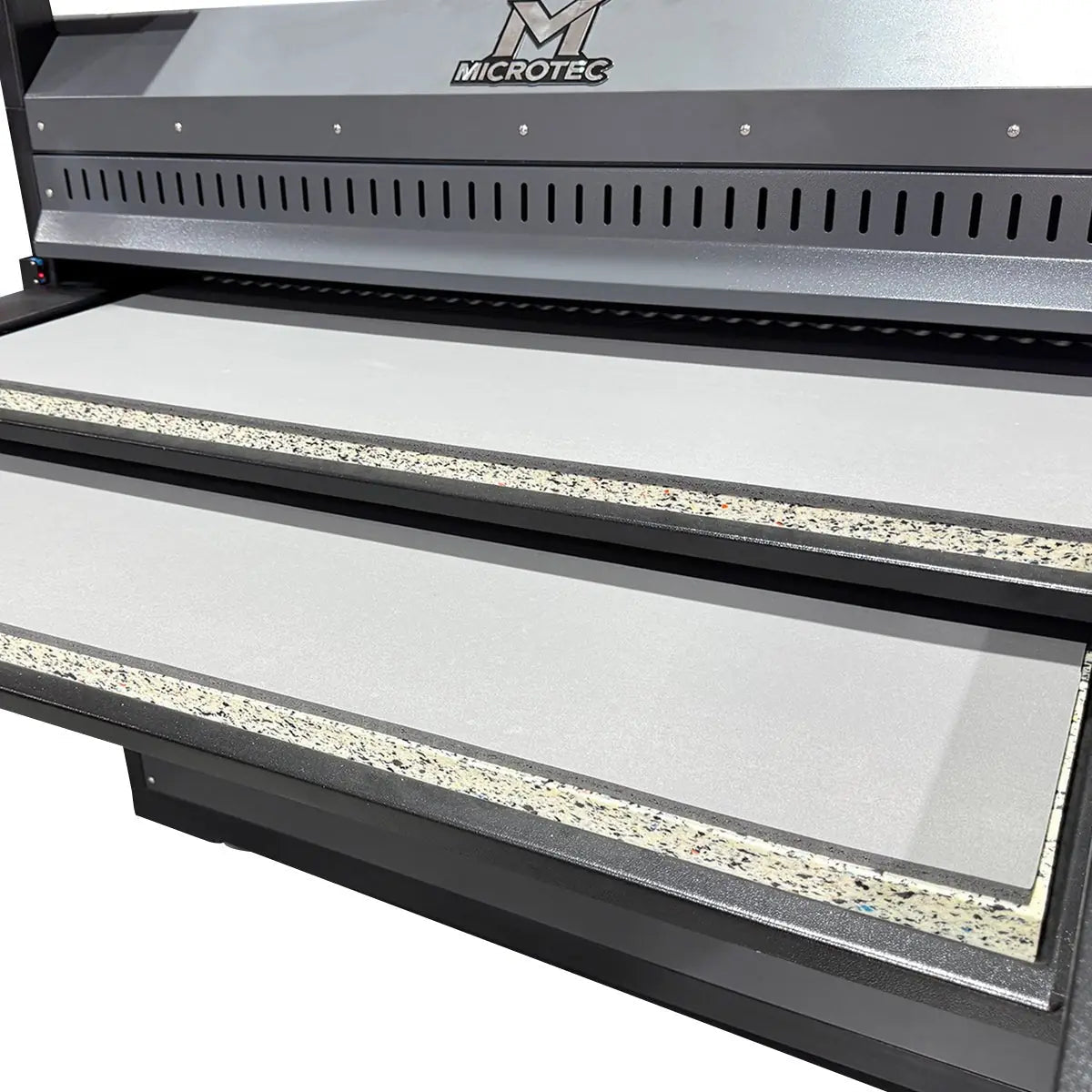

Efficient Dual Tray System: The reciprocating dual tray design streamlines workflow, reduces labor requirements, and enhances production efficiency, allowing operation by a single operator.

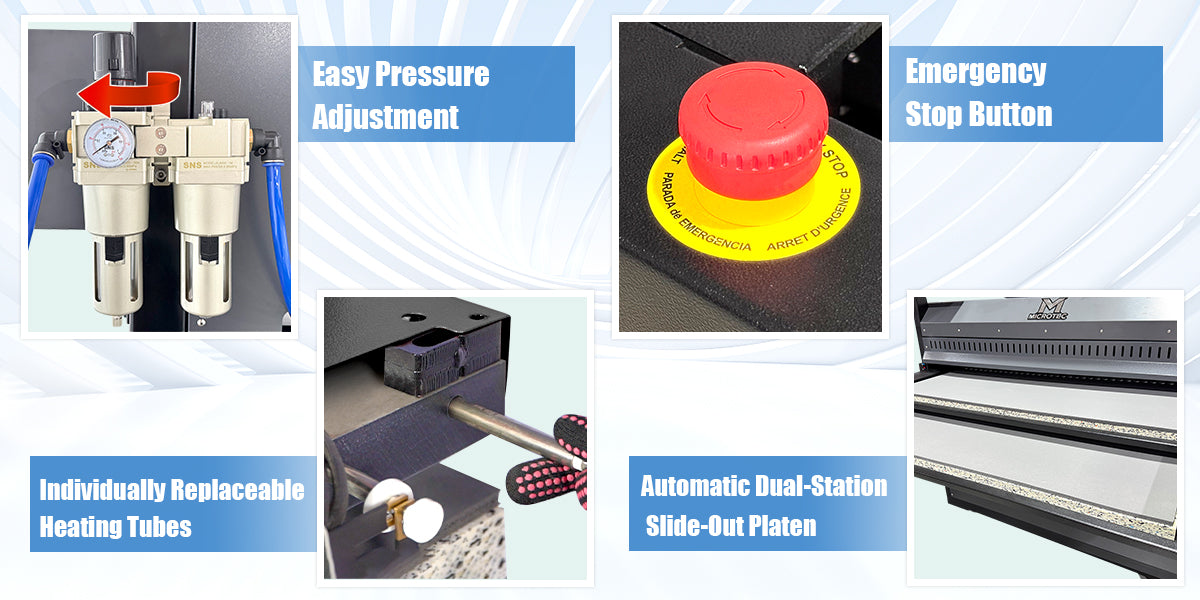

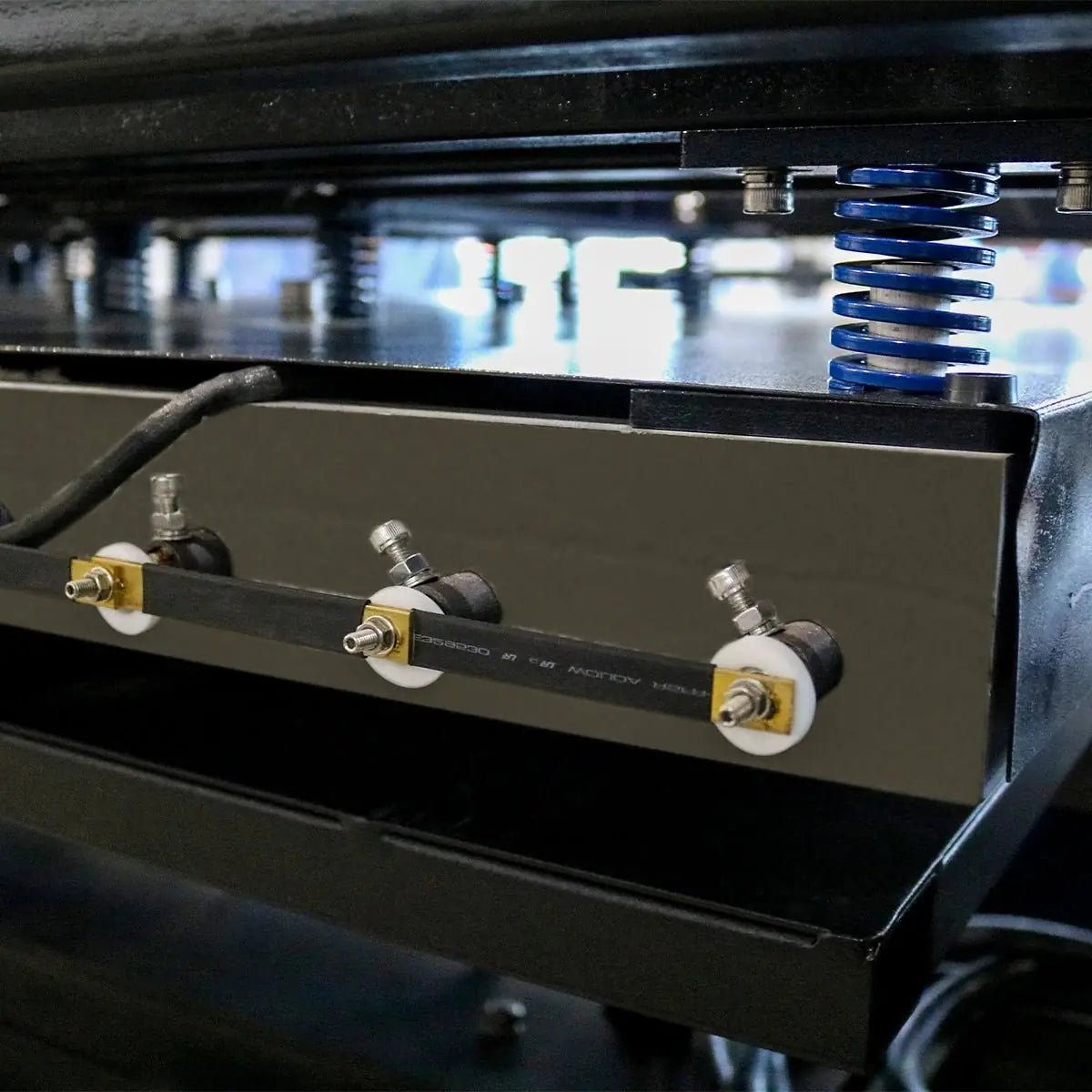

High-Pressure Pneumatic Operation: Featuring powerful air cylinders, the APEX ULTRA series delivers high pressure suitable for transferring designs onto various substrates, including aluminum sheets, wood, fabric, and garments.

Pluggable Heat Elements: The platen incorporates separate heat tubes, enabling easy replacement of individual tubes without the need to replace the entire heat platen, resulting in cost savings and simplified maintenance.

Flexible Operation Modes: Select from manual, semi-automatic, or fully automatic modes to align with your production requirements.
