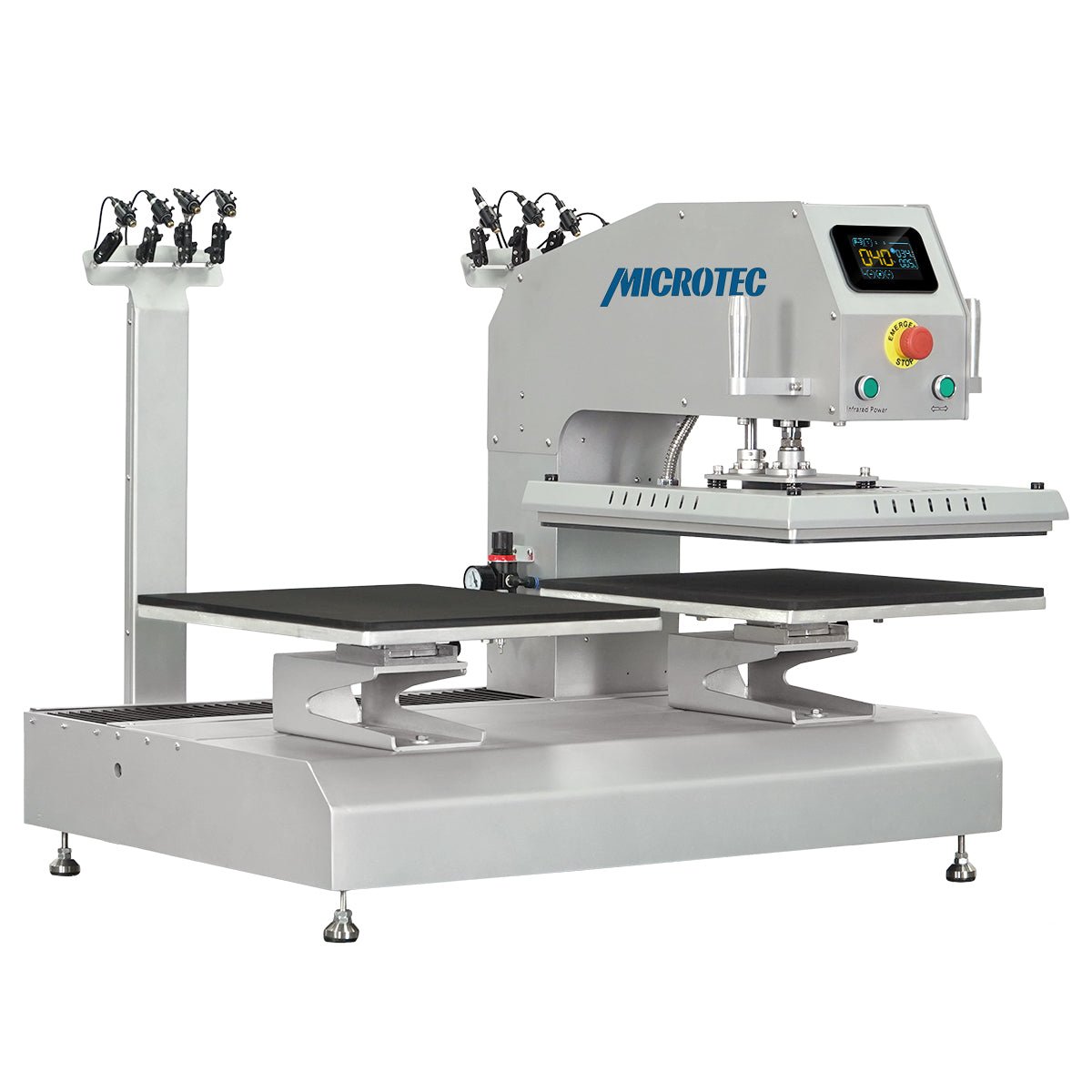

TITAN 16” x 24” Auto / Semi-Auto Dual Station Pneumatic Heat Press with Laser Alignment

Name: TITAN 16” x 24” Auto / Semi-Auto Dual Station Pneumatic Heat Press with Laser Alignment
Brand: MICROTEC USA
Price: 3990.0 USD
Availability: InStock

MICROTEC USA Product Number: T1624-APL-Combo-1

$3,990.00 USD -16% $4,699.00 USD

$3,990.00 USD

Accessory Bundle:

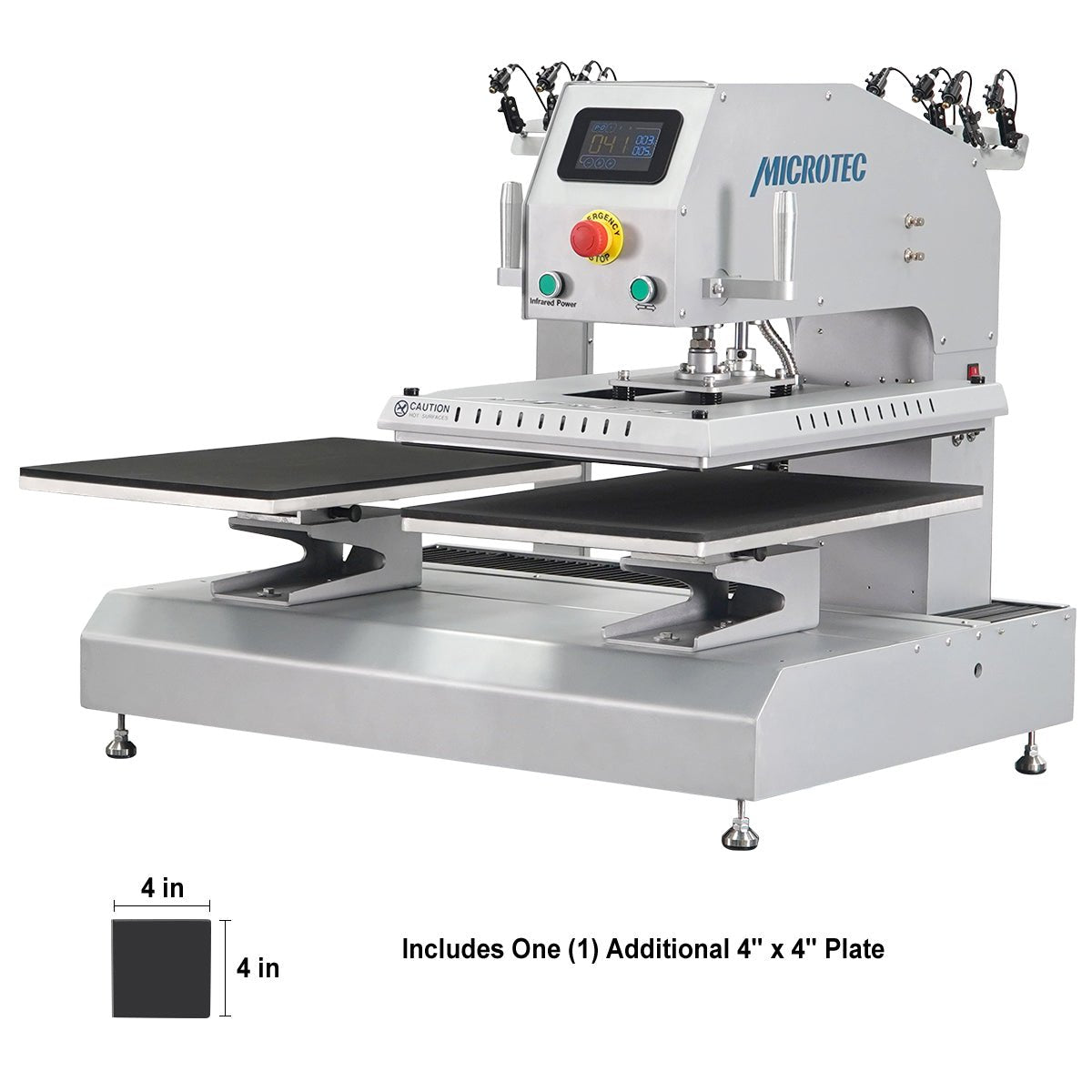

One (1) Additional Plate

Five (5) Additional Plates

Quantity: (In cart: 0)

Increments of 1 Minimum of 1 Maximum of

Description:

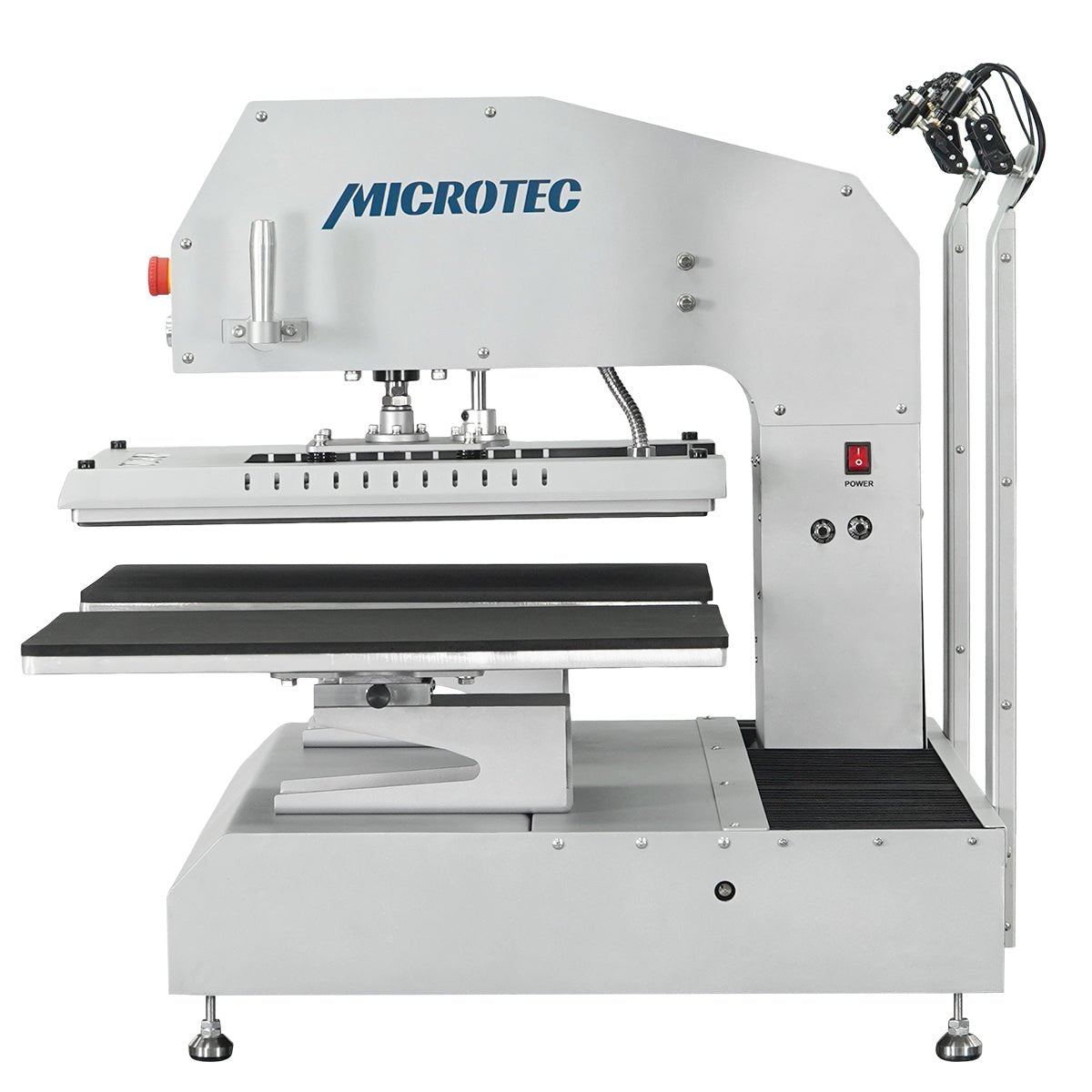

The TITAN 16" x 24" Auto / Semi-Auto Dual Station Pneumatic Heat Press is engineered to deliver higher efficiency, stronger consistency, and easier operation for demanding production environments. Built with a laser-cut steel frame, TITAN is designed for long-term durability and dependable daily use. Its dual sliding lower platens allow operators to press one item while preparing the next, helping increase workflow speed and reduce downtime. The upgraded heating element is over 20% thicker than the Vector Series design, providing improved heat retention, more even temperature distribution, and reliable performance. An integrated anti-burn shield adds extra operator safety during production.

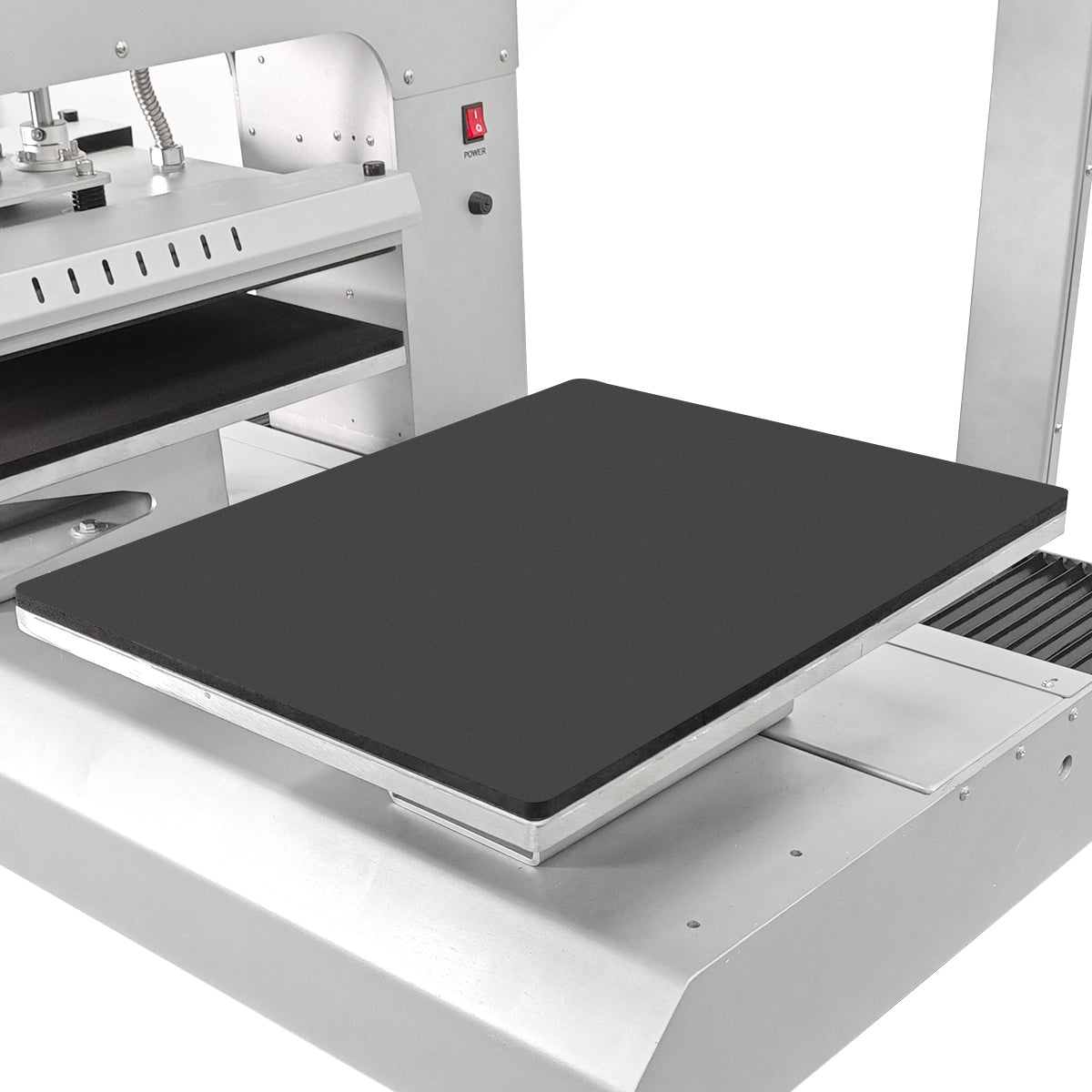

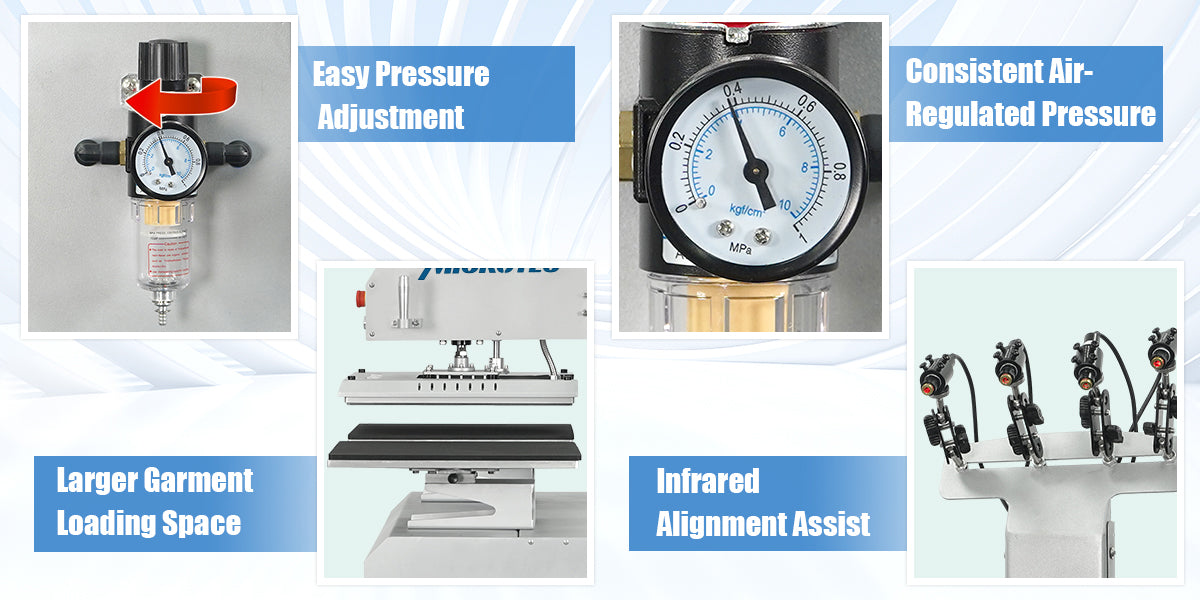

As a pneumatic heat press, TITAN uses air-powered operation to reduce physical effort and improve consistency. Users can set the desired pressure, activate the press with the push of a button, and let the machine complete the cycle automatically. Once the timer reaches zero, the press opens on its own. Powered by an external air compressor (sold separately), this system helps reduce operator fatigue while ensuring that every transfer receives more consistent time, temperature, and pressure regardless of who is using the machine. TITAN also features automatic station switching, allowing the upper control housing and heating element to move to the opposite platen at the push of a button for faster and smoother operation.

To further improve accuracy and flexibility, TITAN is equipped with laser positioning, helping operators place garments more precisely and achieve more consistent alignment during setup. It also supports multiple interchangeable lower platens, giving the machine maximum versatility for different garment sizes, print locations, and specialty applications.

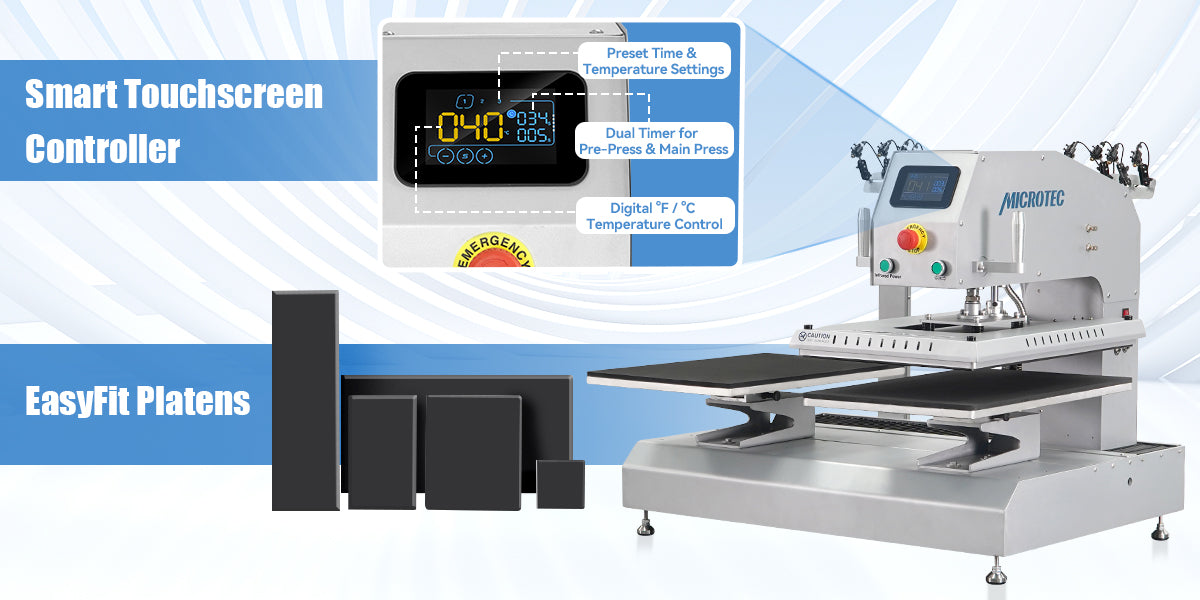

The control box includes a touchscreen interface, real-time pressure display, three preset memory slots, and a built-in backup fuse for added convenience and peace of mind. With powerful pneumatic performance, dual-station efficiency, laser-assisted positioning, and expanded platen options, the TITAN Heat Press is built to bring more precision, flexibility, and productivity to your business.

TITAN 16” x 24” Auto / Semi-Auto Dual Station Pneumatic Heat Press with Laser Alignment

$3,990.00 USD $4,699.00 USD

$3,990.00 USD

Exclusive Offer

Talk to our team of experts to get 1-on-1 personalized information and have your questions answered in real time!

Schedule A Call

Specifications

Workstation Count	2
Platen Size	15.7" x 23.6"
Production Capacity	Up To 150 Units/hour*
Temperature Range	32-446°F
Time Range	0-999
Air Requirements (CFM)	4.2 CFM
Power Consumption	1700W
Voltage	120V
Amps	14.2Amp
Method of Operation	Semi-Automatic (Pneumatic)
Machine Line	Titan
Color	Silver

* Calculated using DTF film

TITAN 16” x 24” Auto / Semi-Auto Dual Station Pneumatic Heat Press with Laser Alignment

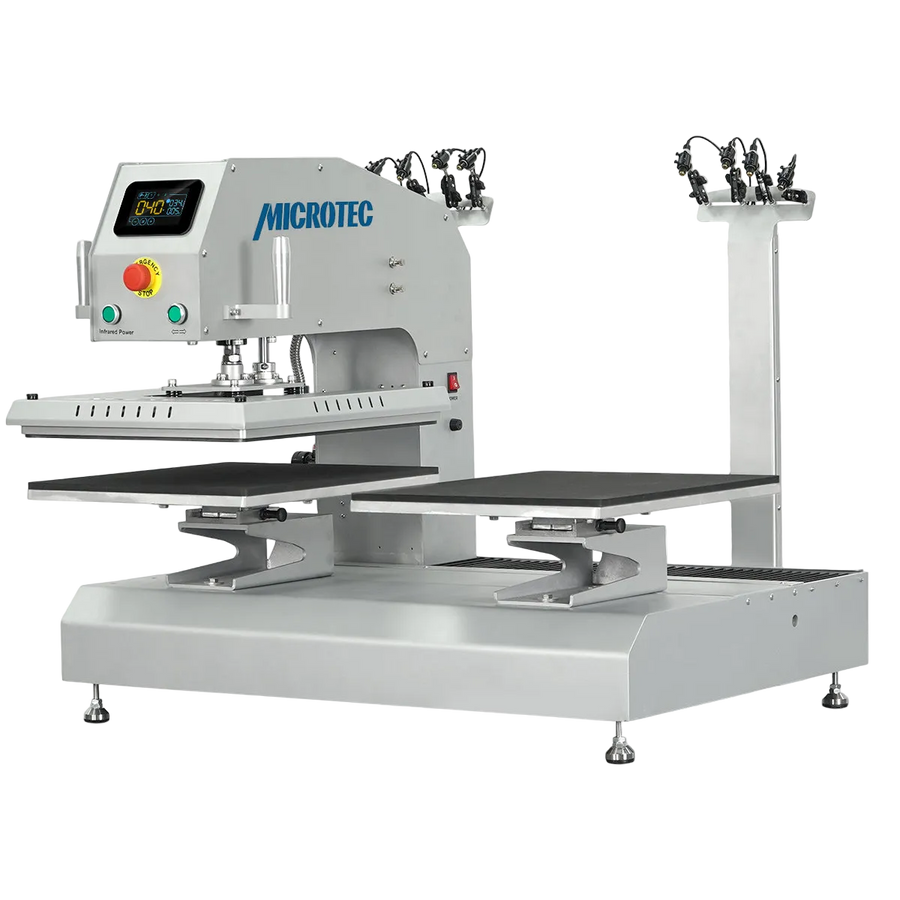

2 Workstation Heat Press

MICROTEC USA

Buy TITAN 16” x 24” Auto / Semi-Auto Dual Station Pneumatic Heat Press with Laser Alignment

32-446°F

Max Temperature

Semi-Automatic (Pneumatic)

Operation

Up to 150

Units an Hour

Calculate Your Return on Investment

TITAN 16” x 24” Auto / Semi-Auto Dual Station Pneumatic Heat Press with Laser Alignment

Input Parameters

Number of Presses

Items to Produce

Item Sale Price ($)

Cost of Goods ($)

Labor Cost ($/hr)

Work Hours per Day

ROI Analysis

Total Revenue

$0

Total Costs

$0

Days to Produce

0

Hours to Produce

0

Net Profit

$0

Profit Margin

0%

Time to ROI

0 Days

Daily Profit After ROI

$0

Key Features

Built for Years of Daily Use : A reinforced structural design gives the press the strength and stability needed for long-term production use.

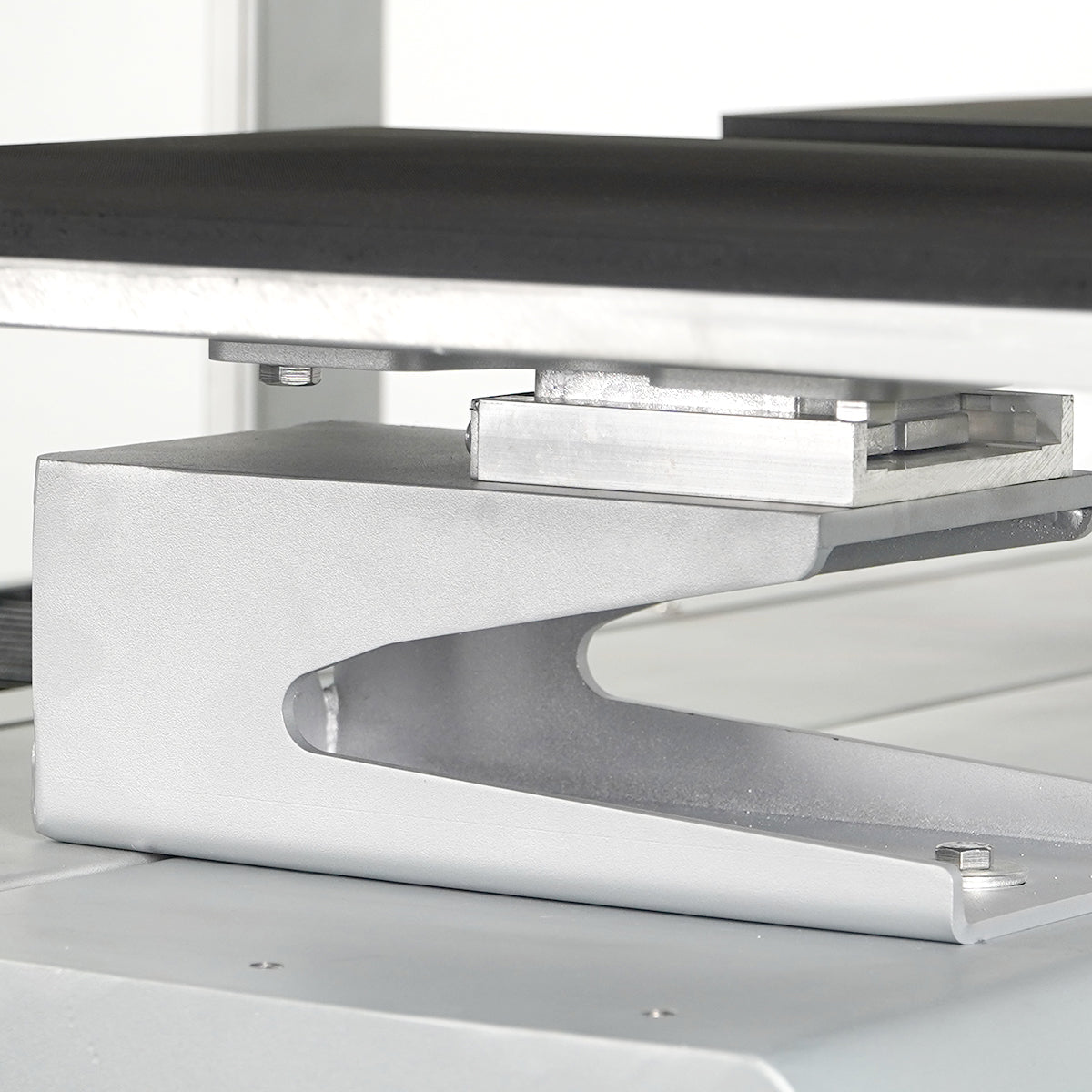

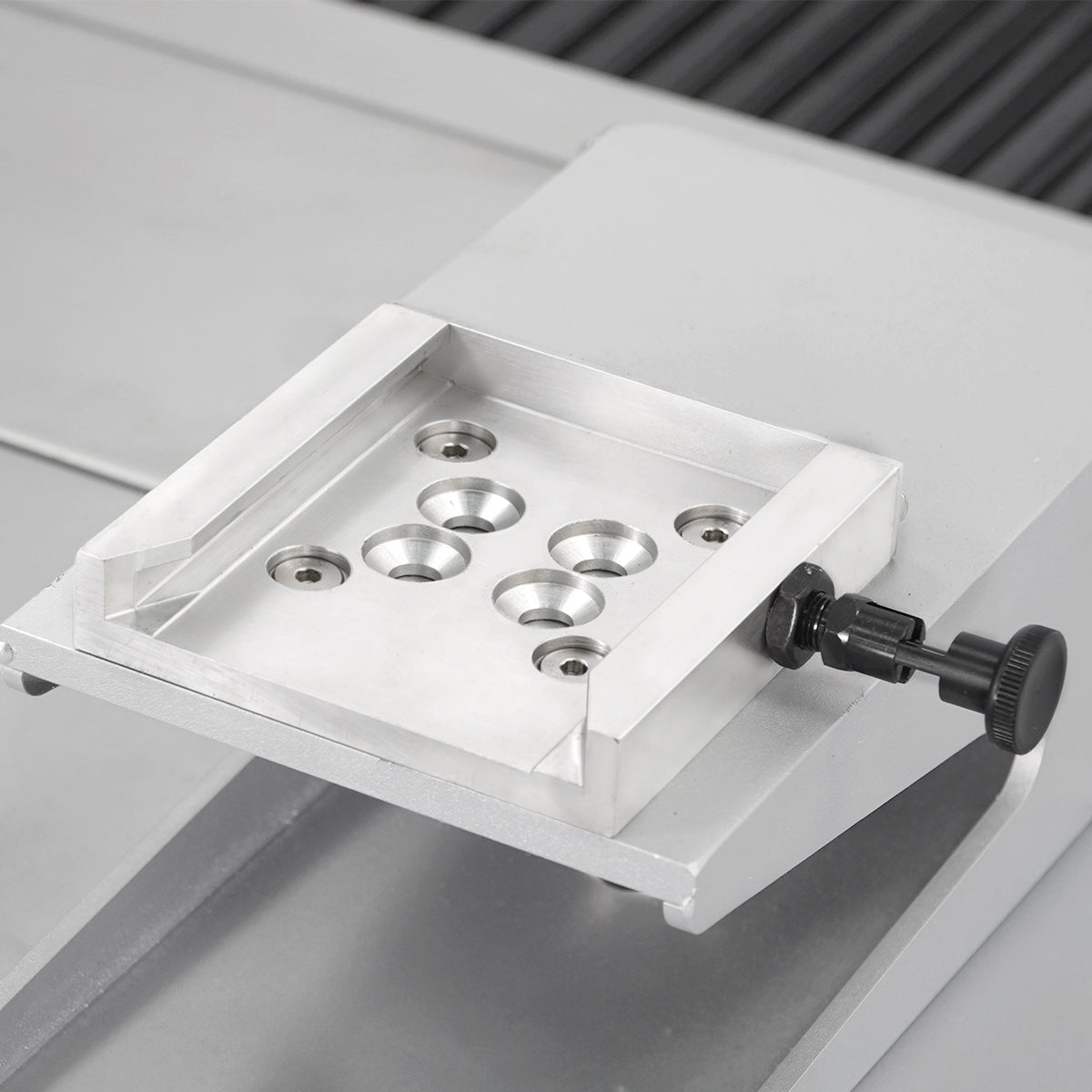

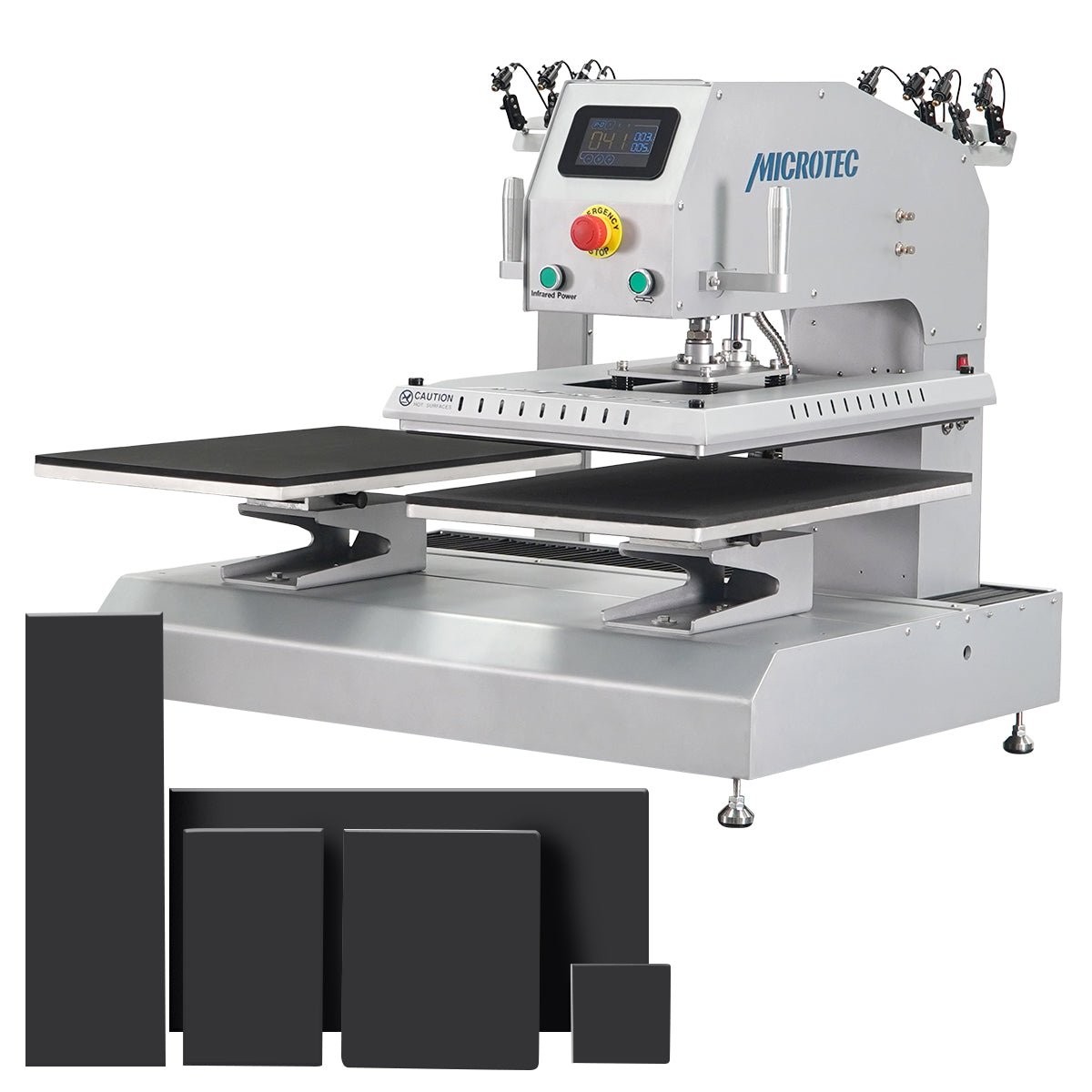

Up to 12 Interchangeable Lower Platens : Compatible with up to 12 optional lower platen sizes, making it easier to handle sleeves, pant legs, bags, labels, youth garments, and hard-to-reach print areas.(Optional platens sold separately.)

Dual-Station Design for Maximum Productivity : The dual-station layout lets you prepare the next item while the current one is being pressed, helping reduce downtime and keep your workflow moving at full speed.

Thicker Platen. Faster Heat-Up. Better Transfers : The upgraded heating platen is 21% thicker than the VECTOR Series, helping maintain more even heat across the surface. Combined with higher-output heating elements, it heats up faster and keeps your press ready for cleaner, more consistent transfers.

Vertical Pressing Motion for More Stable Pressure : The straight up-and-down platen movement applies pressure more evenly, making it ideal for thicker substrates such as wood, ceramic tiles, crystal, and other rigid materials.

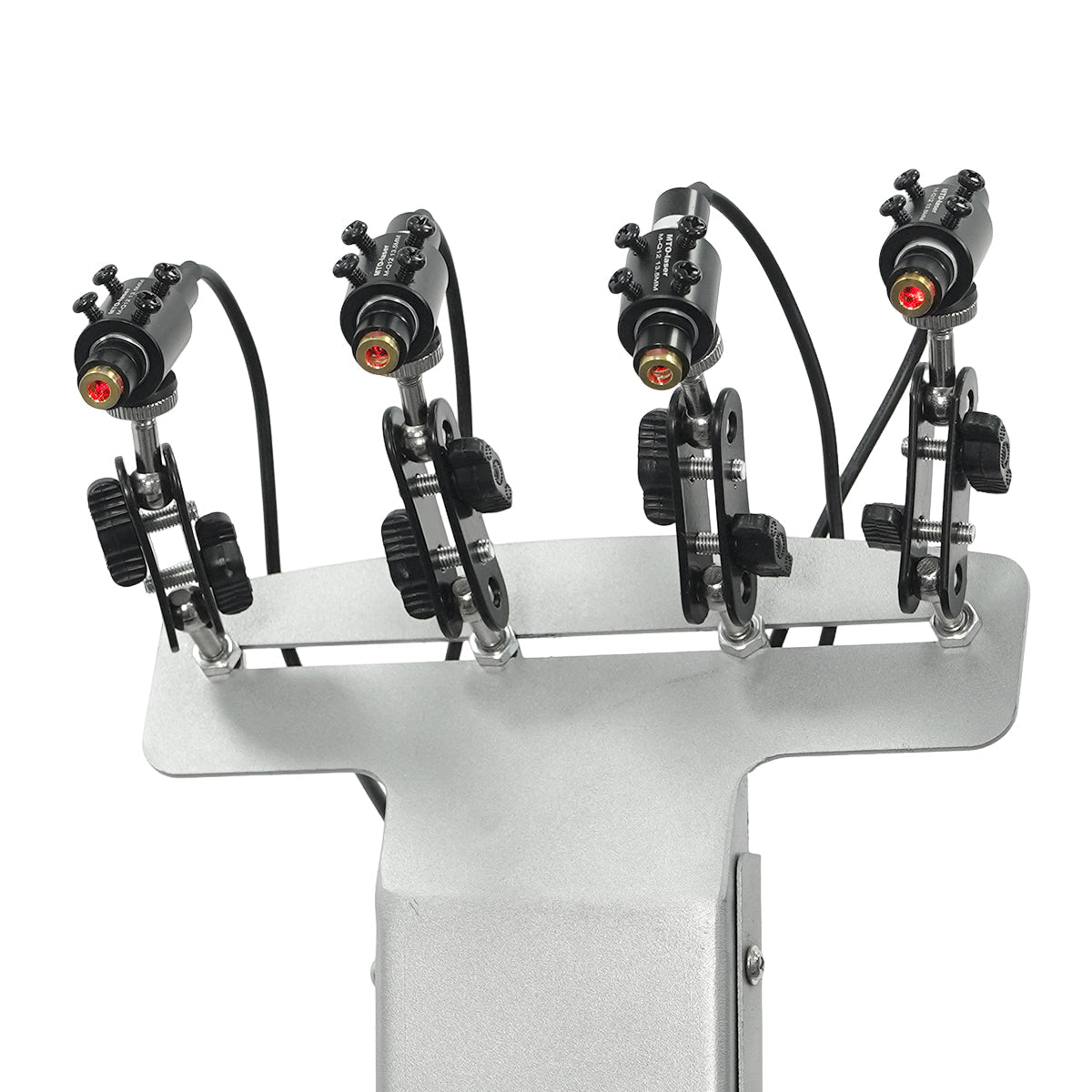

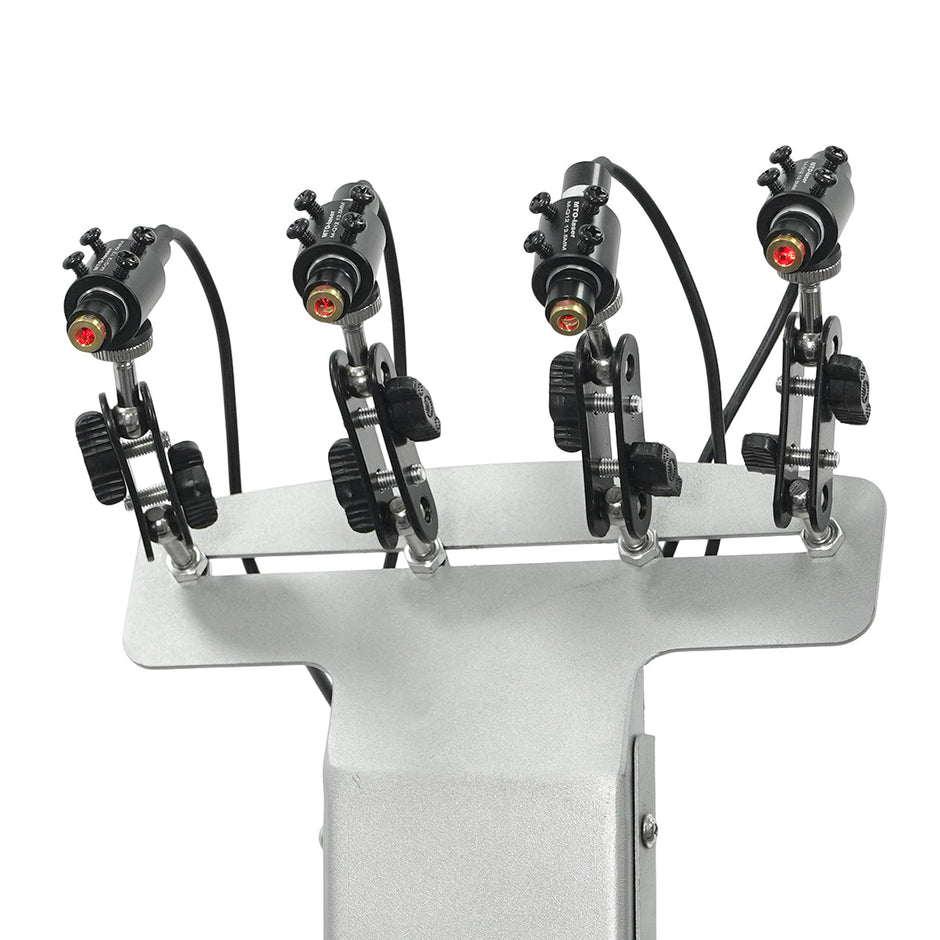

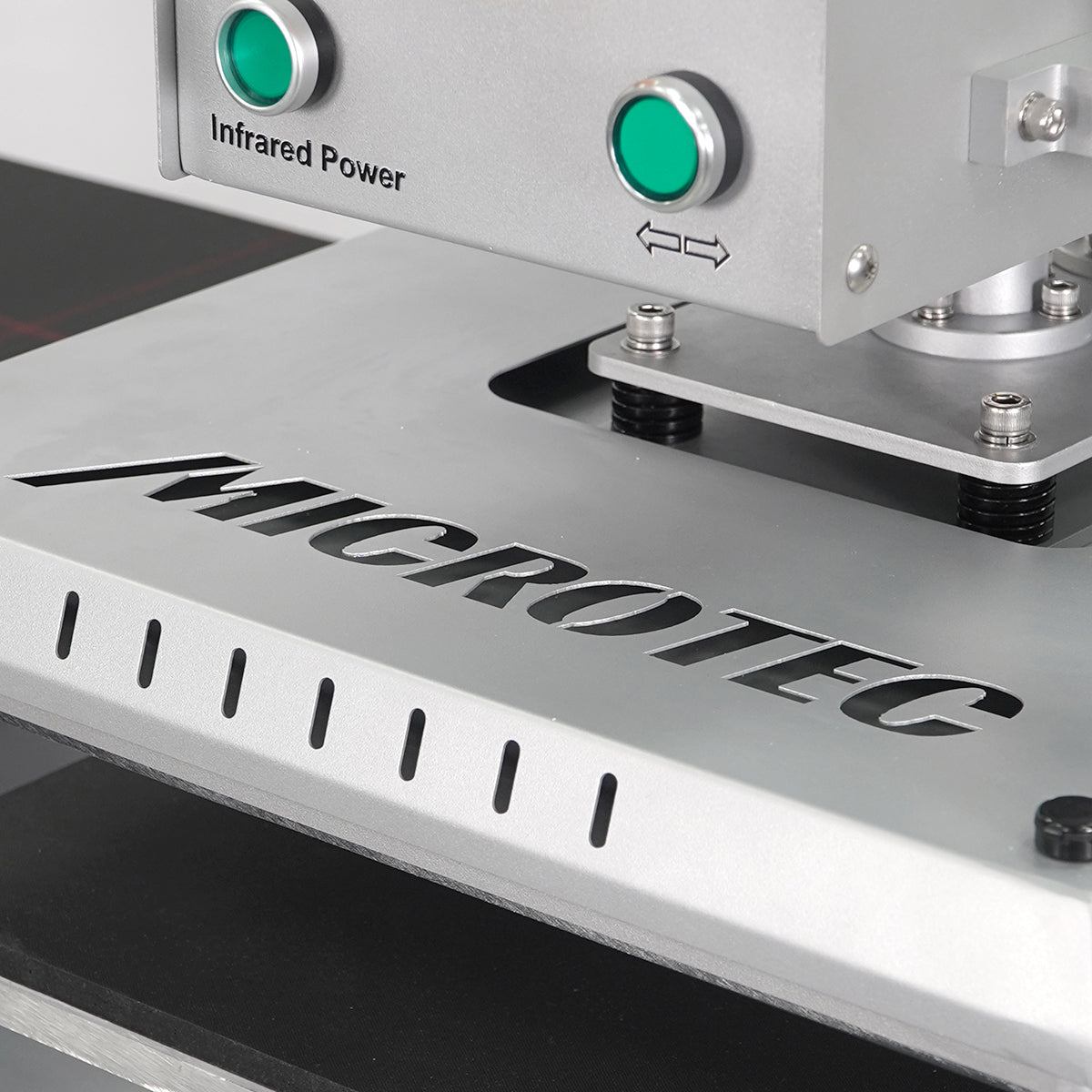

8-Point Infrared Alignment for Precision Placement : Up to 8 infrared alignment guides help you position transfers with greater accuracy, making it easier to achieve clean, consistent placement every time.

Lifetime technical support from Microtec USA

Lifetime Warranty on the Heating Element
