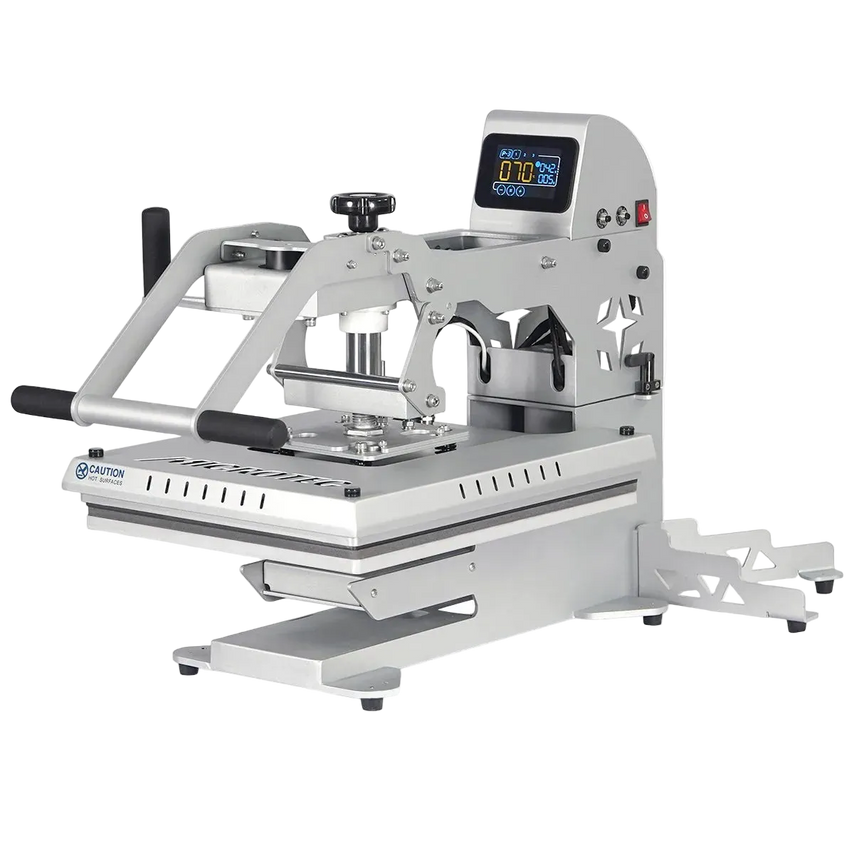

TITAN Pro 16” x 20” Auto Open Swing Away Heat Press

Name: TITAN Pro 16” x 20” Auto Open Swing Away Heat Press
Brand: MICROTEC USA
Price: 1590.0 USD
Availability: InStock

MICROTEC USA Product Number: T1620Pro-AWL

$1,590.00 USD -12% $1,799.00 USD

$1,590.00 USD

Accessory Bundle:

One (1) Additional Plate

Five (5) Additional Plates

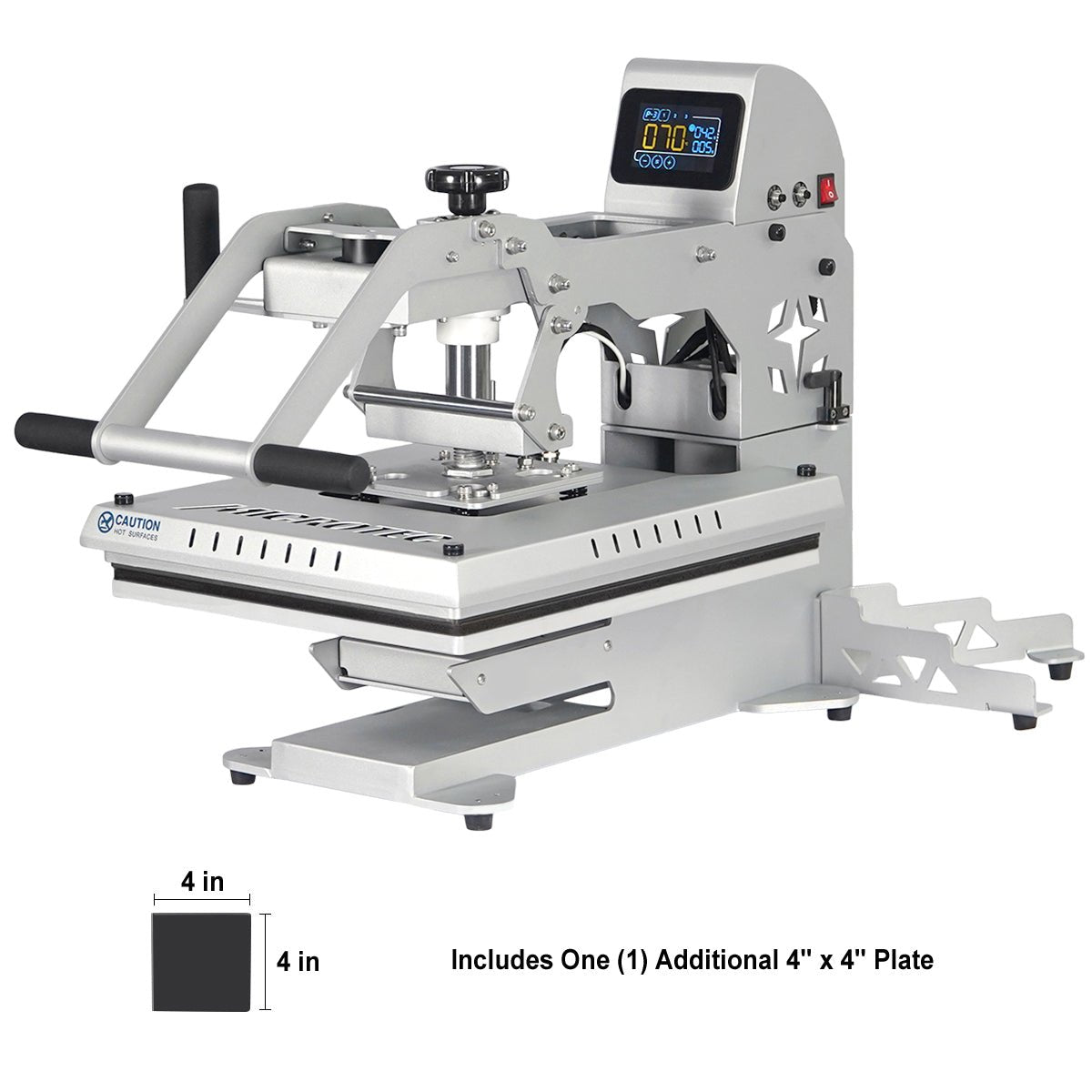

Single Extra 4"x4" Plate

Quantity: (In cart: 0)

Increments of 1 Minimum of 1 Maximum of

Description:

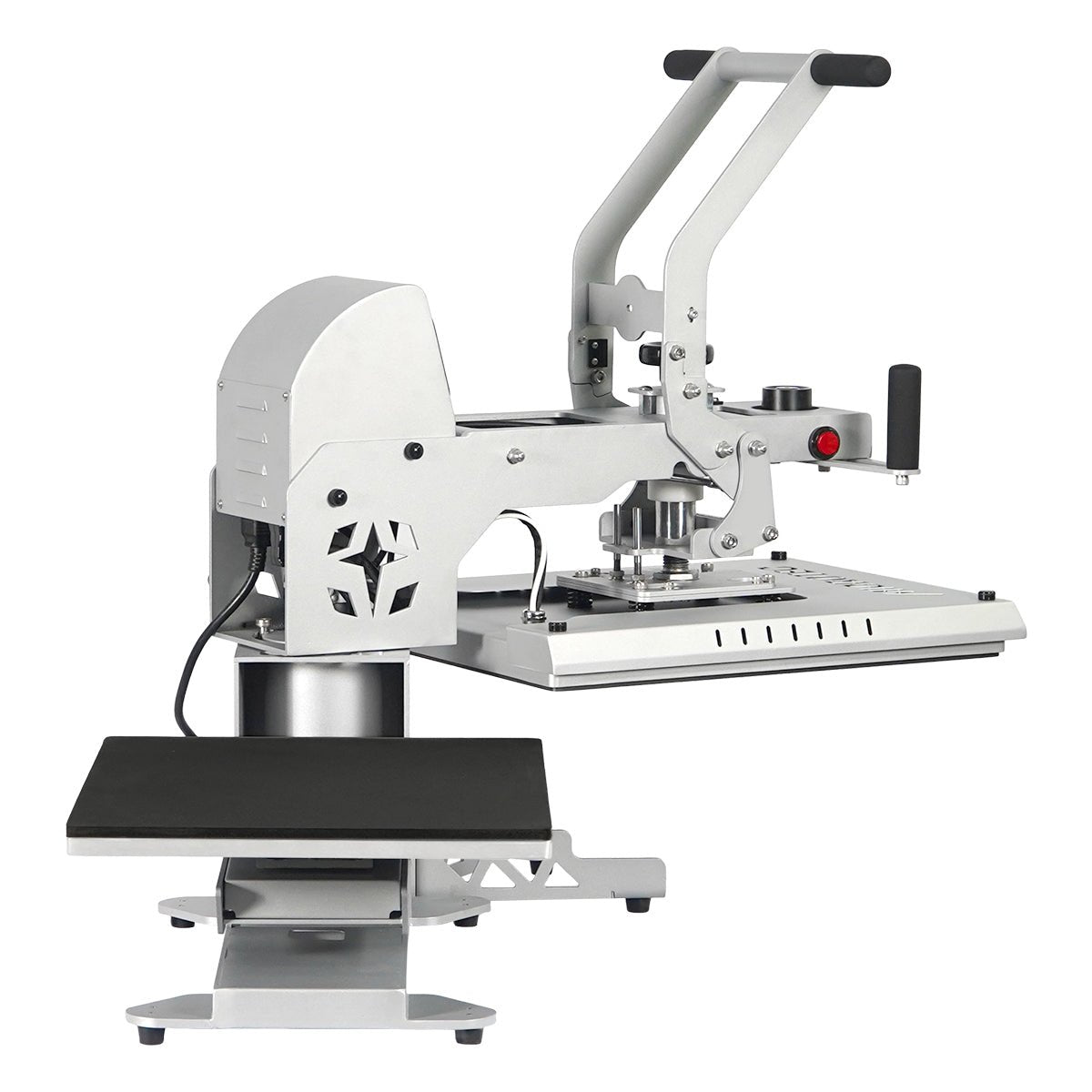

The TITAN T1620-PRO is a practical and efficient swing-away heat press designed for professional textile finishing and transfer printing. With a 16" x 20" working area, it is well suited for larger designs and everyday production needs.

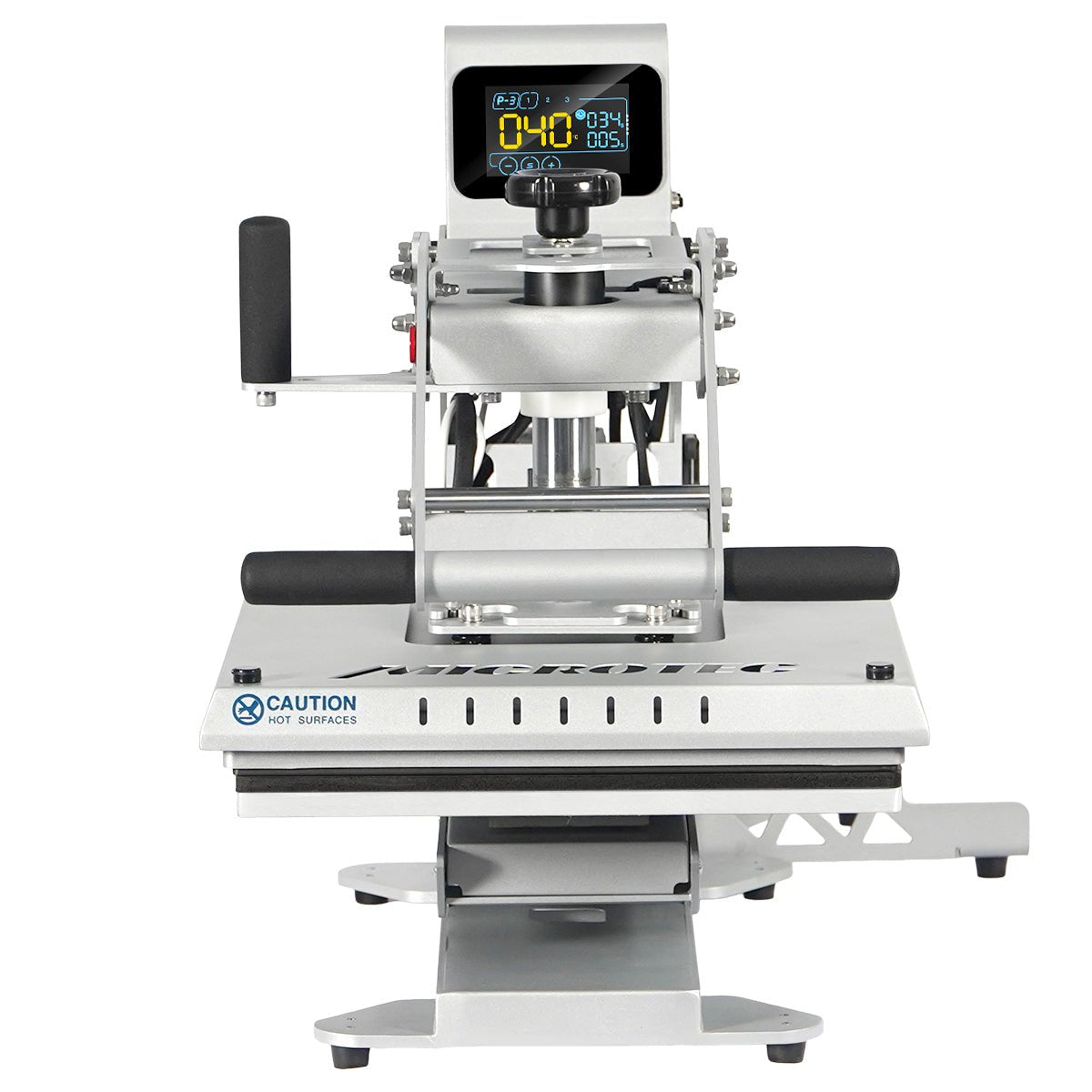

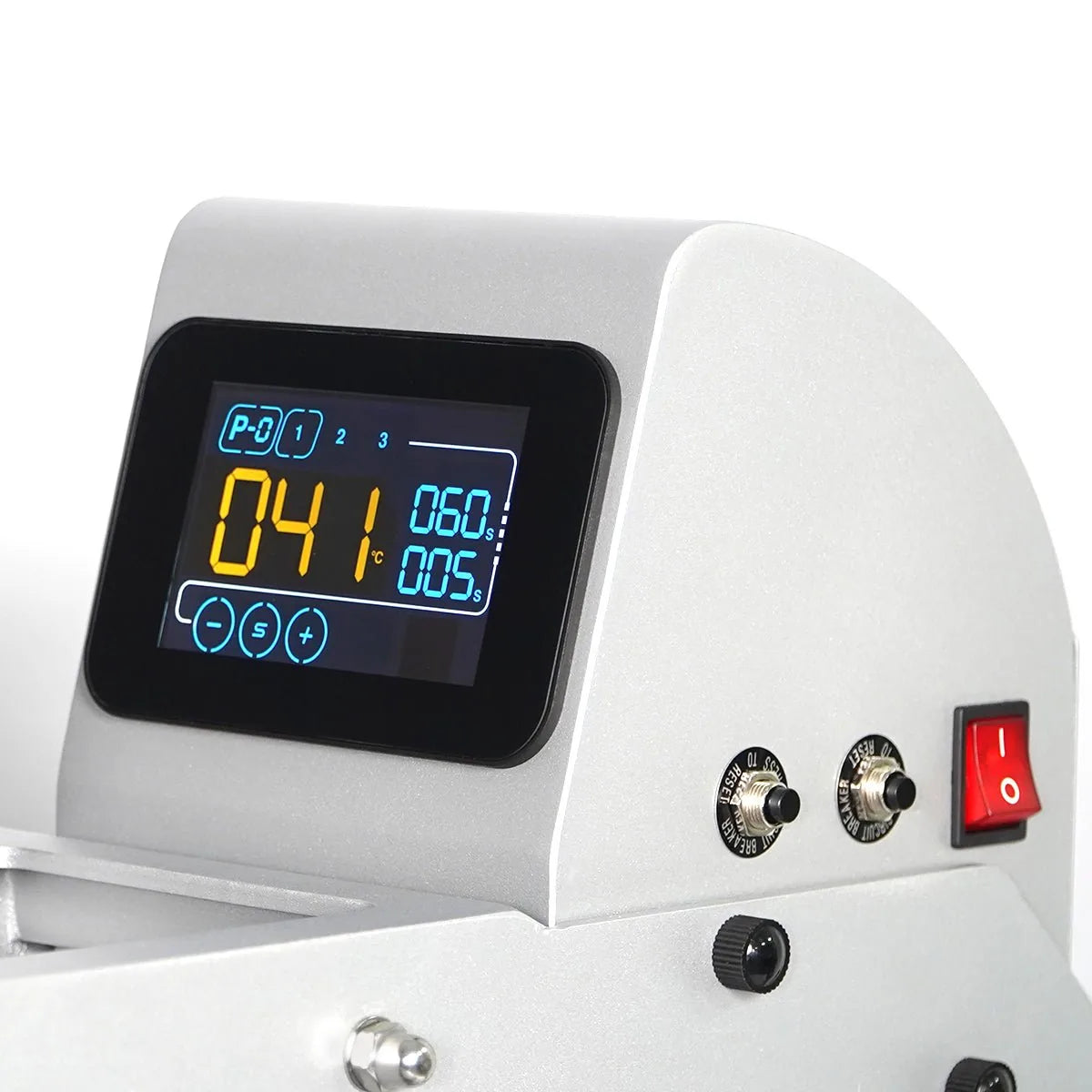

The T1620-PRO supports all common transfer applications, including flex, flock, sublimation, and DTF transfers. Its advanced touchscreen control system features pressure detection and three memory preset functions, allowing users to save commonly used settings for faster and more convenient operation. Time and temperature adjustments are simple and intuitive, helping improve daily consistency and ease of use.

Built with a modular design, the machine is easy to adapt for different production needs. It can also be upgraded with optional accessories such as interchangeable platens, slide extension, or a membrane heating plate for greater flexibility and productivity.

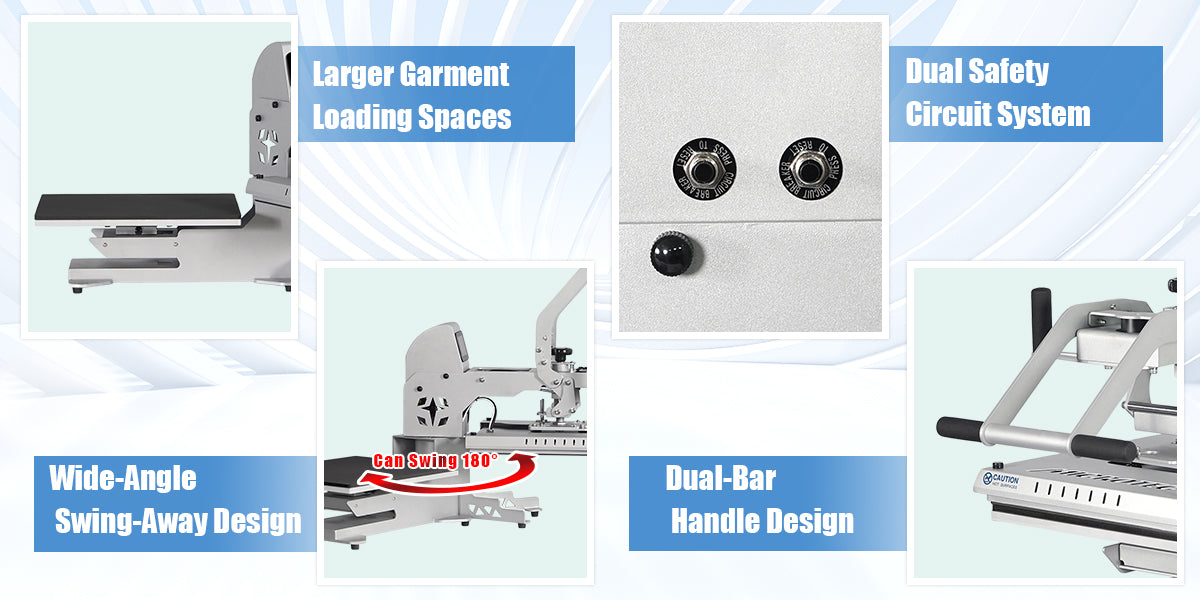

Our heat press is designed with two circuit breakers to enhance system reliability. This redundant configuration ensures that if one breaker becomes inoperative, the second breaker can maintain protection and allow continued operation. This design reduces unexpected downtime and supports stable, uninterrupted production

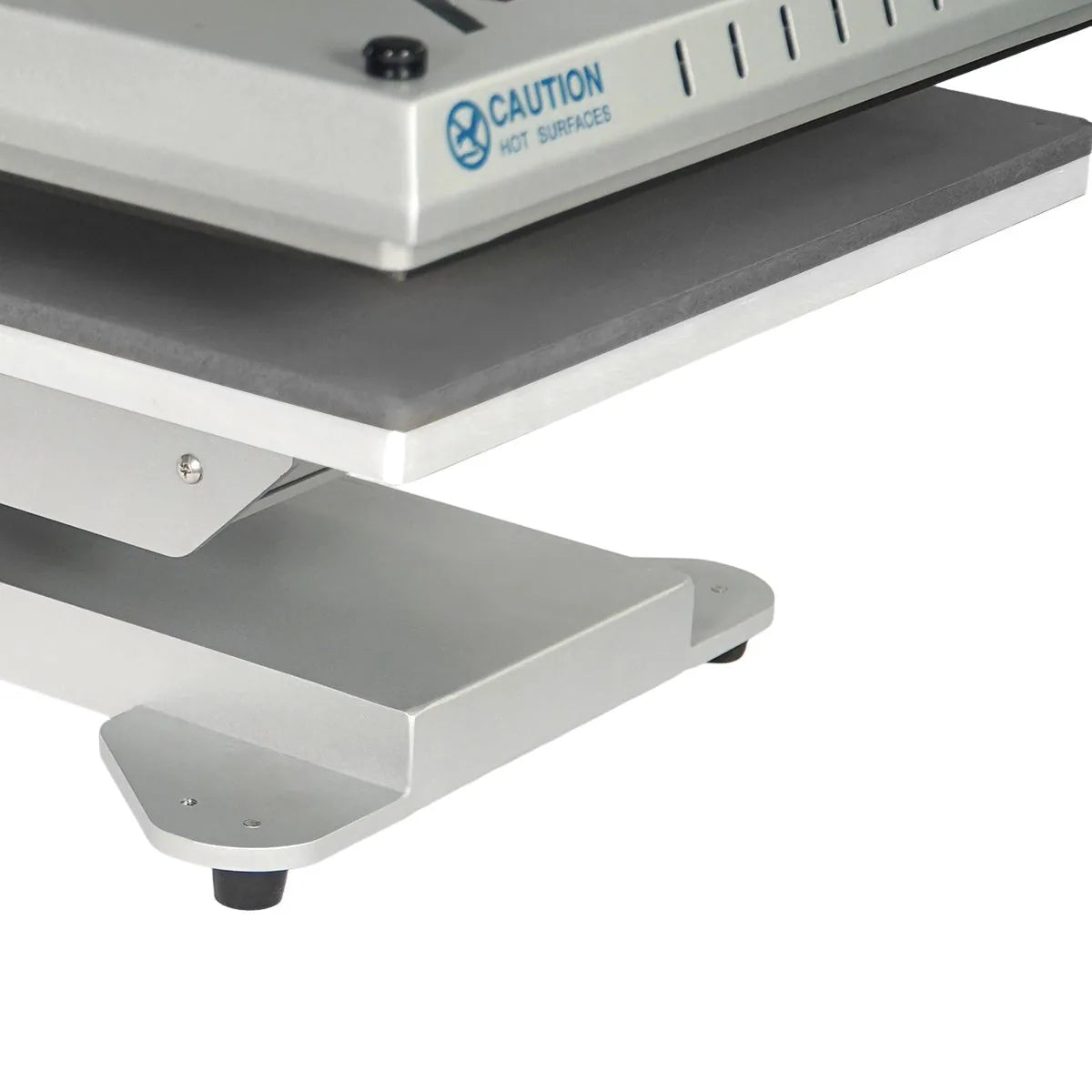

With auto-open function, adjustable pressure, and a high-quality heating platen with protective cover, the TITAN T1620-PRO is a reliable solution for users who want solid performance, easy operation, and upgrade flexibility in one machine.

TITAN Pro 16” x 20” Auto Open Swing Away Heat Press

$1,590.00 USD $1,799.00 USD

$1,590.00 USD

Exclusive Offer

Talk to our team of experts to get 1-on-1 personalized information and have your questions answered in real time!

Schedule A Call

Specifications

Workstation Count	1
Platen Size	15.7" x 19.7"
Production Capacity	Up To 120 Units/hour*
Temperature Range	32-446°F
Time Range	0-999 Seconds
Shipping Size	Carton 1: 25" x 22" x 16" / Carton 2: 35" x 19" x 27"
Air Requirements (CFM)	0.0 CFM
Power Consumption	1700W
Voltage	120v
Amps	14.2A
Machine Dimensions	38.6" x 19.7" x 32.5"
Method of Operation	Auto-Open & Swing-Away
Machine Line	Titan
Shipping Weight	163 lb
Net Weight	127 lb
Color	Silver

* Calculated using DTF film

TITAN Pro 16” x 20” Auto Open Swing Away Heat Press

1 Workstation Heat Press

MICROTEC USA

Buy TITAN Pro 16” x 20” Auto Open Swing Away Heat Press

32-446°F

Max Temperature

Auto-Open & Swing-Away

Operation

Up to 120

Units an Hour

Calculate Your Return on Investment

TITAN Pro 16” x 20” Auto Open Swing Away Heat Press

Input Parameters

Number of Presses

Items to Produce

Item Sale Price ($)

Cost of Goods ($)

Labor Cost ($/hr)

Work Hours per Day

ROI Analysis

Total Revenue

$0

Total Costs

$0

Days to Produce

0

Hours to Produce

0

Net Profit

$0

Profit Margin

0%

Time to ROI

0 Days

Daily Profit After ROI

$0

Features

Built for Years of Daily Use : A reinforced structural design gives the press the strength and stability needed for long-term production use.

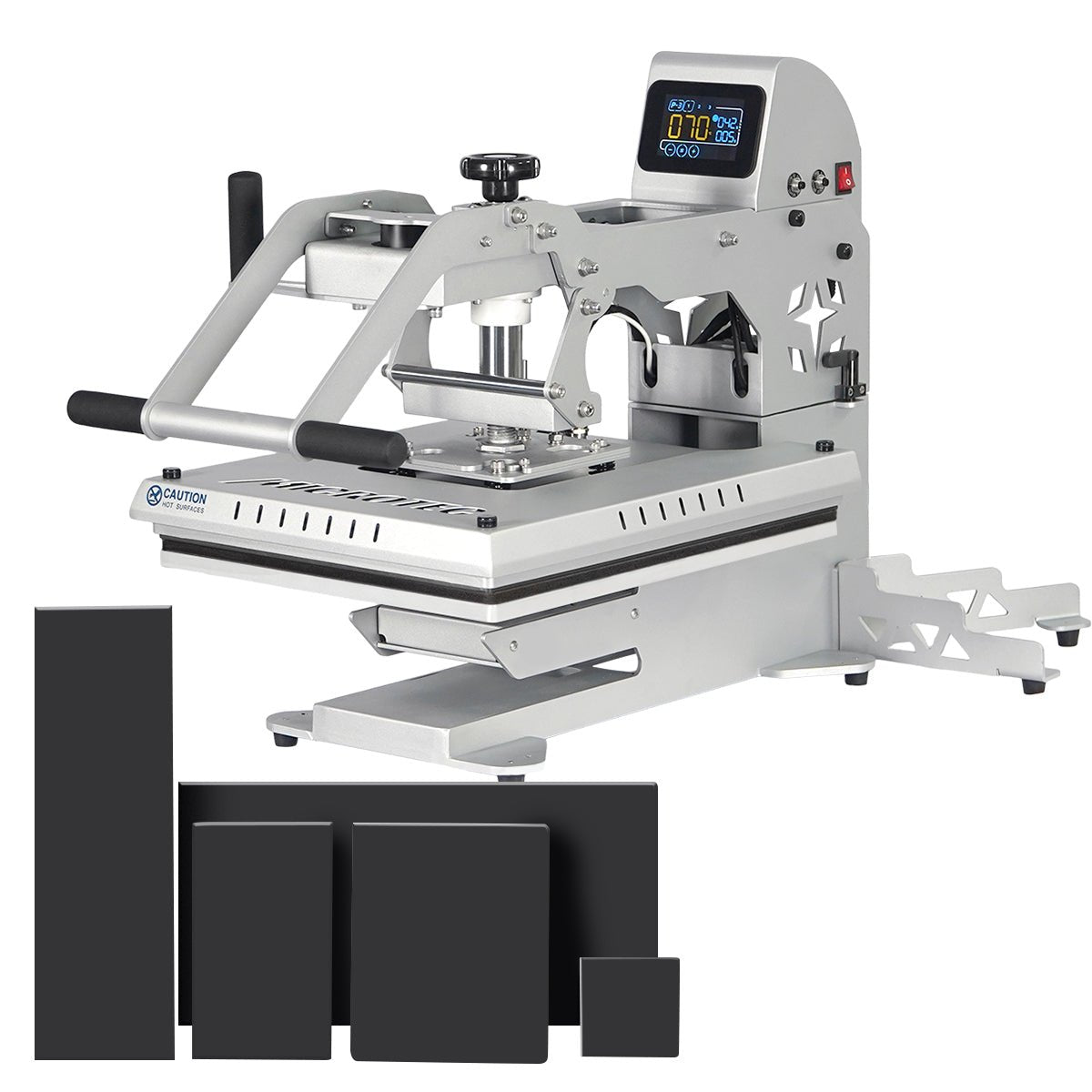

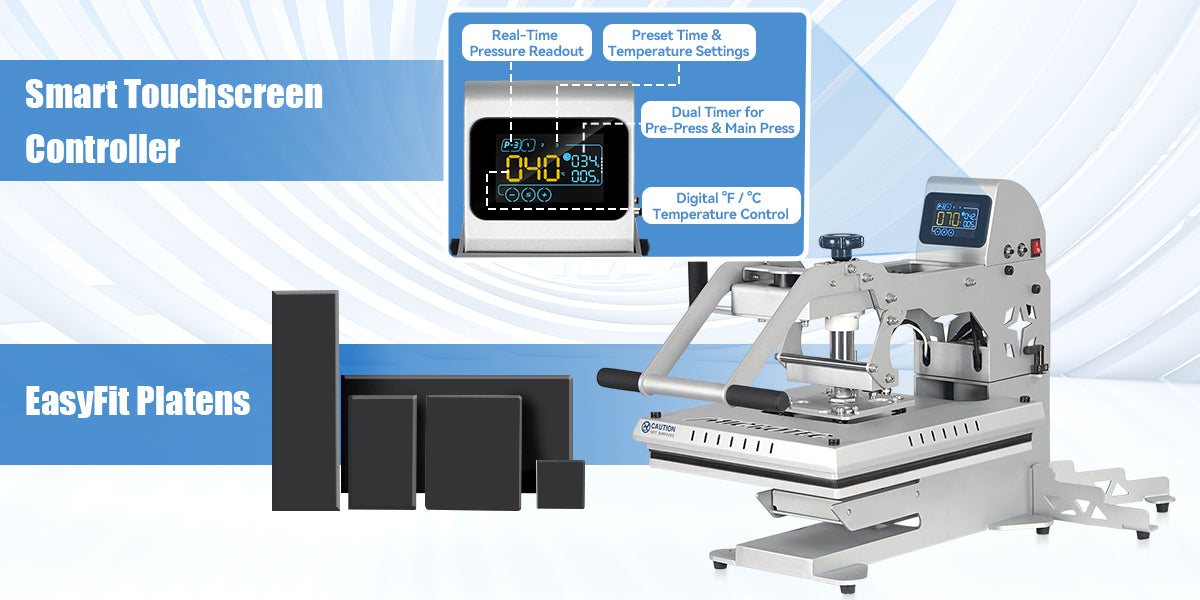

Up to 12 Interchangeable Lower Platens : Compatible with up to 12 optional lower platen sizes, making it easier to handle sleeves, pant legs, bags, labels, youth garments, and hard-to-reach print areas.(Optional platens sold separately.)

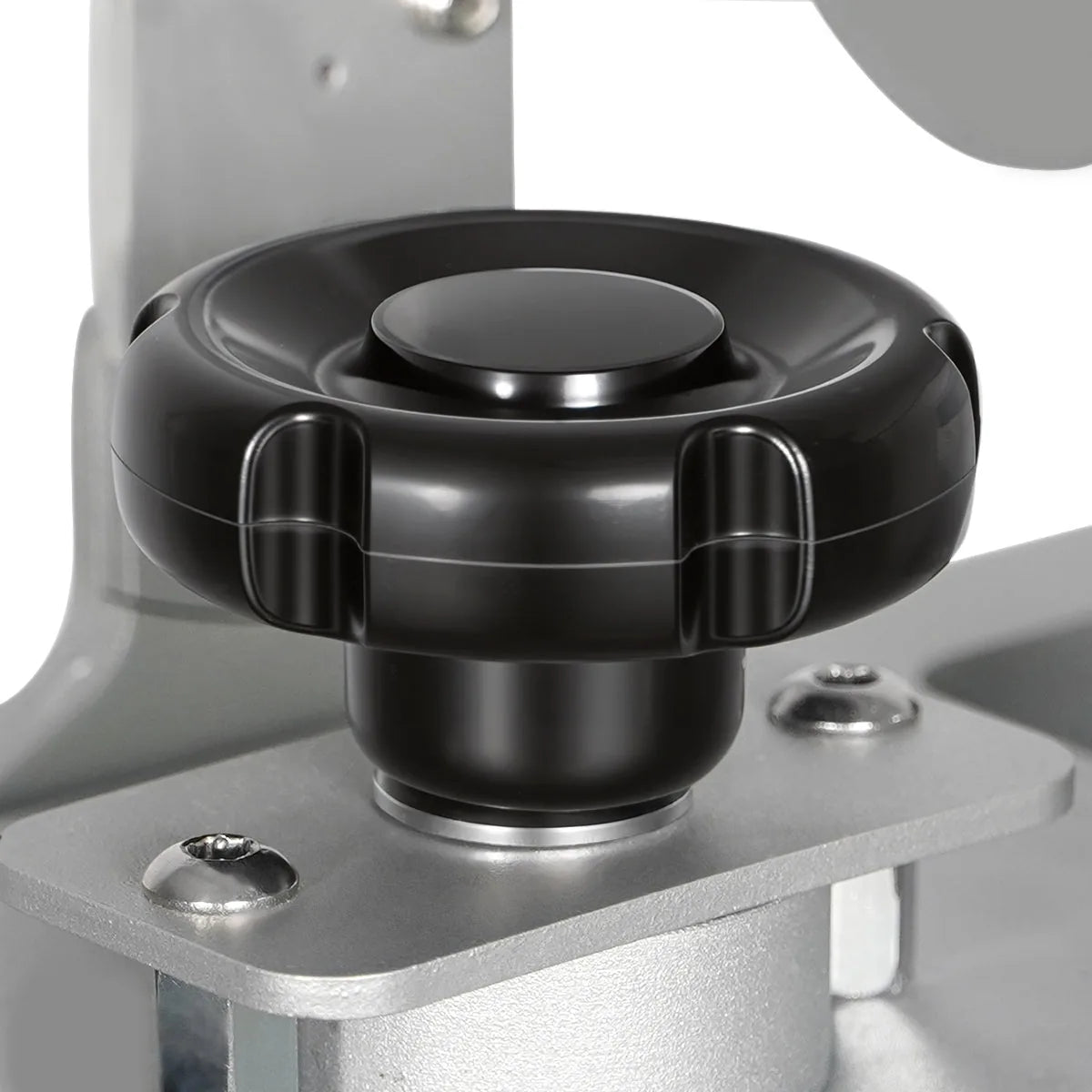

Pressure Readout for Repeatable Results : Built-in pressure detection helps you identify the right pressure setting for each substrate, so you can repeat successful applications with greater confidence.

Thicker Platen. Faster Heat-Up. Better Transfers : The upgraded heating platen is 21% thicker than the VECTOR Series, helping maintain more even heat across the surface. Combined with higher-output heating elements, it heats up faster and keeps your press ready for cleaner, more consistent transfers.

Over 100° Swing-Away Opening for Safer Loading : The wide swing-away design opens more than 100°, giving you extra room to place and align items safely without working directly under the heated platen.

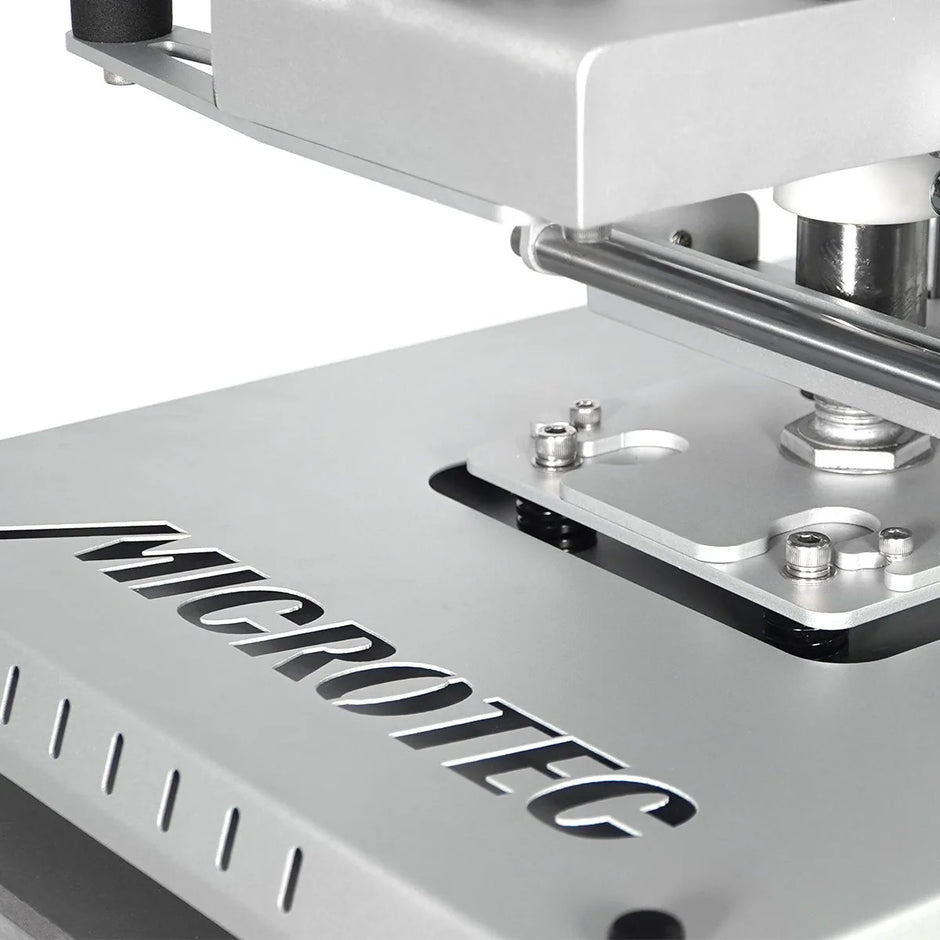

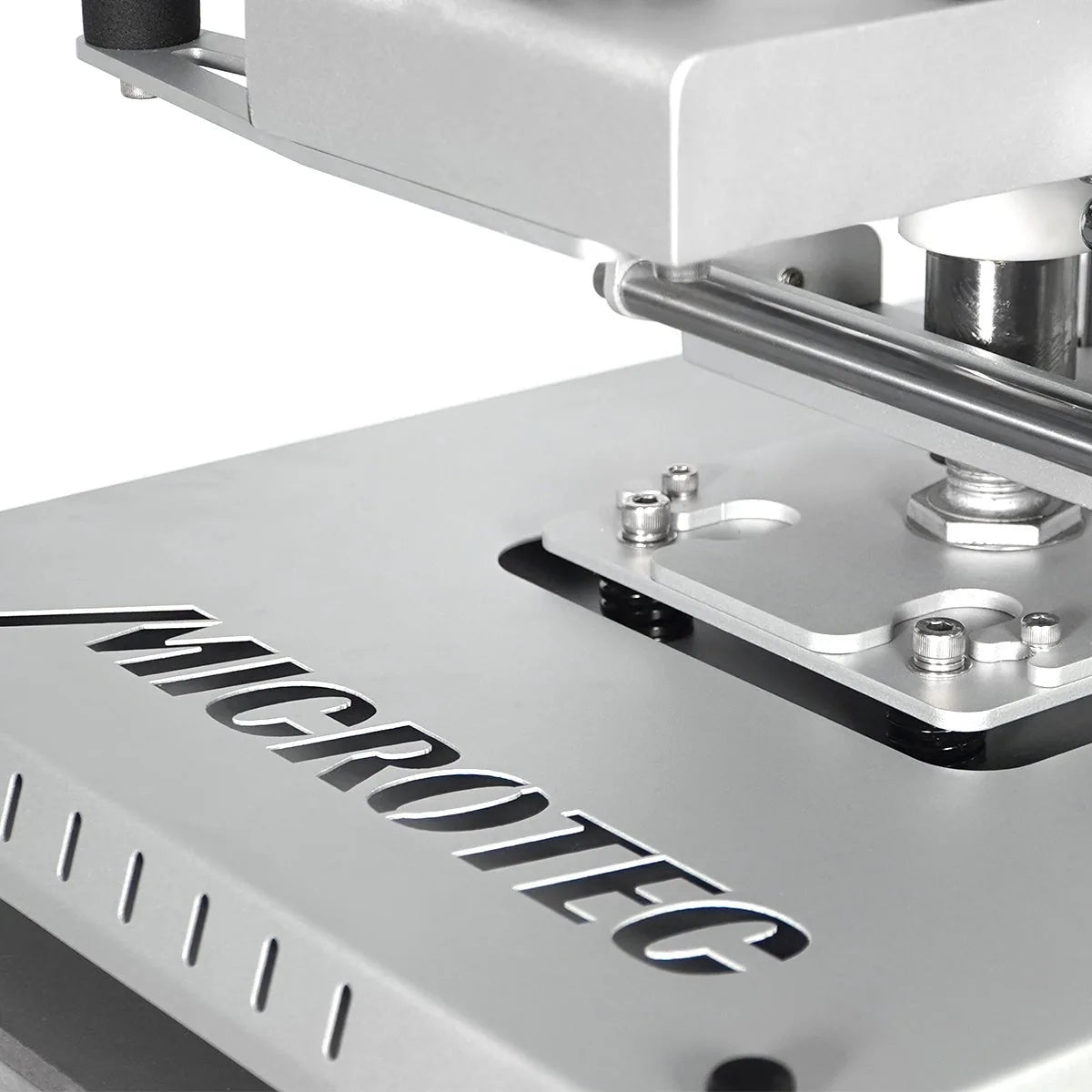

Vertical Pressing Motion for More Stable Pressure : The straight up-and-down platen movement applies pressure more evenly, making it ideal for thicker substrates such as wood, ceramic tiles, crystal, and other rigid materials.

Lifetime technical support from Microtec USA

Lifetime warranty on the heating plate
