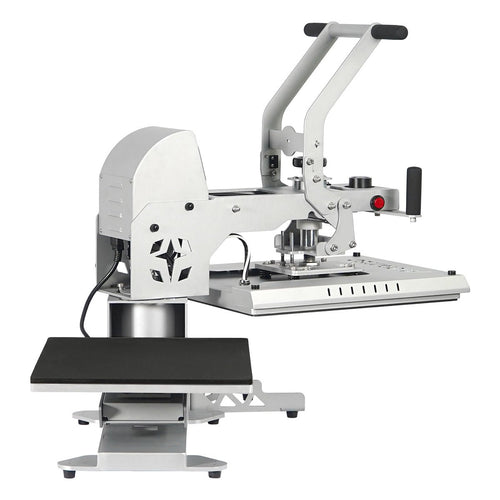

TITAN Pro 16” x 20” Auto Open Swing Away Heat Press
Delivery options
This machine ships as freight (shipping weight over 120 lb). Residential addresses and locations without a forklift or loading dock usually need liftgate service so the carrier can lower the crate to ground level.
Liftgate fee: $150 per order (only if you need it).
Couldn't load pickup availability

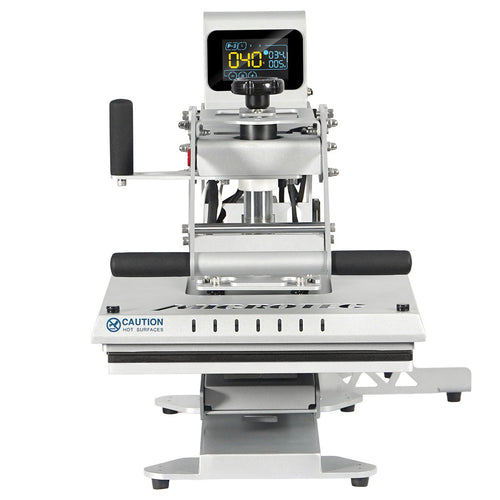

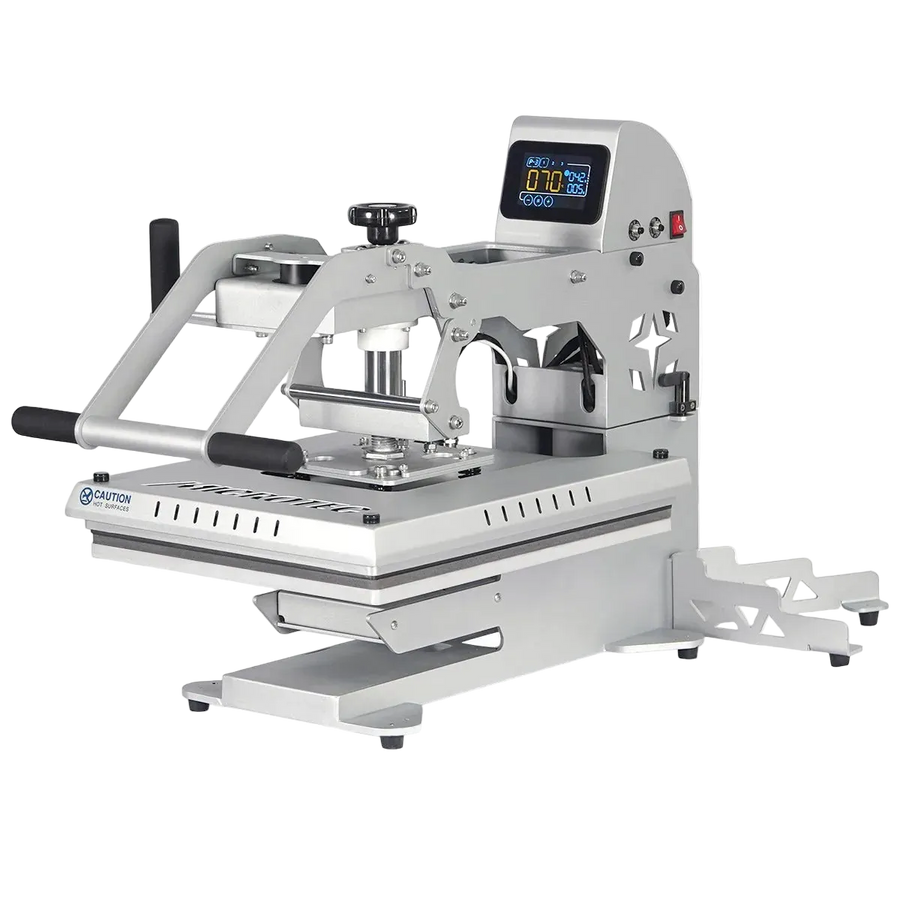

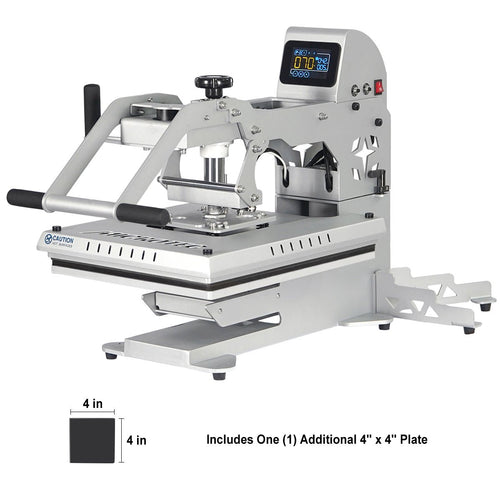

The TITAN T1620-PRO is a practical and efficient swing-away heat press designed for professional textile finishing and transfer printing. With a 16" x 20" working area, it is well suited for larger designs and everyday production needs.

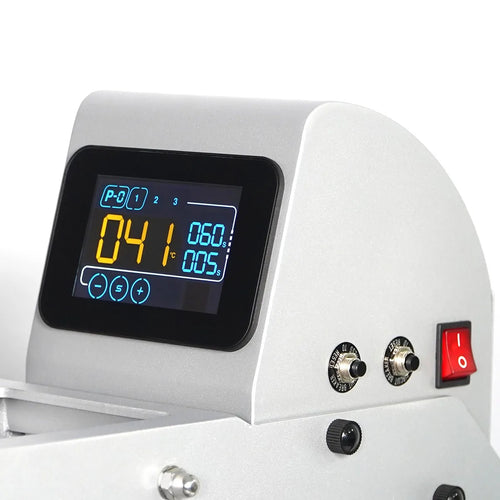

The T1620-PRO supports all common transfer applications, including flex, flock, sublimation, and DTF transfers. Its advanced touchscreen control system features pressure detection and three memory preset functions, allowing users to save commonly used settings for faster and more convenient operation. Time and temperature adjustments are simple and intuitive, helping improve daily consistency and ease of use.

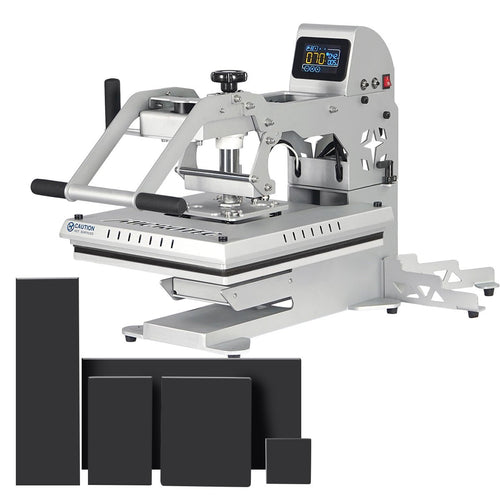

Built with a modular design, the machine is easy to adapt for different production needs. It can also be upgraded with optional accessories such as interchangeable platens, dual-station slide extension (coming soon), or a membrane heating plate for greater flexibility and productivity.
Our heat press is designed with two circuit breakers to enhance system reliability. This redundant configuration ensures that if one breaker becomes inoperative, the second breaker can maintain protection and allow continued operation. This design reduces unexpected downtime and supports stable, uninterrupted production

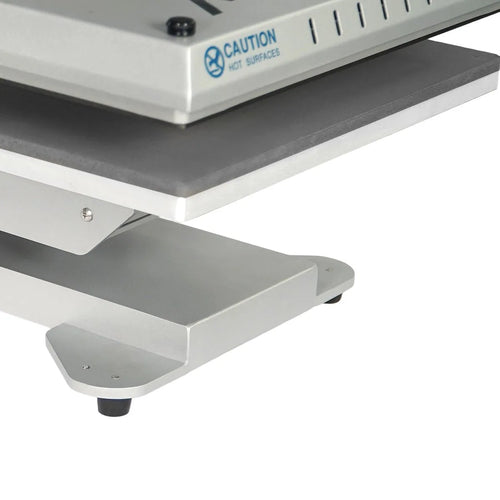

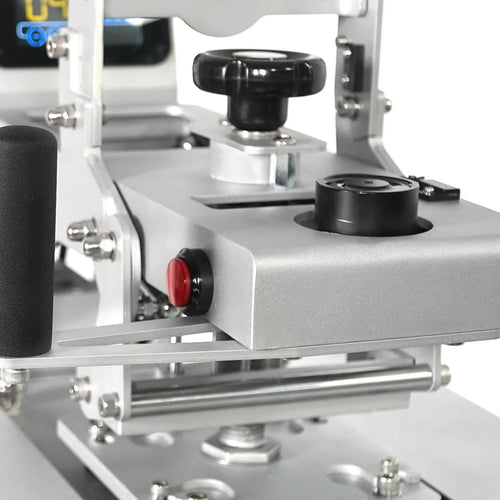

With auto-open function, adjustable pressure, and a high-quality heating platen with protective cover, the TITAN T1620-PRO is a reliable solution for users who want solid performance, easy operation, and upgrade flexibility in one machine.
Exclusive Offer
Talk to our team of experts to get 1-on-1 personalized information and have your questions answered in real time!
Specifications
| Workstation Count | Single |
| Platen Size | 15.7" x 19.7" |
| Production Capacity | Up To 120 Units/hour* |
| Temperature Range | 32-446°F |
| Time Range | 0-999 Seconds |
| Shipping Size | Carton 1: 25" x 22" x 16" / Carton 2: 35" x 19" x 27" |
| Air Requirements (CFM) | 0.0 CFM |
| Power Consumption | 1700W |
| Voltage | 120v |
| Amps | 14.2A |
| Machine Dimensions | 38.6" x 19.7" x 32.5" |
| Method of Operation | Auto-Open & Swing-Away |
| Machine Line | Titan |
| Shipping Weight | 163 lb |
| Net Weight | 127 lb |
| Color | Silver |
* Calculated using DTF film
Product manual
Download the full manual for setup, operation, and maintenance.
TITAN Pro 16” x 20” Auto Open Swing Away Heat Press
Single Workstation Heat Press
MICROTEC USA
- 32-446°FMax Temperature
- Auto-Open & Swing-AwayOperation
- Up to 120Units an Hour
