See APEX Max Roll to Roll 15” x 15” Heat Press run your transfers live at our Orange, CA showroom or on a video call.

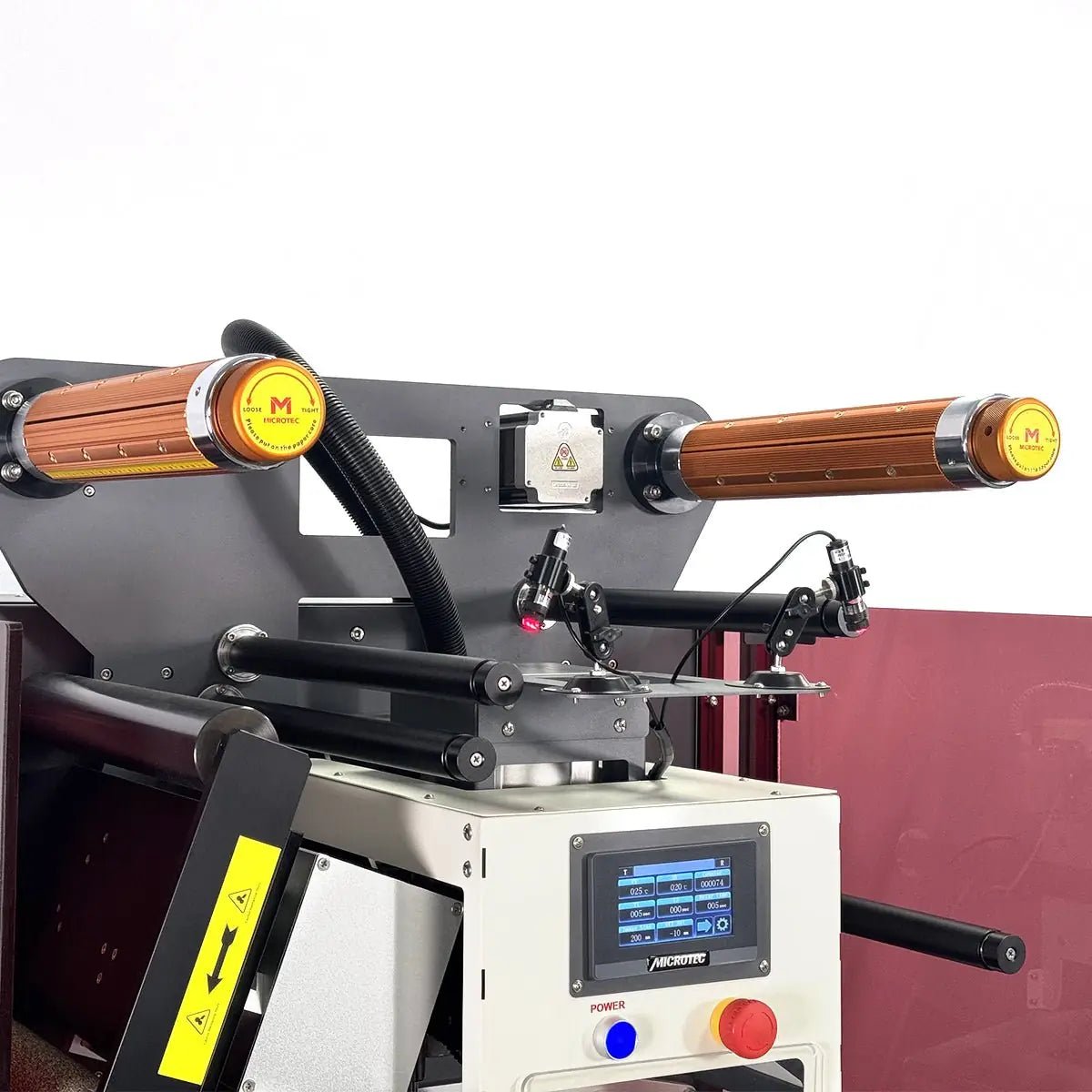

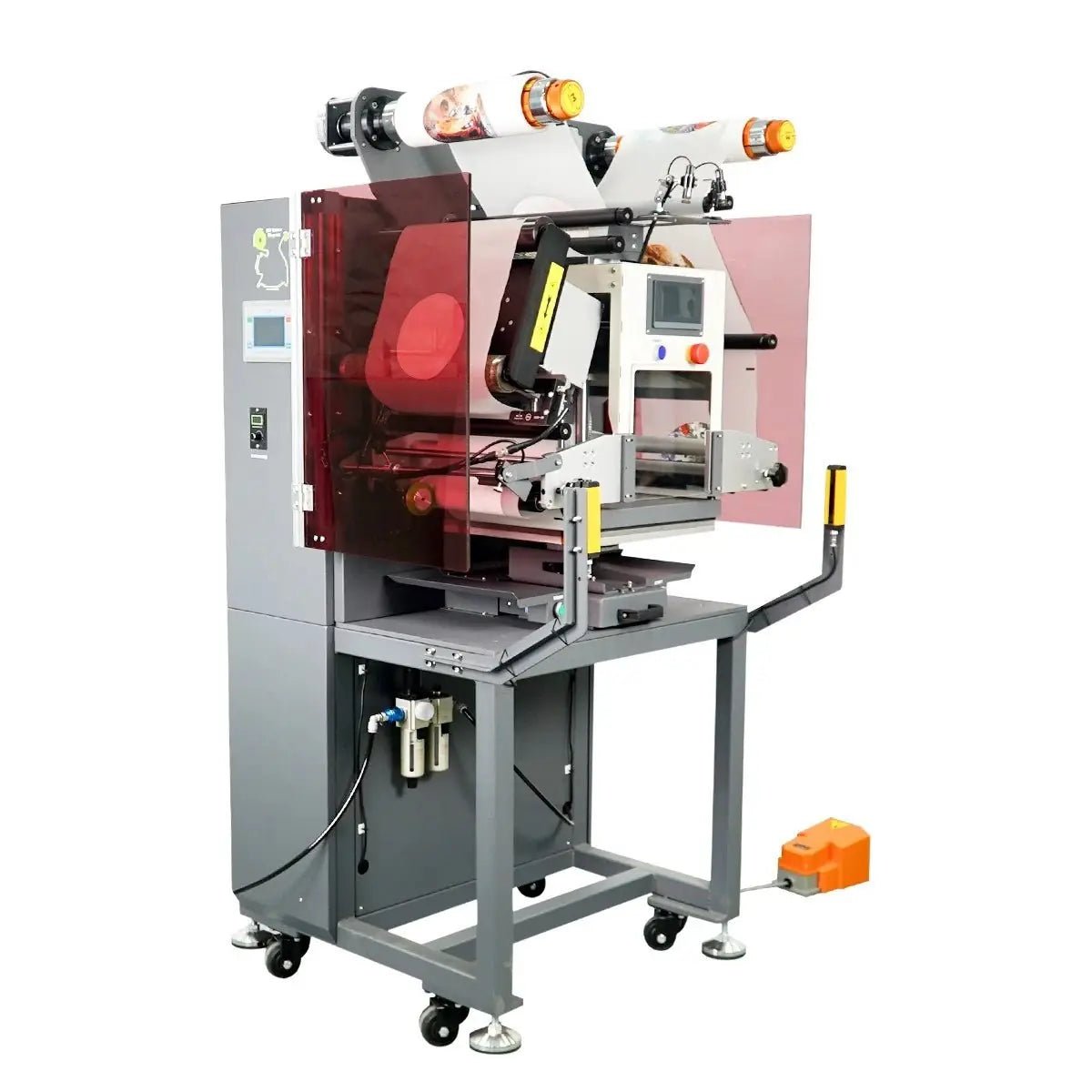

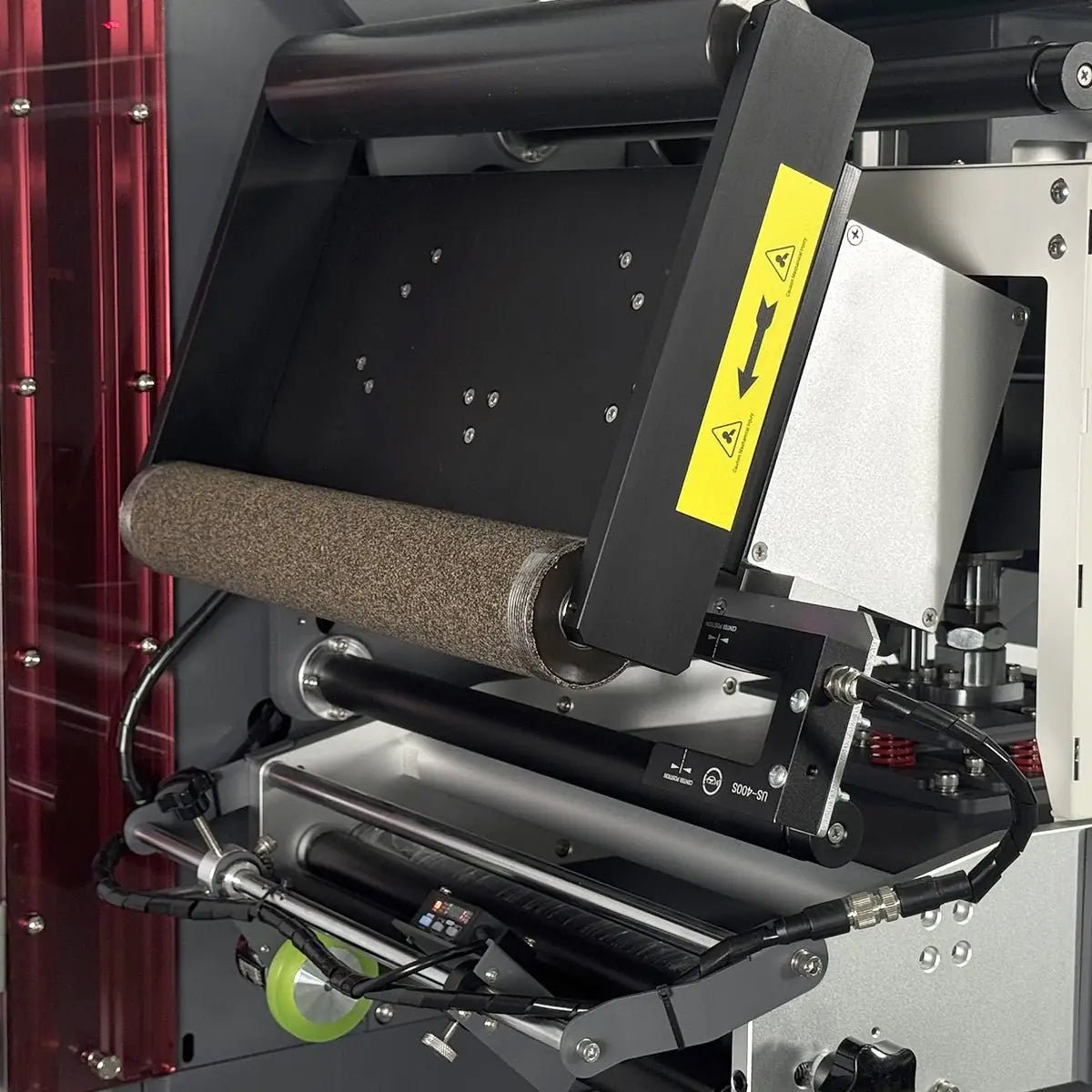

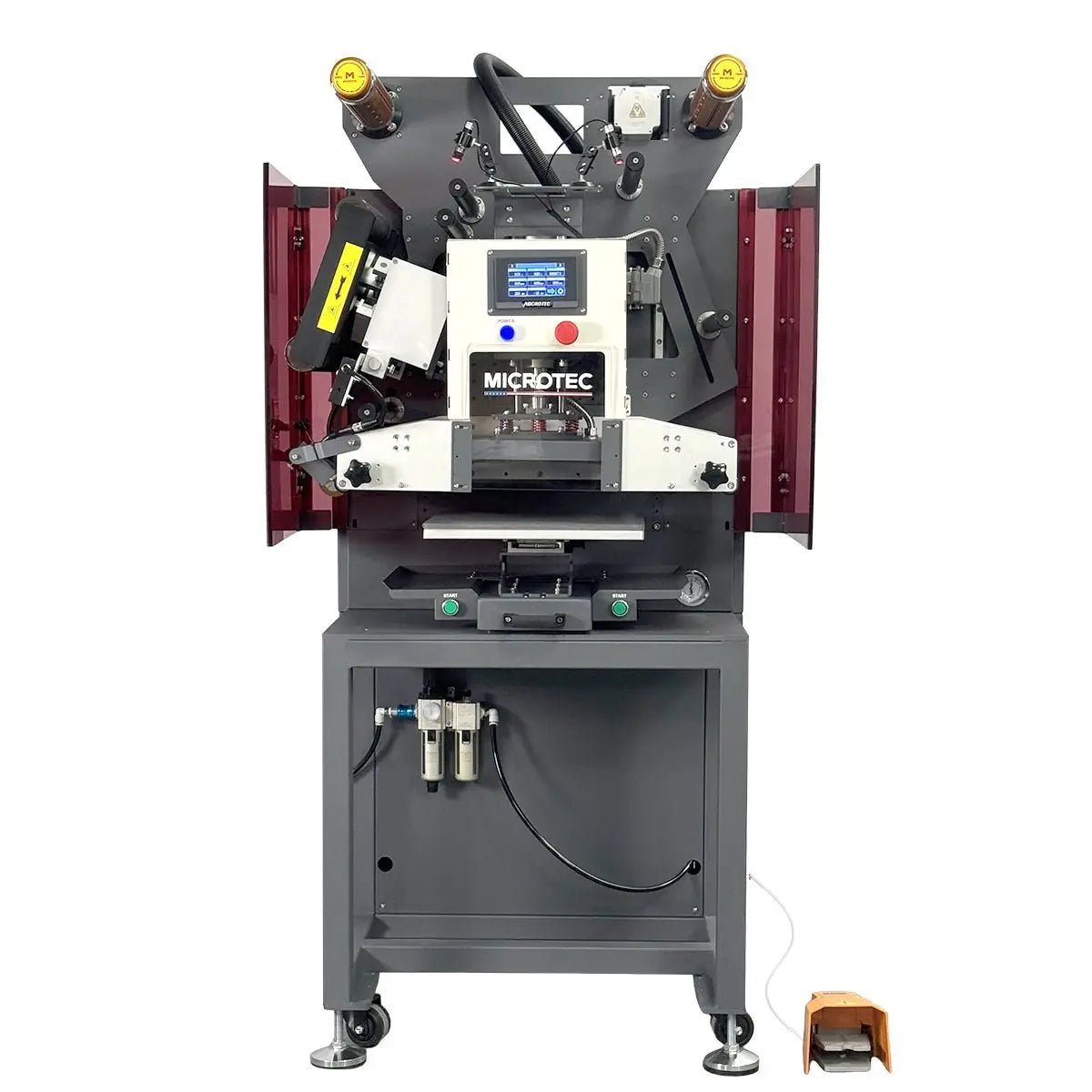

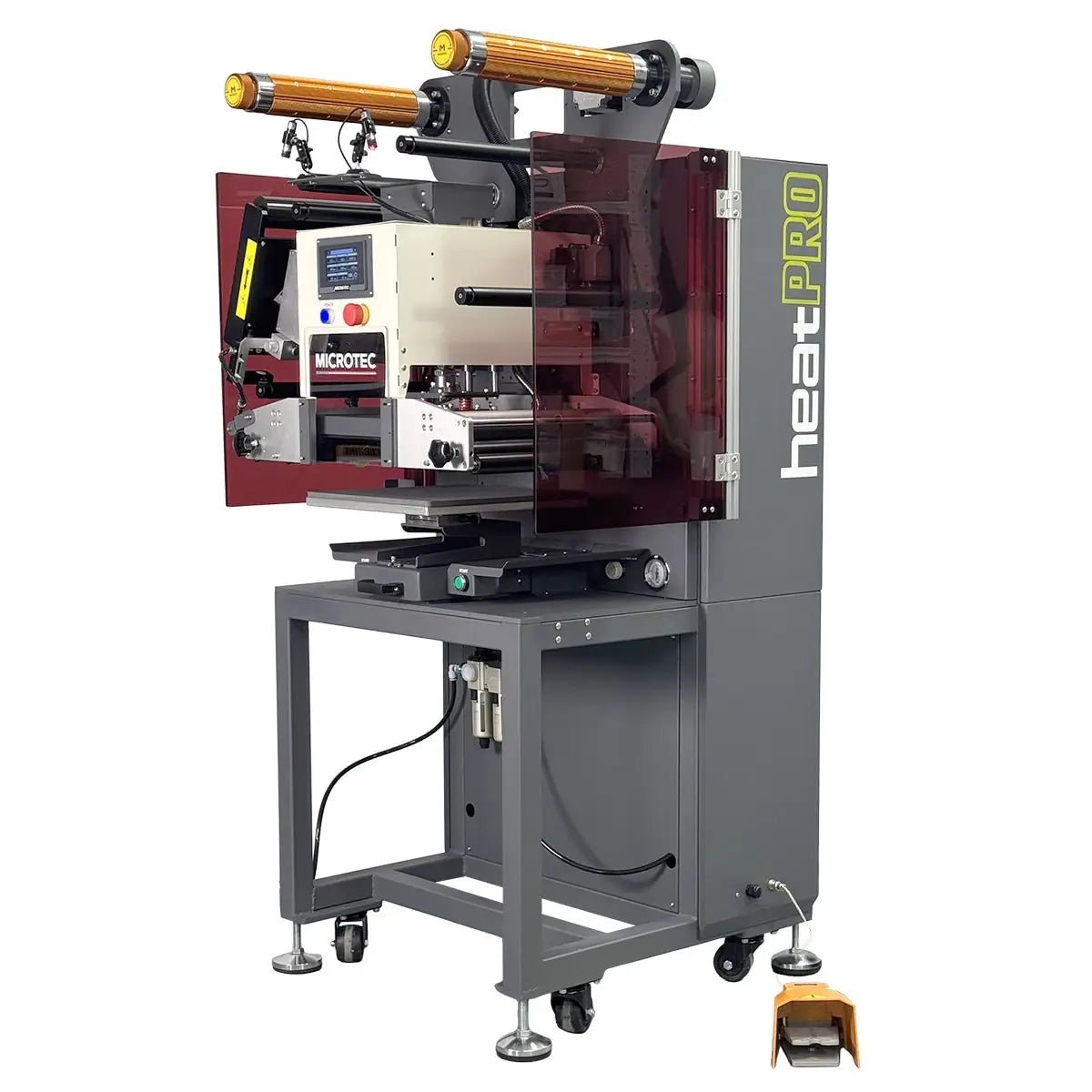

The APEX XR1515 is a fully automatic roll-to-roll DTF heat press system designed to improve efficiency, consistency, and ease of operation in high-volume garment production. Unlike traditional heat presses that require manual film placement and peeling, the XR1515 automates the entire transfer process — including film feeding, alignment, pressing, peeling, and automatic correction.

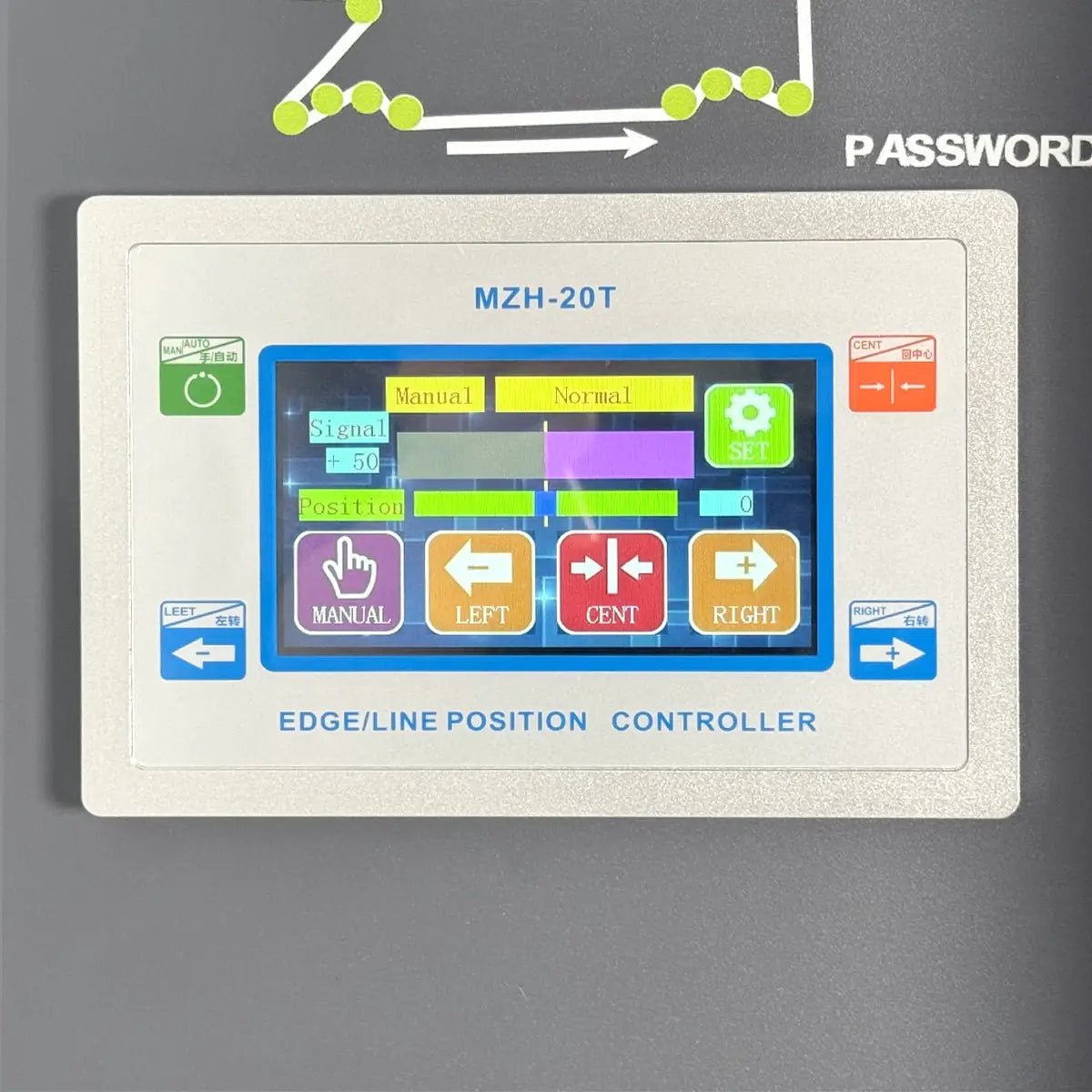

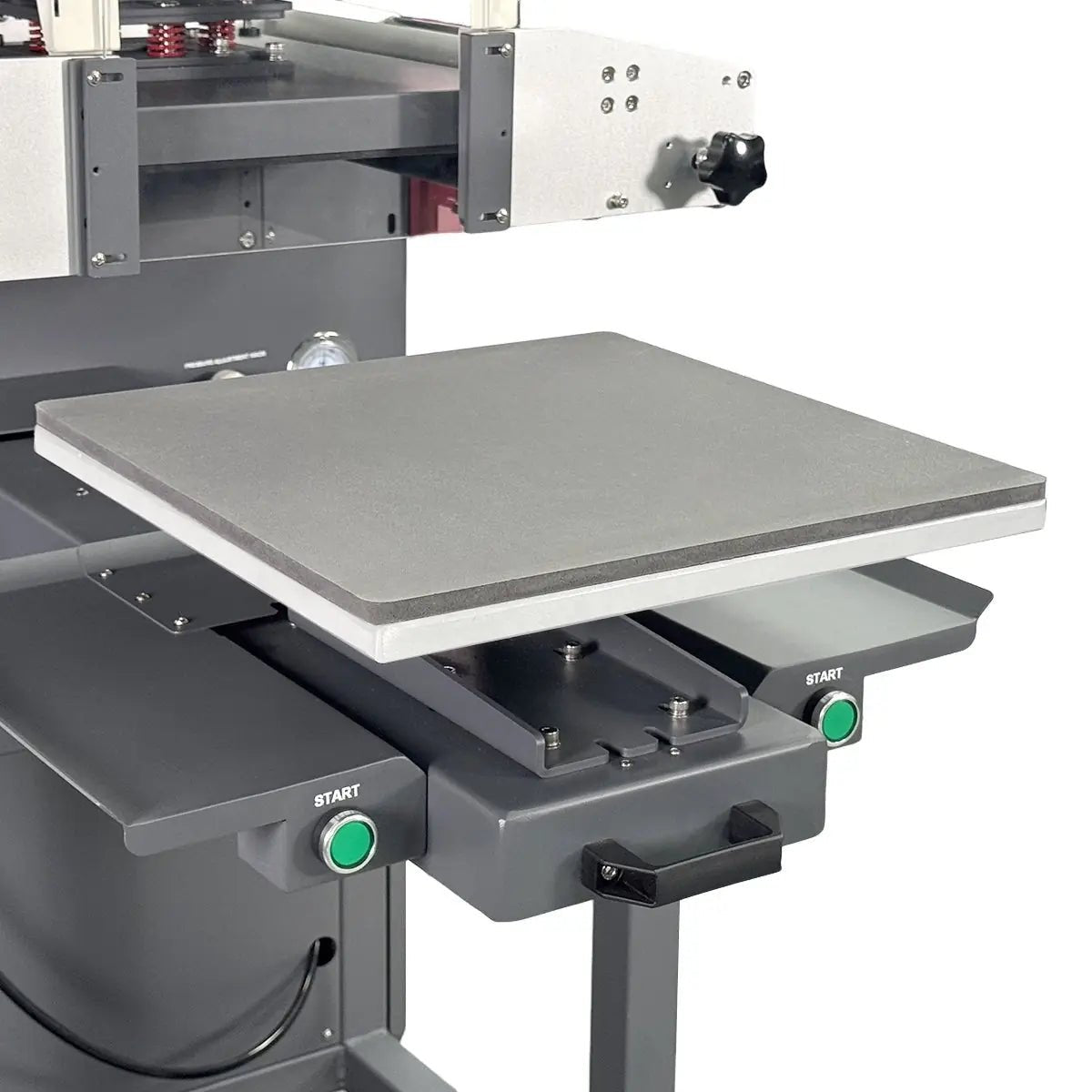

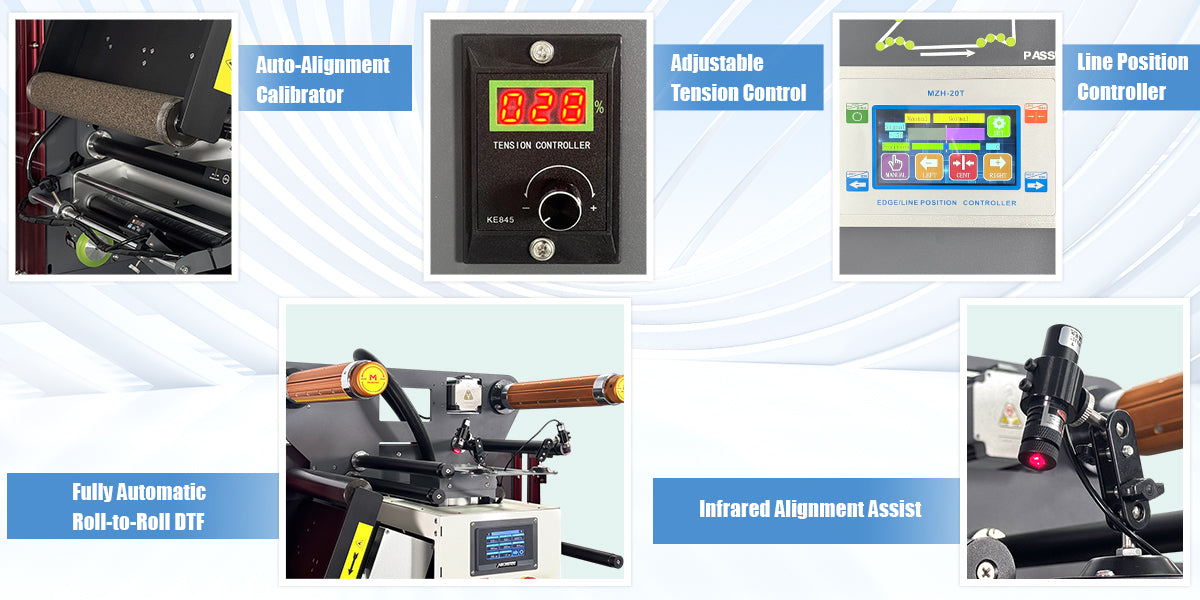

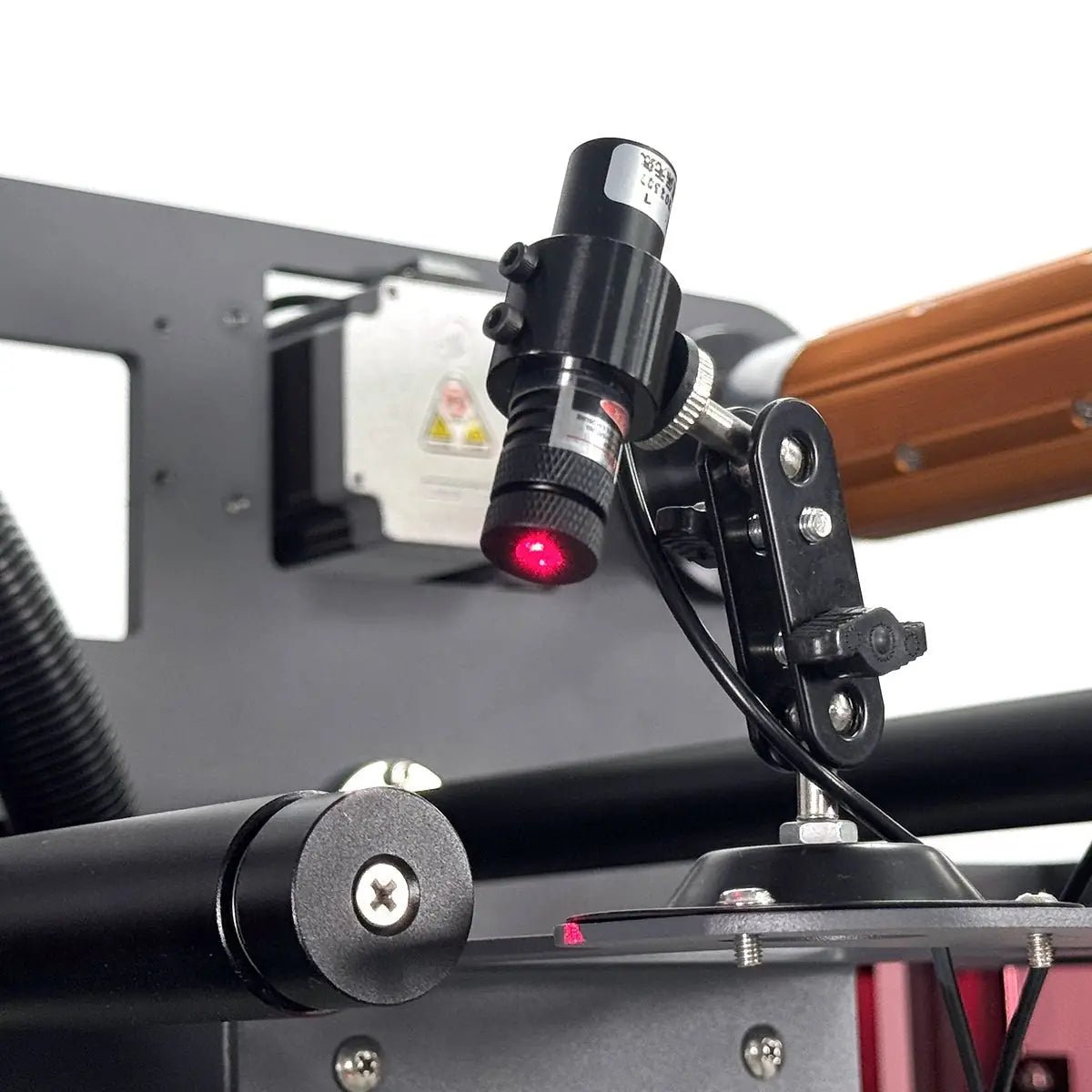

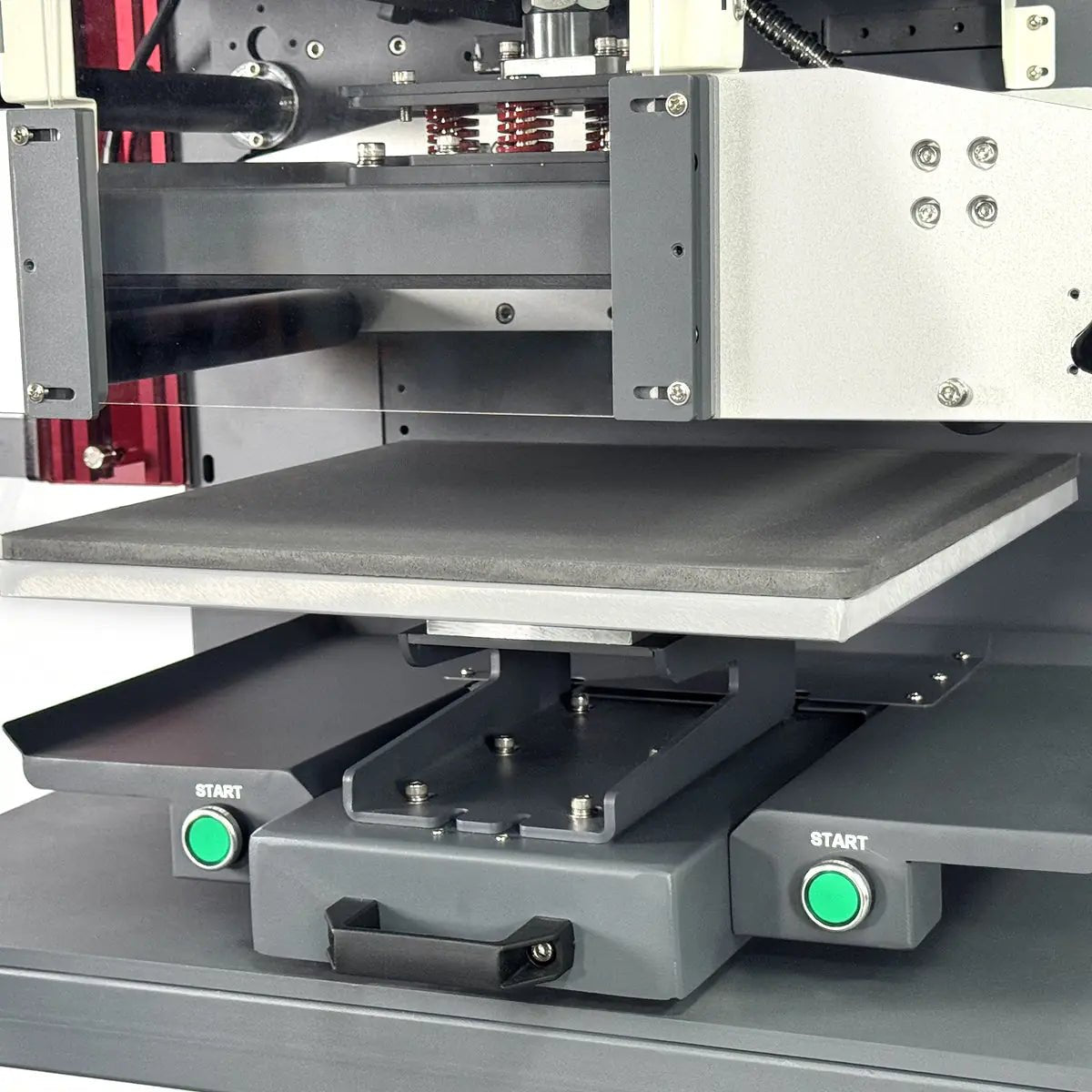

Equipped with a 15" x 15" heating platen, an automatic film correction system, and a slide-out garment loading base. Its automatic correction function helps keep the film running in the proper position, ensuring more accurate transfer placement and reducing the risk of misalignment during production.

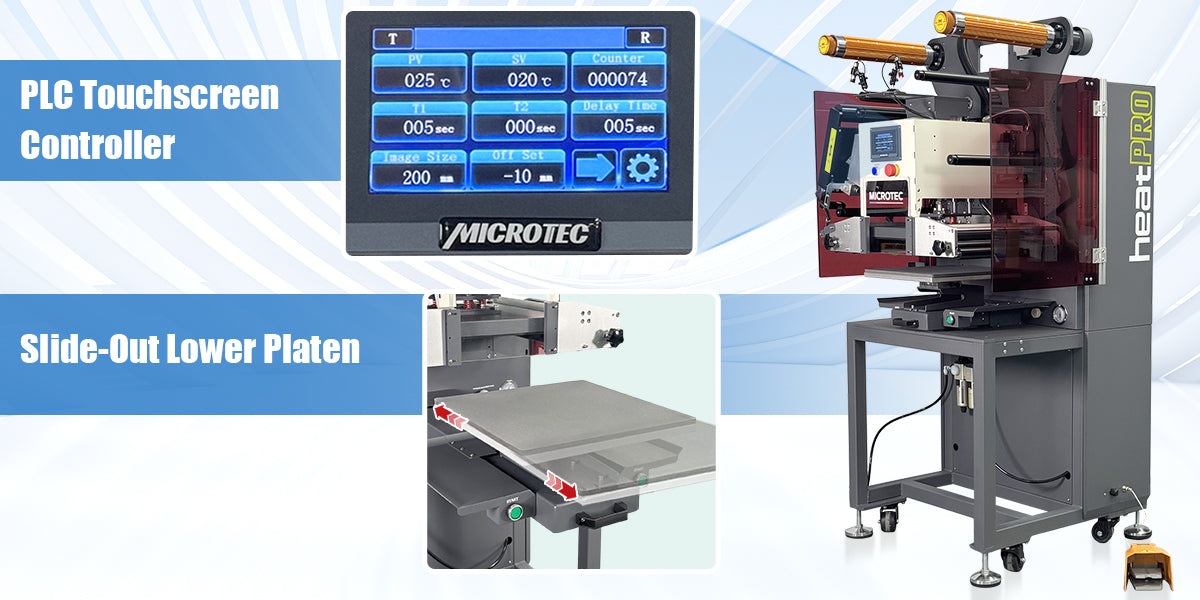

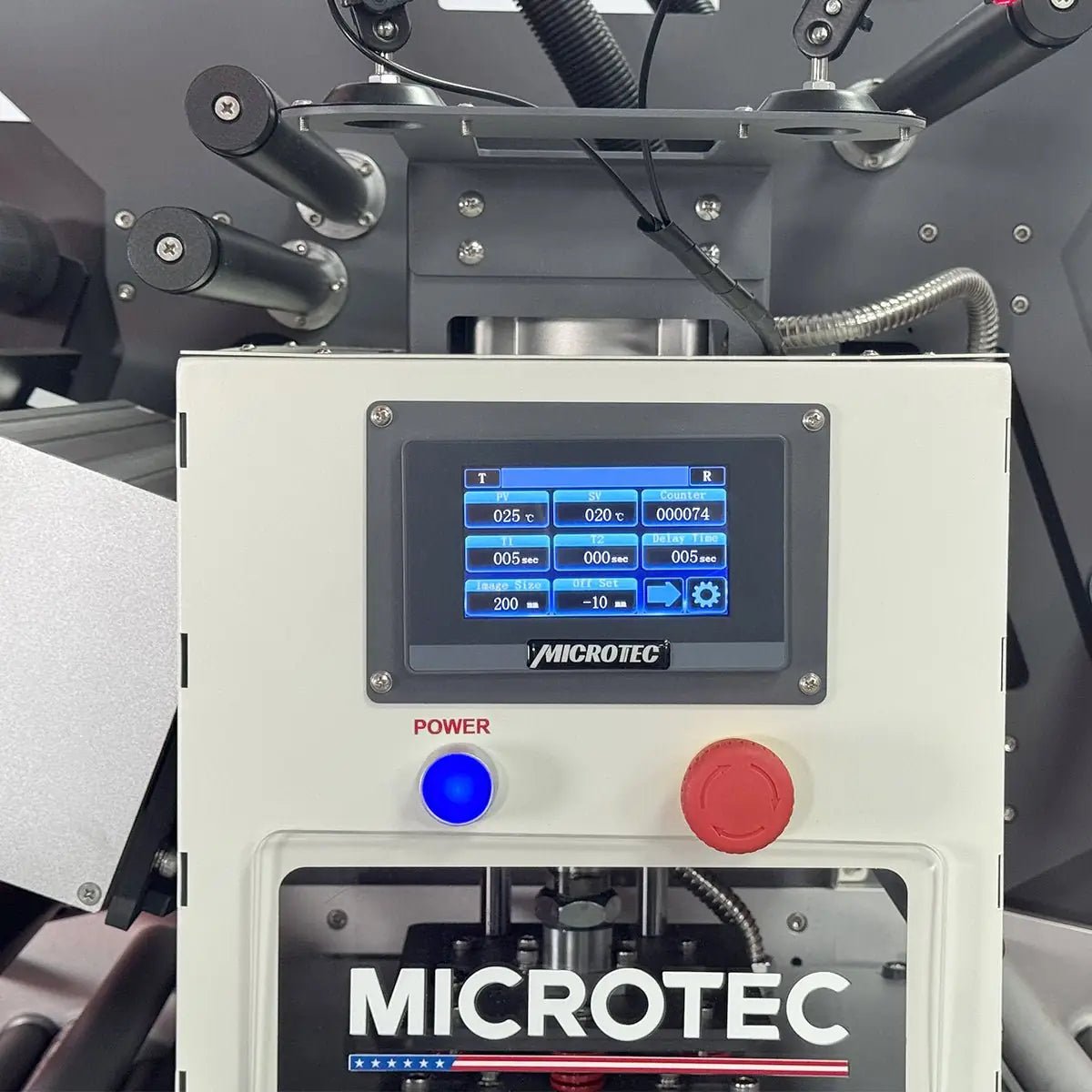

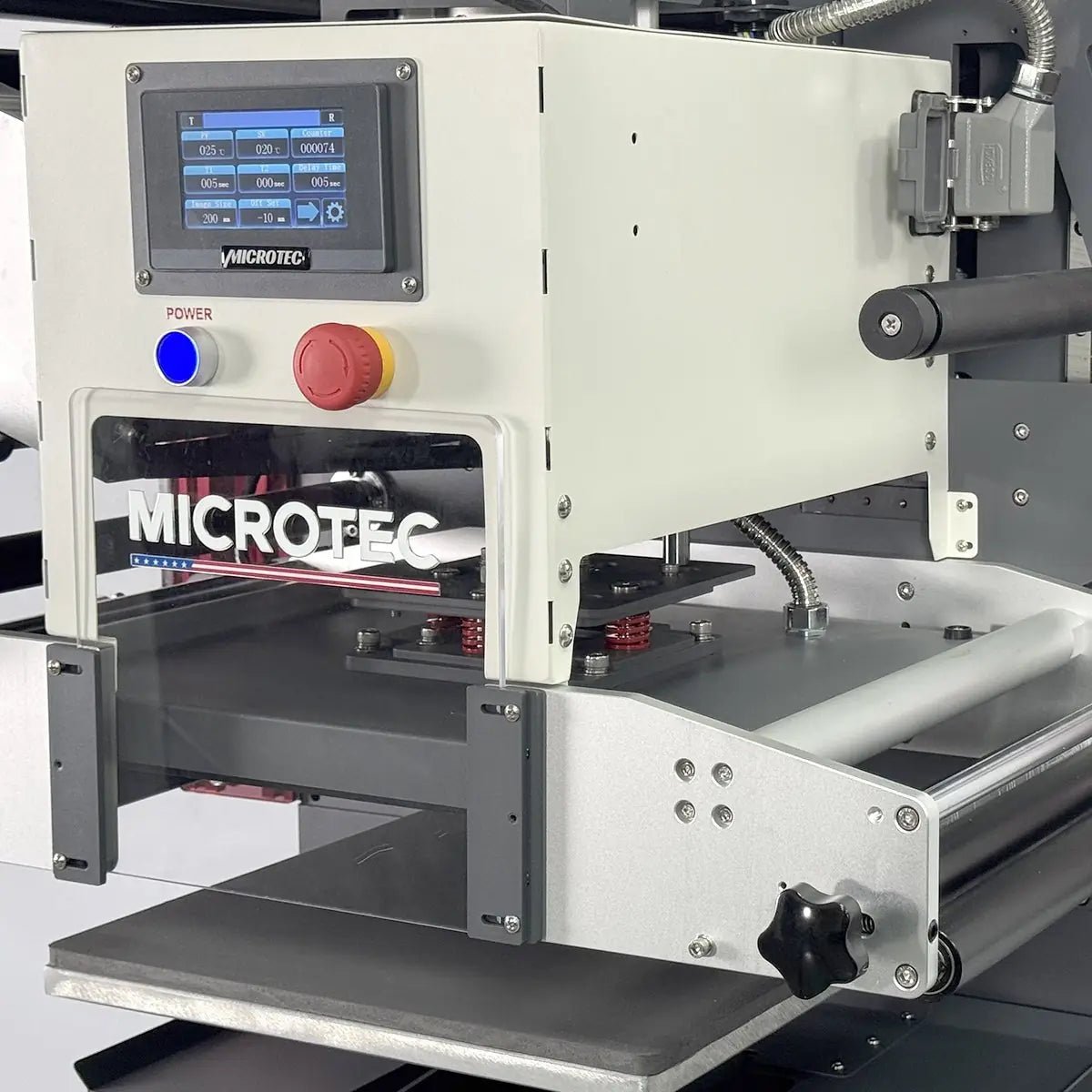

The roll-to-roll workflow provides stable and repeatable transfer positioning, helping reduce manual errors and improve overall efficiency. A powerful touchscreen PLC control system makes operation more convenient and intuitive, allowing users to manage settings and production functions more easily.
Capable of producing approximately 230–250 garments per hour, the XR1515 is an ideal solution for DTF print shops, garment factories, and businesses looking to scale transfer production with greater speed, consistency, and control.
APEX Max Roll to Roll 15” x 15” Heat Press
MICROTEC USA, continuous-cycle automation engineered to keep garments moving.
23+
Years building heat presses with industrial manufacturing roots
30+
Machines in the U.S. lineup, entry level to full automation
1800ft²
U.S. showroom in Orange, California
100%
U.S.-based service, support, and warranty path
MicroTec USA supplies professional heat presses trusted by decorators who need consistent temperature, pressure, and throughput, without guessing on support after delivery.
| Workstation Count | Single |
| Platen Size | 14.9" x 14.9" |
| Production Capacity | Up To 250 Units/hour* |
| Temperature Range | 0-450°F |
| Time Range | 0-999 |
| Shipping Size | 44.8" x39.7" x 78.7" |
| Air Requirements (CFM) | 4.2 CFM |
| Power Consumption | 2000W |
| Voltage | 220V |
| Amps | 10Amp |
| Machine Dimensions | 35.7" x 27.9" x 70.8" |
| Method of Operation | Pneumatic |
| Machine Line | Apex |
| Shipping Weight | 1232 lb |
| Net Weight | 920 lb |
| Color | Gray and White |
* Production capacity calculated using DTF film. Actual throughput varies by transfer, garment, and operator.
Every spec below exists for one reason: keeping garments moving.

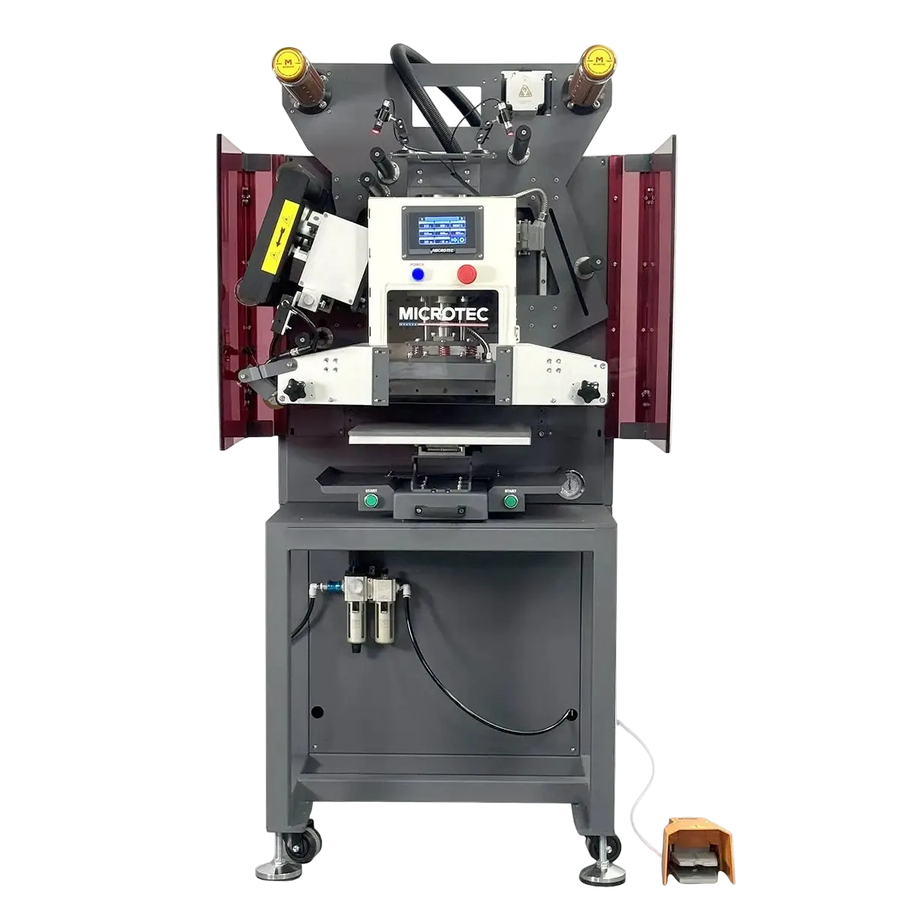

Automated cycles keep operators loading and unloading while the machine presses. The rated hourly capacity in Specifications is sustained output, not a burst number.
Digital controls hold your recipe cycle after cycle, so the thousandth garment presses like the first. No operator drift, no re-dialing between runs.
Industrial heating elements and calibrated platens keep edge-to-edge temperature true. Verify each model’s range in the Specifications table above.
Production machines from a 23-year heat press manufacturer, the same engineering running high-volume decoration floors worldwide, backed by US-based support.
Model throughput, price per piece, and labor. Then decide with numbers, not guesses.
Talk to an automation specialist
Not sure this is the right machine? Book 30 minutes. We will map your volumes, transfers, power, and air requirements.
Product details
High-ticket equipment decisions need more than a pretty gallery.
Here is how we reduce purchase risk.
Protect the investment
Lifetime heating-element coverage on TITAN & APEX. 5 years on VECTOR & ATLAS. 2-year standard warranty on every machine for other covered components. Confirm the full term on this product's specs or with your specialist.
→ Talk to supportKnow the logistics path
Commercial freight across the USA. Dimensions and shipping weight live in Specifications. Delivery coordination included.
→ Shipping infoNot alone after delivery
Match power, air, and workflow accessories so the line is production-ready faster, with operator guidance after delivery.
→ Book a callSpread the cost
Leasing and financing for qualifying equipment orders: from Shop Pay Installments under $30k to equipment-leasing partners for the full line. Keep capital free for inventory and growth.
View financingUS-based team · Industrial automation equipment · Support after delivery
Check the Specifications table on this page for voltage, amps, watts, and CFM (if pneumatic). When in doubt, book a call. We will confirm shop electrical and compressor capacity before you order.
Heat presses ship via commercial freight. Dimensions and shipping weight are listed in Specifications. You will receive tracking and delivery coordination for dock or residential delivery as applicable.
Use the ROI calculator above, compare platen size and production capacity, or schedule a free consult. Our team will map volume, garment mix, and budget to VECTOR / TITAN / ATLAS / APEX lines.
Yes. Financing options are available for qualifying orders. See our financing page or ask during checkout or consult.
US-based support can help with setup questions, parts, and troubleshooting. Keep your order number handy when you contact us.
US-based support helps you triage fast, and parts ship from the US. For production-critical lines, ask your specialist about spare-parts kits and response options before you buy.
Then don’t buy it yet. A Titan or ATLAS press may fit today’s volume, and the upgrade path is real. See the lineup below or take the 2-minute finder quiz.
Yes. That’s the point. Book a live production demo at our Orange, CA showroom or a virtual walkthrough, and we’ll run your artwork and transfers on the machine.
